Bilstein B8 8112 0.6-2.6″ Front Lift Coilovers ZoneControl CR for 2019-2025 Ram 1500 4WD/2WD

Sale!
Bilstein B8 8112 0.6-2.5" Front Lift Coilovers ZoneControl CR for 2019-2021 Ram 1500 4WD/2WD
Lift Amounts - Bilstein B8 8112 0.6-2.5 Front Lift Coilovers ZoneControl CR for 2019-2021 Ram 1500 4WD:2WD
Bilstein B8 8112 0.6-2.5" Front Lift Coilovers ZoneControl CR for 2019-2021 Ram 1500 4WD/2WD
Lift Amounts - Bilstein B8 8112 0.6-2.5 Front Lift Coilovers ZoneControl CR for 2019-2021 Ram 1500 4WD:2WD

Description
Bilstein B8 8112 0.6-2.6″ Front Lift Coilovers ZoneControl CR for 2019-2025 Ram 1500 4WD/2WD

Bilstein B8 8112 0.6-2.6″ Front Lift Coilovers ZoneControl CR for 2019, 2020, 2021, 2022, 2023, 2024, 2025 Ram 1500 4WD/2WD

Part: 41-325247 (old part number 41-242513)_41-325230 (old part number 41-242391)

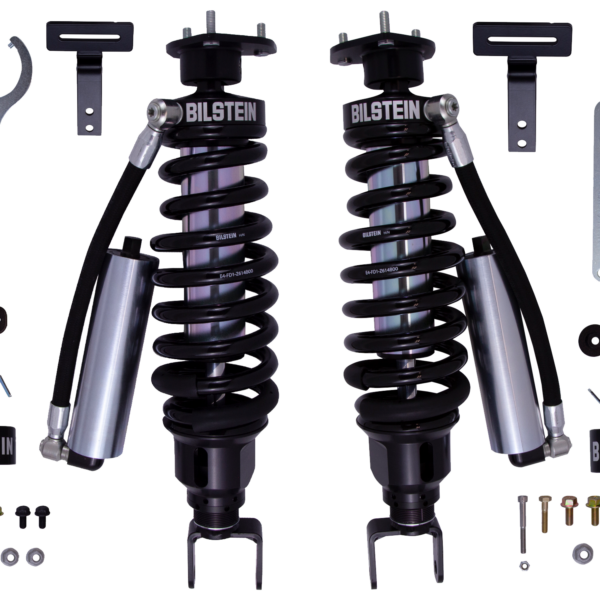

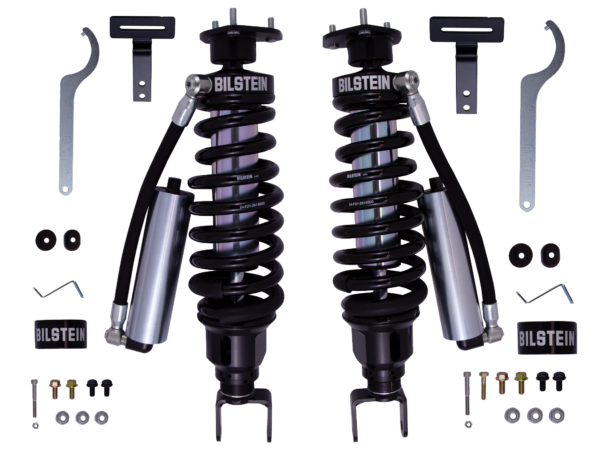

Includes: 2 Coilovers (left and right side specific) and necessary hardware

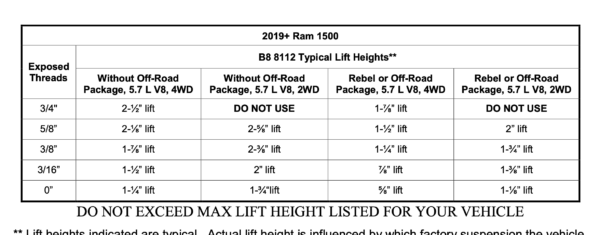

Use attached picture for lift amount reference.

Notes:

  • Ram 1500 2WD:
    Front Lift Height without factory Off-Road Package: 1.75-2.6″
    With factory Off-Road Package: 1.1-2″
  • Ram 1500 4WD
    Front Lift Height without factory Off-Road Package: 1.25-2.5″
    With factory Off-Road Package: 0.6-1.9″
  • Without Air Leveling Suspension
  • Fits models with V8 engine
  • Fits Vehicles with Front Coil

–Without Air Leveling Suspension

Product Description

Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

  • Collapsed Length (IN): 16.90
  • Extended Length (IN): 22.39
  • Collapsed Length (MM): 429.3
  • Extended Length (MM): 562.8
  • Finish: Dampers: Zinc Plated/Springs: Black
  • Reservoir: Yes
  • Body Design: Smooth Body (Coilover)
  • Body Diameter: 60mm
  • Adjustable Damping: Non-Adjustable

Additional information

Weight 70 lbs
Dimensions 17 × 13 × 7 in
ATTENTION STATE OF CALIFORNIA CONSUMERS. WARNING: Cancer and reproductive harm – www.p65warnings.ca.gov

Related products

Original price was: $3,146.59.Current price is: $2,860.54.

Drop Ships from Manufacturer

In stock

SKU: 41-325247_41-325230 Category: Brand:
