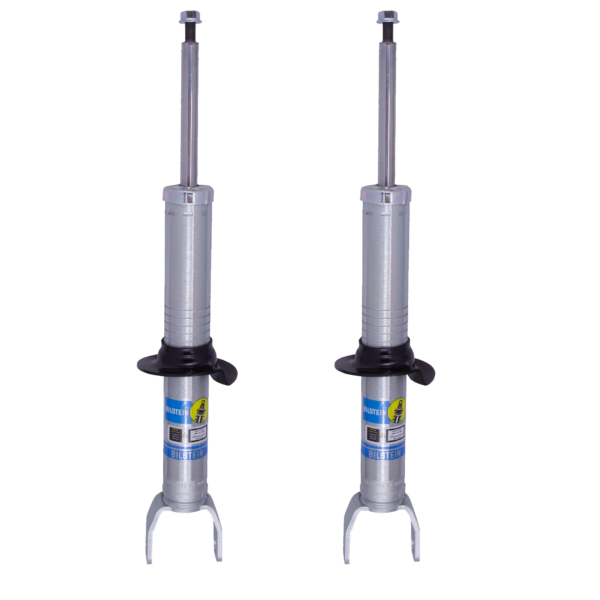

Bilstein B8 5100 0-2.6″ Front Lift Adjustable Shocks for 2019-2025 Ram 1500 New body style

SKU: 2x24-300872
(19 customer reviews)
Sale!
Bilstein B8 5100 0-2.6" Front Lift Adjustable Shocks for 2019-2021 Ram 1500 New body style
Bilstein B8 5100 0-2.6" Front Lift Adjustable Shocks for 2019-2021 Ram 1500 New body style

Description
Bilstein B8 5100 0-2.6″ Front Lift Adjustable Shocks for 2019-2025 Ram 1500 New body style

Bilstein B8 5100 0-2.6″ Front Lift Adjustable Shocks for 2019, 2020, 2021, 2022, 2023, 2024, 2025 Ram 1500 New body style

Part: 2×24-300872 (old: 2×24-232203)

Need them assembled?

Need a full kit?

Includes: 2 shocks

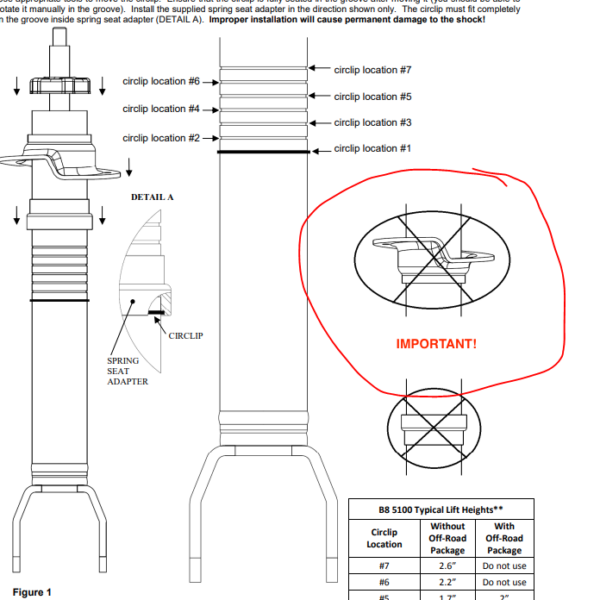

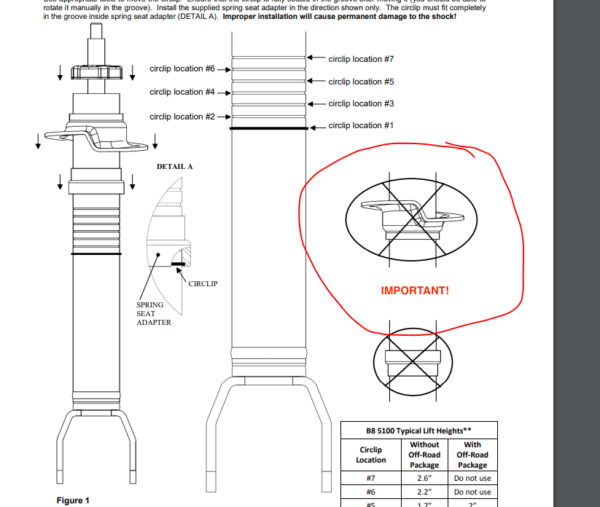

Fitment notes: For vehicles Without Air Suspension. Vehicles with Offroad package do not use top 2 circlip locations. Highest lift for Offroad package is 2″

Product Description

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

  • Collapsed Length (IN): 16
  • Extended Length (IN): 22.08
  • Collapsed Length (MM): 406.5
  • Extended Length (MM): 560.9
  • Finish: Zinc Plated
  • Reservoir: No
  • Body Design: Snap Ring Grooved Body (Coilover)
  • Body Diameter: 46mm

Includes Shocks exactly as pictured

Video Installation by one of our customers:



19 reviews for Bilstein B8 5100 0-2.6″ Front Lift Adjustable Shocks for 2019-2025 Ram 1500 New body style

  1. Keith B Shelton –

    Great price on a great product.
    Fast shipping.

  2. Dan Kneisler –

    Fast shipping, Shocks work perfect. My bouncing went away after install. 2019 Ram 1500 3.5 lift, replaced spring spacer for 5100. Still have 1.5 lift from “Tophat”

    Dank

  3. Greg Boehm –

    These are just right to improve handling- a bit firmer than stock but worth the trade-off. I raised the front an inch to lessen the rake.

  4. Chad H –

    Have only had them on for 1 day but they are as described. Easy to setup and install. Give the truck a pretty even level and respond well to the road. No more soft front end. You will feel a little more road but I definitely prefer how the truck responds now! Plus, you can’t beat the price!

  5. Josh –

    Excellent and affordable product. Ride quality and corner handling improved. 2020 big horn on setting 5 – just about a perfect level visually

  6. Kevin –

    Fast shipping! Looks great and didn’t change the factory ride a bit! I’ve had these struts on 5 different rams and I won’t level a truck with anything else!

  7. Matthew Herbstritt –

    Quick shipping on good quality struts. I installed them on my 2019 with ORP on position #4. Got pretty close to the 1.5” advertised for my application. Pleased with the outcome.

  8. Steve Bodiford –

    Was notified by bilsteinlifts.com that these were back in stock. I was able to order them the next morning and had them in 3 days. Installed on 2019 Rebel without the use of the Bilstein spring seat adaptor. The Rebel has one already made in to the spring housing. Achieved 1.8″ lift on setting 5.
    I am enjoying these more than the last 3 top puck style leveling kits that I used on other trucks. Yes, a firmer ride, but not like the puck kits that mount on top of the strut.

  9. Britt –

    Not only was shipping super fast, but this 5100 kit resolved a bunch of issues I was having with my previous spacer style leveling kit.

    The ride quality is top notch, exactly what you’d expect from Bilsteins.

    If you have a Rebel or Ram with ORP springs, this is the best way to level the truck.

  10. Shannon Derst –

    Installed on my 2020 Ram 1500 and I am extremely pleased with the end result! Customer service is also 5 stars, had a minor issue that they resolved very quickly!

  11. Paul Bardeleben –

    Great price and the shipping was super fast great service and product.

  12. William Westfall –

    Added the 5100s front and rear to my truck with off road package. Set at clip #5. Truck is level within 1/4”.

  13. John –

    Very fast shipment and had it installed days later. Excellent handling over stock 2019 Ram 1500 ORP struts. Rebound and compresses faster. No more nose dive during braking and of course slightly better handling. Thanks. Will shop again.

  14. Mike DeSaro –

    What an amazing product not only did it level out my truck! The ride is even better nice tight ride!! Love it!

  15. Brenton –

    I think the product might be good but these guys are selling old parts. My 2021 Ram 1500 was supposed to get the new part number (what I ordered) but I was sent the old one. The old part does not come with the new spring seat and the correct top nut. I only figured this out after paying a shop the $400 in labor to do the install so im out money even if they take the return. Go direct to Bilstein and save yourself the hassle.
    [admin: manufacturer just recently changed the design and kept the same part number]

  16. B T –

    Simple way to level or lift your truck. I went to the 4th notch for fear of 5 getting me too nose high and leaving my rear sagging after a few hundred pounds was added into the bed. To keep rake for loads I added a 1″ rear coil spacer. Love the added height and stance.

  17. Travis –

    Best way to level your RAM with the off road package. Spent a lot of time looking for a solution. Put my truck on setting 4 to leave a 3/4” of rake. Very pleased with the results!

  18. Alex –

    Incredible ride.

  19. Jim –

    I added a pair of the leveling shocks on the front of my new 2022 Ram 1500, to get rid of the factory rake. I have used Bilsteins in the past and was always happy. They leveled out my truck and ride as good or better than the factory shocks. The customer service was great and I’m a happy camper.
