Bilstein 5100 0-2.75″ Front Assembled Coilovers with 0-1″ Rear Lift Shocks and 1″ Rear Lift Coils for 2019-2024 Ram 1500 Classic 4WD

Bilstein 5100 0-2.75″ Front Assembled Coilovers + 0-1″ Rear Lift Shocks and 1″ Rear Lift Coils – 2019-2024 Ram 1500 Classic 4WD

Part: 5100R1500BS_n1

Give your 2019-2024 Ram 1500 Classic 4WD a proper leveled stance and tighter control with a matched Bilstein 5100 front and rear package plus Bilstein B12 1″ rear lift coils.
The front 5100s arrive pre-assembled with OE-style replacement coils and new top mounts, so you skip the spring compressor. Out back, 5100 rear shocks are paired with Bilstein B12 rear coils to provide about 1″ of rear lift and a stable, confident ride.

Need only front and rear (no rear coils)?

Bilstein 5100 0-2.75″ Front Assembled Coilovers and 0-1″ Rear Lift Shocks 2019-2024 Ram 1500 Classic 4WD

What’s Included

• Front (pre-assembled coilovers):
  • 2 x Bilstein 5100 ride-height-adjustable front struts 24-317887
  • OE-style replacement front coil springs installed on each strut
  • New top mounts, bushings, isolators, and mounting hardware
  • Ride height range: approximately 0-2.75″ front lift (clip position and load dependent)
  • No spring compressor needed – ready-to-bolt-in assemblies
• Rear shocks:
  • 2 x Bilstein 5100 rear shocks 24-187374
  • Valved and sized for 0-1″ rear lift components
• Rear lift coils:
  • 2 x Bilstein B12 rear lift coils 36-286539 (approx. 1″ rear lift on most Ram 1500 applications)

Front Bilstein 5100 Specs – 24-317887

• Series: 5100
• Extended length: 21.40 in
• Collapsed length: 15.12 in
• Design: snap-ring grooved body (coilover), monotube, nitrogen gas charged
• Piston: 46 mm digressive
• Ride height: adjustable for roughly 0-2.75″ of front lift

Rear Bilstein 5100 Specs – 24-187374

• Series: 5100
• Extended length: 26.73 in
• Collapsed length: 16.75 in
• Design: smooth body (non coilover), monotube, nitrogen gas charged, 46 mm piston
• Rear lift range supported: 0-1″ components (shocks do not add lift by themselves)

Bilstein B12 Rear Lift Coils – 36-286539

Bilstein B12 (Special) coils are designed to alter ride height and sharpen suspension response while keeping a controlled, OE-like feel.

• Approximate rear lift: around 1″ on most Ram 1500 applications
• Part of Bilstein’s B12 performance suspension line
• Matched to work with Bilstein 5100 rear shocks
• Improves stance, reduces sag under load compared to tired stock coils

Bilstein fitment reference: rear coils 36-286539 are listed for Ram 1500 2011-2022 and 1500 Classic 2019-2021. This package is targeted specifically at the 2019-2024 Ram 1500 Classic 4WD (fourth gen body style).

Fitment

• Vehicle: Ram 1500 Classic
• Model years: 2019, 2020, 2021, 2022, 2023, 2024 (Classic body, not the new DT chassis)
• Drivetrain: 4WD only
• Front lift range: up to about 2.75″ depending on clip position and front weight
• Rear lift: around 1″ from Bilstein B12 coils (plus up to 1″ supported by 5100 shock length)
• Exclusions: will not work on trucks with the TRX package or 2019+ non Classic Ram 1500

Why You’ll Like This Kit

• Leveling plus mild rear lift: front 5100 coilovers and 1″ rear coils give a controlled, usable stance for everyday use and light off road
• Pre-assembled fronts: coil springs, mounts, and hardware already installed – no spring compressor required
• Proven 5100 performance: 46 mm monotube digressive valving for better body control, less nose dive, and improved stability
• Bilstein matched system: B12 coils and 5100 shocks designed to work together instead of mixing random parts
• Great daily setup: keeps ride comfortable while adding control and tire clearance

Install And Processing Notes

• Select your desired front clip setting before installation to target your final ride height
• Professional alignment is required after changing front ride height
• Always verify tire clearance with your chosen tire size and wheel offset
• Assembly time: coilover assembly typically takes 3-9 days before shipping

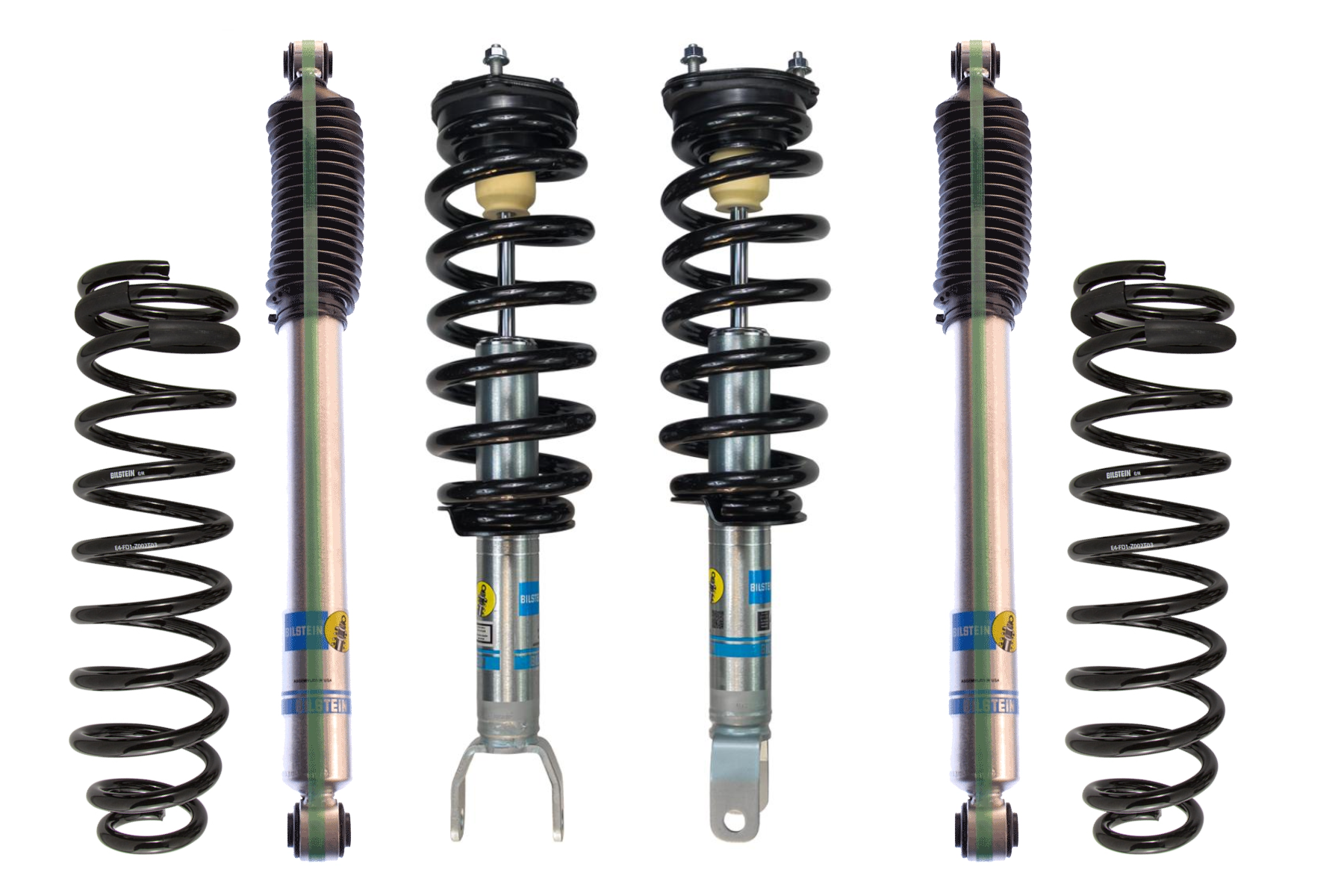

Includes: Front assembled coilovers, rear Bilstein 5100 shocks, and Bilstein B12 rear lift coils exactly as pictured.
