SuperLift 4″ Lift Kit For 2013-2018 Ram 3500 4WD – Diesel Engine – Replacement Radius Arms with Bilstein Shocks

Description
SuperLift 4″ Lift Kit For 2013-2018 Ram 3500 4WD – Diesel Engine – Replacement Radius Arms with Bilstein Shocks

SuperLift 4″ Lift Kit For 2013, 2014, 2015, 2016, 2017, 2018 Ram 3500 4WD – Diesel Engine – Replacement Radius Arms with Bilstein Shocks

Part: K144B

• This is a complete replacement radius arm suspension Lift Kit for the 2013-2018 Dodge Ram 3500 4WD – diesel engine; providing 4″ of lift height.
• Includes rear blocks and front and rear 5100 Series Bilstein shock absorbers.
• Covered by our Limited Lifetime Warranty.
• This kit also comes in a Superlift Superide shock option.

Include:

• Front lift includes 4″ coil springs, high clearance radius arms, track bar bracket, pitman arm, sway bar correction, bump stops, brake line brackets, Bilstein shocks, and all required hardware
• Rear lift includes a 2″ block kit, Bilstein shocks and all required hardware.
• Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation
• The best customer service and technical help in the industry.

PRODUCT DETAILS:

• Replacement front spring improve ride quality while rear coil spacers maintain load capacity
• Massive replacement tubular radius arms with Cleveite bushings
• Offset for additional clearance of larger tires
• Radius arms offer maximum ground clearance
• Radius arms feature a “true flat” jack point surface
• Track bar relocation bracket prevents stud bind and steering wheel kick
• Pitman arm relieves drag link angle to prevent bump steer / wandering
• Bilstein Shocks are included, for all four corners, with this kit
• Limited Lifetime Warranty

TIRE & WHEEL INFO:

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers’ wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Installation Notes:

• Installation time: 7 hours
• Difficulty level: 3 of 5

DOES IT WORK ON A DUALLY?

The kit works for the front on a dually. The primary issue with dually trucks is the rear u-bolts. We have to confirm axle tube diameter and length required and see if we have a u-bolt available, or, if they will have to be made at a shop near you.

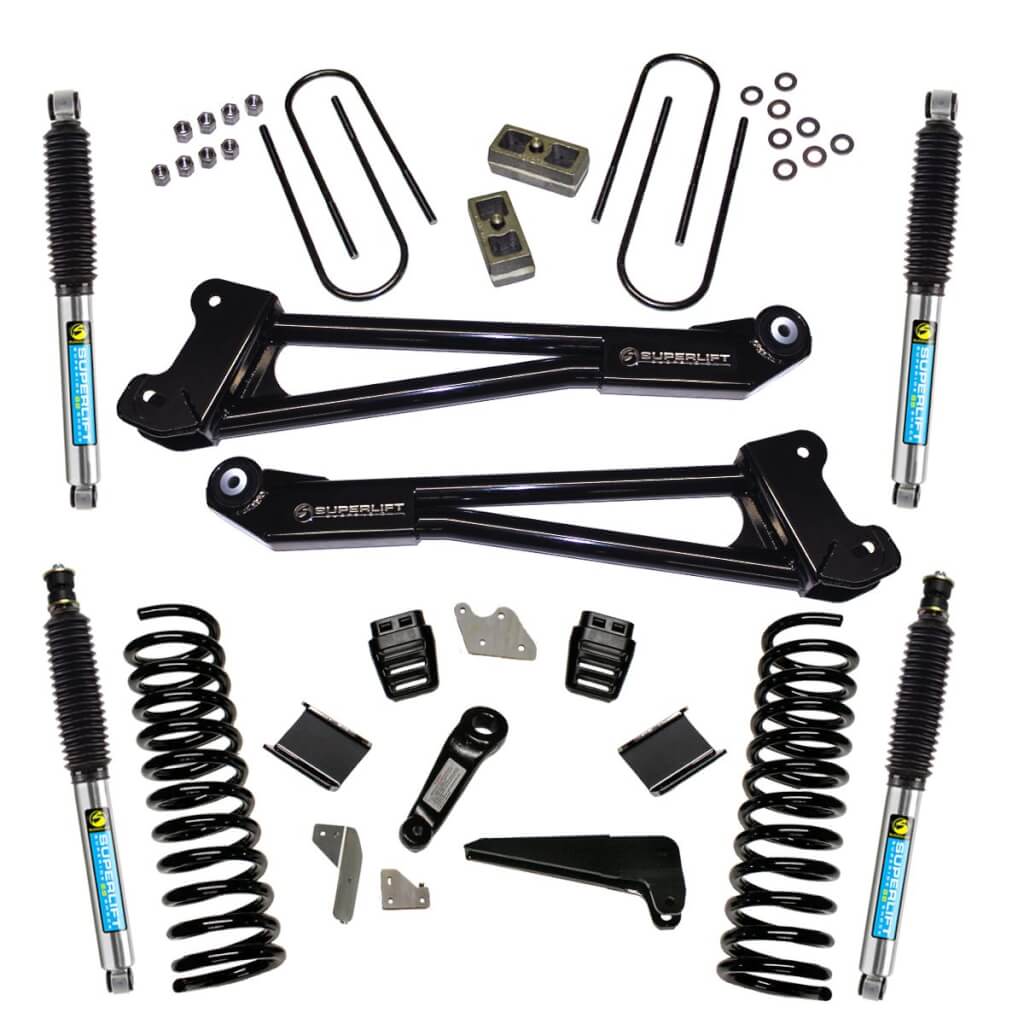

Includes Shocks exactly as pictured
