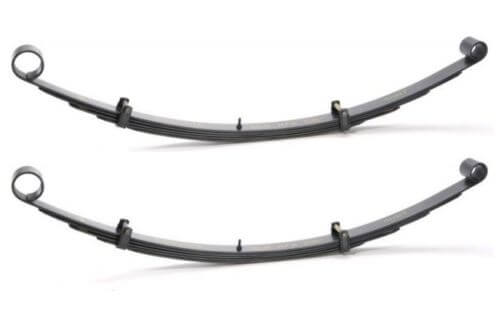

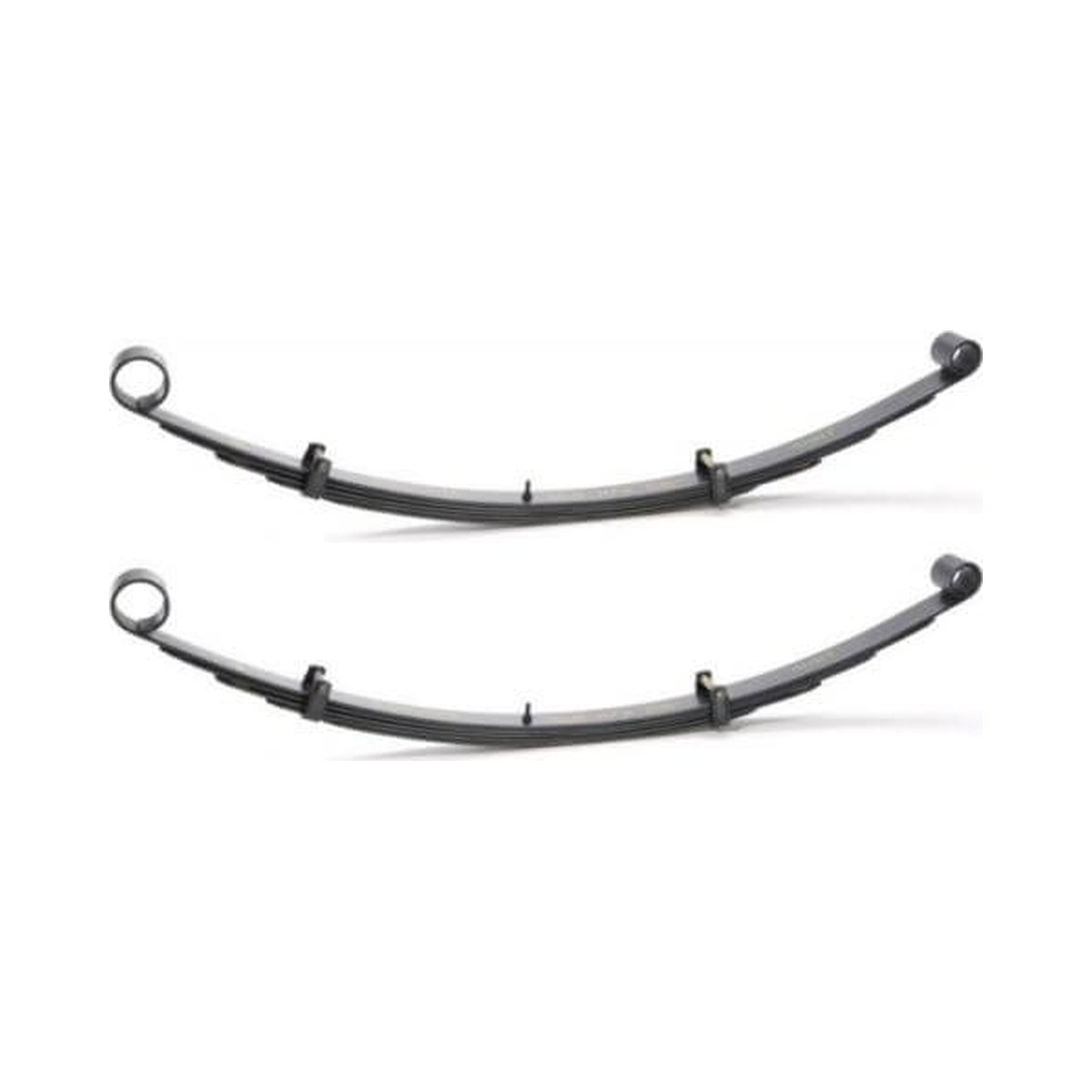

ARB CS012FA 1-1.5″ Front Lift Pair of OME Leaf Springs for 1986-1995 Suzuki Samurai

• Draw Tapered And Diamond Cut Leaves: Ensure The Load Is Progressively Distributed Over A Larger Surface Area, Reducing The High Stresses That Develop At Leaf Ends, Provides Increased Ride Quality
• Fully Scragged And Load Tested: Scragging Ensures The Spring Takes A Permanent ‘Set’ Which Reduces The Risk Of Sagging, Load Testing Ensures The Spring Meets The Required Specification
• Two-Stage Leaf Pack: Featured On Most Rear Springs For Optimum Comfort, Unladen The Vehicle Is Largely Riding On The Primary Stage, With The Secondary Stage Providing Additional Support
• Military Wrap: Designed To Provide Added Safety. Shot Peening: The Tension Side Of All Leaves Is Shot Peened To Reduce Spring Stress, Process Can Double The Life Of A Spring
• Anti Friction Pads: Regreasable Nylon Interleaf Liners Reduce Friction At The Leaf Tips Where The Load Is The Greatest
• Flat Axle Seat Area: Allows A Positive, Safe Axle Mount Reducing Spring Stress And Increasing Spring Life
• Bolt Clamps And Liners: The Leaf Clamps Are Bolted To Allow Installation Of Anti Squeak Nylon Liners
• Limited 2 Year Warranty

Fits:

• DROVER ALL MODELS (NOT USA MANUFACTURED MODEL) (Front)
  Estimated Lift: 40mm
• SIERRA / SAMURAI ALL LEAF SPRING MODELS (SJ413) (Front)
• 2 OPTIONS: 0-55LB and 55LB-125LB.
  Estimated Lift: 40mm
  STD TRACK : 1984 – 1988                           WIDE TRACK : 1988 – 1996
  SJ50 – SWB                                                     SJ70 – SWB (also fits MG410)
  SJ51 – LWB                                                     SJ71 – LWB (also fits MG410WT)
  Note: MG410 & MG10WT are Indian built LWB Models.
  (IMPORTANT: Sierras used in extreme heavy off road conditions eg., station mustering, must have CS013FA + B installed.)
• SANTANA SAMURAI TO 2004 SWB & LWB MODELS (Front)
  Estimated Lift: 30 – 40mm
  (Front: LHS: OMEU60 x 2, RHS: OMEU61B x 2 required when fitting CS013FA/B
  Rear: OMEU60 x 4 required when fitting CS039R)

CS012FB – stock light/load (i.e. no bumper/winch up front)
CS012FA – medium load (55-125lbs additional weight up front)
CS013FA – heavy load (125-200lbs additional weight up front)
