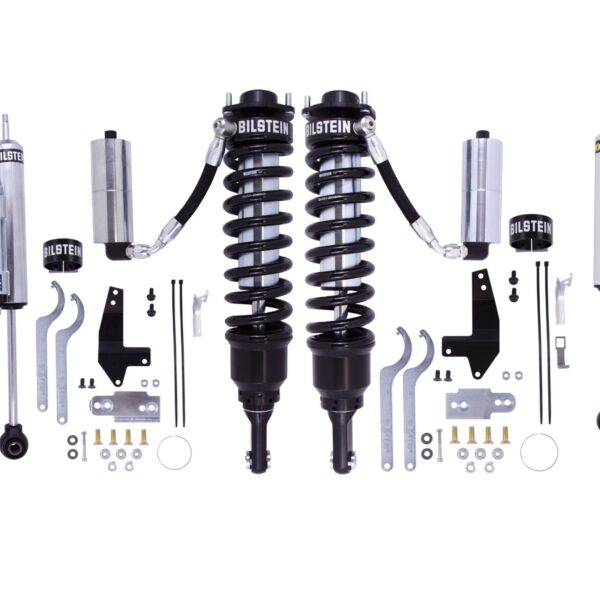

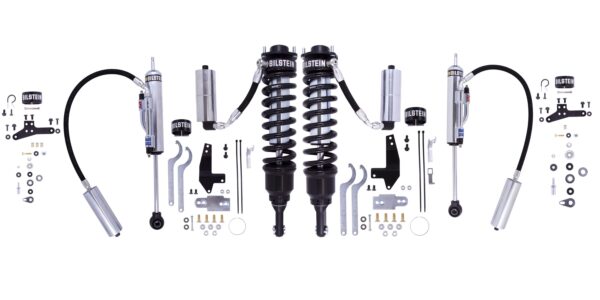

Bilstein B8 8112 0-3.4″ Lift Kit For 2003-2009 Toyota 4Runner 2WD/4WD

Sale!
Bilstein B8 8112 0-3.4" Lift Kit For 2003-2009 Toyota 4Runner 2WD/4WD
Bilstein B8 8112 0-3.4" Lift Kit For 2003-2009 Toyota 4Runner 2WD/4WD

Description
Bilstein B8 8112 0-3.4″ Lift Kit For 2003-2009 Toyota 4Runner 2WD/4WD

Bilstein B8 8112 0-3.4″ Lift Kit For 2003, 2004, 2005, 2006, 2007, 2008, 2009 Toyota 4Runner 2WD/4WD

Part: 41-284834_41-284827_25-284584_25-284591

Important Note: Will not fit 2003-2009 4Runner Sport sub-model. If you still choose to buy – you will get less lift.

Front Coilovers:

Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

  • Collapsed Length (IN): 17.99
  • Extended Length (IN): 22.80
  • Collapsed Length (MM): 456.9
  • Extended Length (MM): 579.1
  • Finish: Dampers: Zinc Plated/Springs: Black
  • Reservoir: Yes
  • Aftermarket Upper Arms Required: No
  • Body Design: Smooth Body (Coilover)
  • Body Diameter: 60mm
  • Adjustable Damping: Non-Adjustable
  • Optional Heavy Load Springs: 53-291387

Notes:

  • Front Lift Height: 2.2-3.3″
  • Without X-REAS Suspension
  • Fits models with V6 engine
  • Fits 4WD
  • Front Lift Height: 2.8-4″
  • Fits RWD
  • Front Lift Height: 1.3-3.4″
  • Fits models with V8 engine

Rear Shocks:

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.

  • Collapsed Length (IN): 14.72
  • Extended Length (IN): 24.09
  • Collapsed Length (MM): 374.0
  • Extended Length (MM): 612.0
  • Finish: Zinc Plated
  • Reservoir: Yes
  • Body Design: Bypass Body (Non-Coilover)
  • Body Diameter: 60mm
Notes:
  • For Rear Lifted Height: 0.9-2.3″ 4WD (2003-2009 LIMITED, SR5)
  • Without X-REAS Suspension
  • Fits 4WD
  • For Rear Lifted Height: 1.7-2.5″ RWD (2003-2009 LIMITED, SR5)
  • Fits RWD
  • For Rear Lifted Height: 0-1.5″ 4WD (2010-2020 SR5, 2018-2020 SR5 PREMIUM, 2010-2016 TRAIL, 2017-2020 TRD OFF-ROAD, 2018-2020 TRD OFF-ROAD PREMIUM, 2015-2020 TRD PRO, 2020 VENTURE)
  • For Rear Lifted Height: 0.9-2″ RWD (2010-2020 SR5, 2018-2020 SR5 PREMIUM)

Additional information

Weight 90 lbs
Dimensions 33.5 × 12 × 10 in
ATTENTION STATE OF CALIFORNIA CONSUMERS. WARNING: Cancer and reproductive harm – www.p65warnings.ca.gov
