Bilstein 0-2.5″ Lift Kit With Rear Coils For 2003-2009 Toyota 4Runner

Sale!
Bilstein 0-2.5" Lift Kit With Rear Coils For 2003-2009 Toyota 4Runner
Bilstein 0-2.5" Lift Kit With Rear Coils For 2003-2009 Toyota 4Runner

Description
Bilstein 0-2.5″ Lift Kit With Rear Coils For 2003-2009 Toyota 4Runner

Bilstein 0-2.5″ Lift Kit With Rear Coils For 2003, 2004, 2005, 2006, 2007, 2008, 2009 Toyota 4Runner

Part: BK4R09

Front 24-324359 (old: 24-239370) height adjustable 5100 shocks provide 0 to 2 1/2″ lift

Collapsed Length (IN): 17.03
Extended Length (IN): 22.59
Collapsed Length (MM): 432.5
Extended Length (MM): 573.7
Finish: Zinc Plated
Reservoir: No
Body Design: Snap Ring Grooved Body (Coilover)
Body Diameter: 46mm
Adjustable Damping: Non-Adjustable



Rear 33-313146 (old: 33-187174) 5100 shocks work with  0″ to 2″ lift

Collapsed Length (IN): 14.91
Extended Length (IN): 23.03
Collapsed Length (MM): 378.8
Extended Length (MM): 585.0
Finish: Zinc Plated
Reservoir: No
Body Design: Smooth Body (Non-Coilover)
Body Diameter: 46mm
Adjustable Damping: Non-Adjustable



Notes:
Front lift is achieved by the adjustment of the front shocks. Stock front coils need to be reused.



Rear Coil Springs (Bilstein Brand):
Rear Coil Springs 36-281817
4Runner 2WD – Rear Lift Height: 1.8″
4Runner 4WD – Rear Lift Height: 1.75″
or
Rear Coil Springs 36-281824
4Runner 2WD – Rear Lift Height: 2.25″
4Runner 4WD – Rear Lift Height: 2.3″
or
Rear Coil Springs Heavy Load Package 400 Pound Constant Weight 36-281831
4Runner 2WD – Rear Lift Height: 2.5″
4Runner 4WD – Rear Lift Height: 2.2″

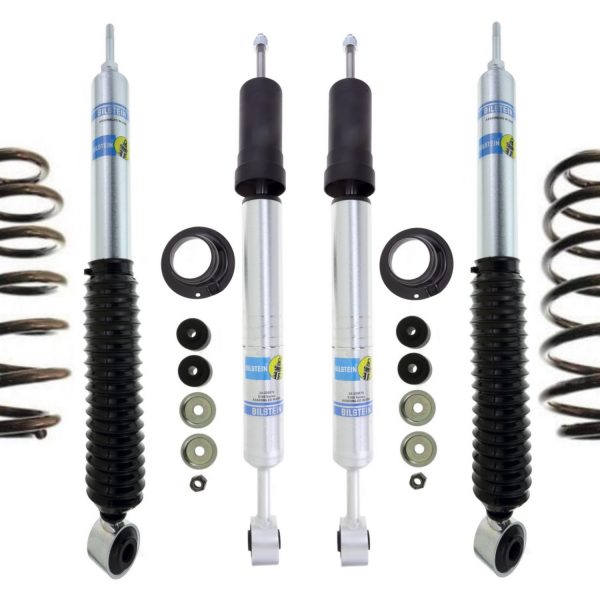

Includes Shocks exactly as pictured

We have other rear coil options available, please message us if you are interested.

Interested in full lift kit?

Additional information

Weight 38.18 lbs
Dimensions 17 × 13 × 7 in
