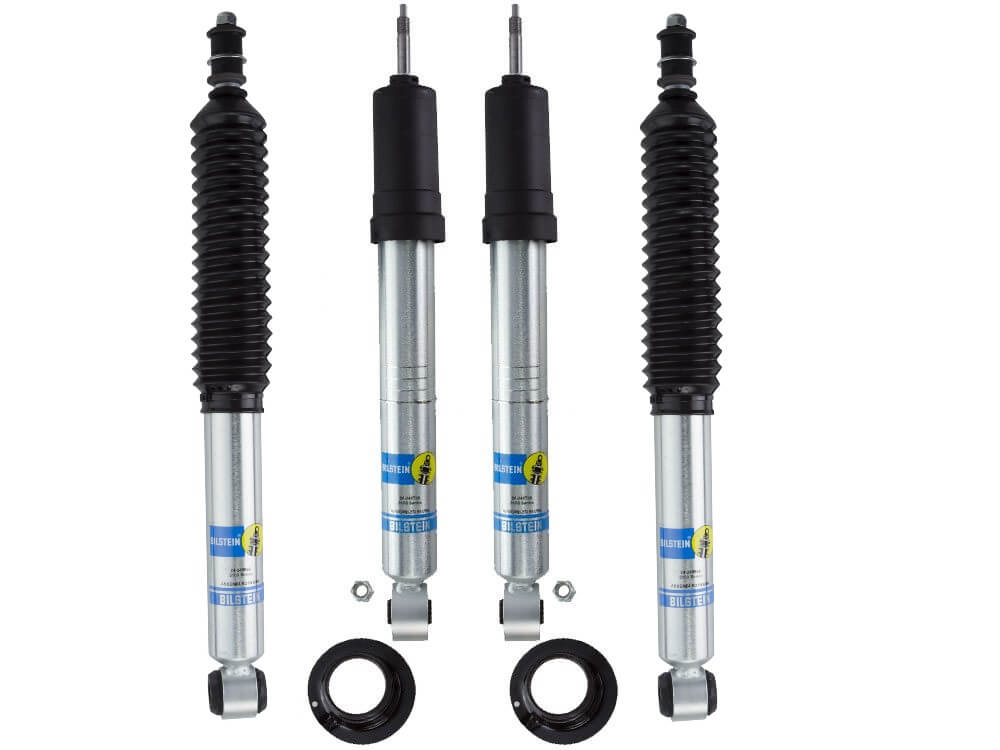

Bilstein 5100 0-2.3″ Lift Front, Rear Shocks for 1996-2002 Toyota 4Runner

Sale!
Bilstein 5100 0-2.3" Lift Front, Rear Shocks for 1996-2002 Toyota 4Runner
Bilstein 5100 0-2.3" Lift Front, Rear Shocks for 1996-2002 Toyota 4Runner

Description
Bilstein 5100 0-2.3″ Lift Front, Rear Shocks for 1996-2002 Toyota 4Runner

Bilstein 0-2.3″ Height Adjustable Front Lift & 0-2.3″ Rear Lift Shocks for 1996, 1997, 1998, 1999, 2000, 2001, 2002 Toyota 4Runner 4WD/2WD

BILSTEIN B8 5100 series are designed specifically to help your lifted truck, Jeep or SUV reach its pinnacle in ride performance, while supplying the correct tuning and length for your specific lift.

Part: 2×24-248730-2×24-249966

Need them assembled?

Front: 24-248730

  • Extended Length (IN): 18.27 Inch
  • Compressed Length (IN): 13.66 Inch
  • Upper Mounting Style: Eyelet
  • Lower Mounting Style: Cross Pin

Rear: 24-249966

  • Extended Length (IN): 20.79 Inch
  • Compressed Length (IN): 12.91 Inch
  • Upper Mounting Style: Stud
  • Lower Mounting Style: Eyelet



  • An Extremely Affordable And Practical Alternative To Coil Spring Spacers
  • Superior Monotube Design
  • Utilizes The Vehicle’s Stock Front Coil Springs
  • Zinc Finish With Multi-Layer Unique BILSTEIN Coating For Extreme Protection
  • Self-Adjusting Deflective Disc Valving With Independent Rebound And Compression Tuning
  • Limited Lifetime Warranty





TYPICAL FRONT LIFT HEIGHT**
snap ring

location #

 with 2″ lift rear coil

spring installed

(Rate = 220lb/in)

 with 1.5″ lift rear

coil spacers

installed

 with OE rear

coil springs
1 stock stock stock
2 0.78″ 0.53″ 0.63″
3 1.61″ 1.05″ 1.25″
4 2.3″ Do NOT use 1.88″

** Ride heights indicated are typical. Actual ride height is influenced by which factory suspension the vehicle is equipped with and its condition; optional equipment and accessories on your vehicle, and other vehicle modifications such as replacement coil springs, wheel and tire combinations, etc.
Modifying/lifting the suspension to your vehicle may raise its center of gravity and may make it more susceptible to loss of control and/or rollover, which may result in death or serious injury. We strongly recommend that you offset the loss of rollover resistance as much as possible by increasing tire track width, and that you equip the vehicle with a functional roll bar and cage system.

Wear seat belts and shoulder harnesses at all times, and avoid situations where a side rollover may occur.

Frequently bought together with:

Interested in a full kit?

Includes 4 Shocks

Additional information

Weight 20 lbs
Dimensions 28 × 8 × 8 in
