Bilstein 0-2.5″ Lift Kit With Rear Coils For 2010-2024 Toyota 4Runner

Bilstein 0-2.5" Lift Kit With Rear Coils For 2010-2023 Toyota 4Runner
Bilstein 0-2.5" Lift Kit With Rear Coils For 2010-2023 Toyota 4Runner

Description
Bilstein 0-2.5″ Lift Kit With Rear Coils For 2010-2024 Toyota 4Runner

Bilstein 0-2.5″ Lift Kit With Rear Coils For 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023 Toyota 4Runner

Part: 24-328258_33-187174+Rr-Coils_4R

Need it assembled?

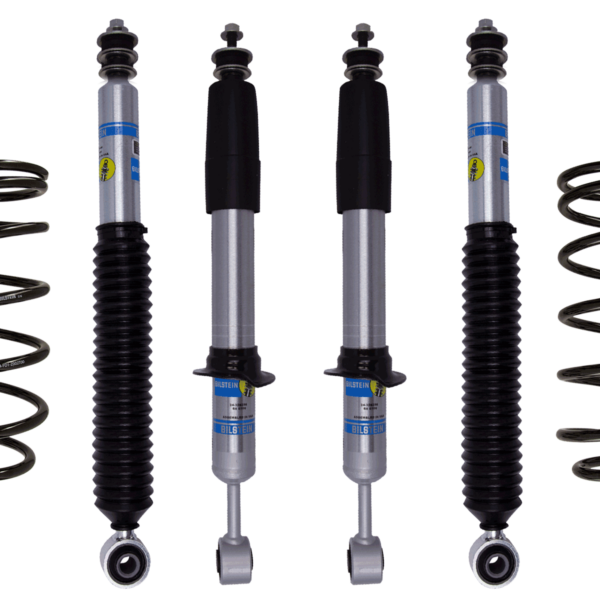

The Bilstein 0-2.5″ Lift Kit with Rear Coils is the perfect solution for your 2010-2023 Toyota 4Runner. This kit includes height adjustable 5100 shocks for the front (24-328258) and rear (33-313146) of your vehicle.

Bilstein 5100 Shocks:

The Bilstein 5100 shocks are height adjustable and provide a lift range of 0-2.5″ for the front of your vehicle, and 0-2″ for the rear. These shocks are engineered to provide superior handling, stability, and comfort, even under heavy loads or off-road conditions. The 5100 series shocks are made with the highest quality materials and are rigorously tested to ensure durability and long-lasting performance.

Front Shocks:

  • Part Number: 24-328258
  • Height Adjustable: 0-2.5″ Lift
  • Extended Length: 22.48 Inch
  • Compressed Length: 17.58 Inch

Rear Shocks:

  • Part Number: 33-313146
  • Height Adjustable: 0-2″ Lift
  • Extended Length: 23-1/2 Inch
  • Compressed Length: 14.91 Inch
  • Rod Diameter: 1.81 Inch
  • Upper Mounting Style: Stem
  • Lower Mounting Style: Eyelet

Rear Coil Springs:

The rear coils are available in three options to best suit your needs:

  1. Rear Coil Springs 36-281817:
  • Toyota 4Runner 2WD: Rear Lift Height: 1.5″
  • Toyota 4Runner 4WD: Rear Lift Height: 1″
  1. Rear Coil Springs 36-281824:
  • Toyota 4Runner 2WD: Rear Lift Height: 2″
  • Toyota 4Runner 4WD: Rear Lift Height: 1.5″
  1. Rear Coil Springs Heavy Load Package 400 Pound Constant Weight 36-281831:
  • Toyota 4Runner 2WD: Rear Lift Height: 2″
  • Toyota 4Runner 4WD: Rear Lift Height: 1.5″

Note: This kit does not include X-REAS Suspension and the front lift is achieved by the adjustment of the front shocks. The stock front coils must be reused. The kit includes shocks exactly as pictured.

Additional information

Weight 50 lbs
Dimensions 30 × 12 × 10 in
