Bilstein 0-2.5″ Lift Kit With Rear Coils For 2007-2009 Toyota FJ Cruiser

SKU: BKFJ09
(1 customer review)
Sale!
Bilstein 0-2.5" Lift Kit With Rear Coils For 2007-2009 Toyota FJ Cruiser
Bilstein 0-2.5" Lift Kit With Rear Coils For 2007-2009 Toyota FJ Cruiser

Description
Bilstein 0-2.5″ Lift Kit With Rear Coils For 2007-2009 Toyota FJ Cruiser

Bilstein 0-2.5″ Lift Kit With Rear Coils For 2007, 2008, 2009 Toyota FJ Cruiser

Part: BKFJ09

Front 24-324359 (old: 24-239370) height adjustable 5100 shocks provide 0 to 2 1/2″ lift

Collapsed Length (IN): 17.03
Extended Length (IN): 22.59
Collapsed Length (MM): 432.5
Extended Length (MM): 573.7
Finish: Zinc Plated
Reservoir: No
Body Design: Snap Ring Grooved Body (Coilover)
Body Diameter: 46mm
Adjustable Damping: Non-Adjustable



Rear 33-313146 (old: 33-187174) 5100 shocks work with  0″ to 2″ lift

Collapsed Length (IN): 14.91
Extended Length (IN): 23.03
Collapsed Length (MM): 378.8
Extended Length (MM): 585.0
Finish: Zinc Plated
Reservoir: No
Body Design: Smooth Body (Non-Coilover)
Body Diameter: 46mm
Adjustable Damping: Non-Adjustable



Notes:
Front lift is achieved by the adjustment of the front shocks. Stock front coils need to be reused.



Rear Coil Springs:
Rear Coil Springs 36-281817
FJ Cruiser 2WD – Rear Lift Height: 1.7″
FJ Cruiser 4WD – Rear Lift Height: 0.9″
or
Rear Coil Springs 36-281824
FJ Cruiser 2WD – Rear Lift Height: 2.4″
FJ Cruiser 4WD – Rear Lift Height: 1.5″
or
Rear Coil Springs Heavy Load Package 400 Pound Constant Weight 36-281831
FJ Cruiser 2WD – Rear Lift Height: 2.3″
FJ Cruiser 4WD – Rear Lift Height: 1.45″

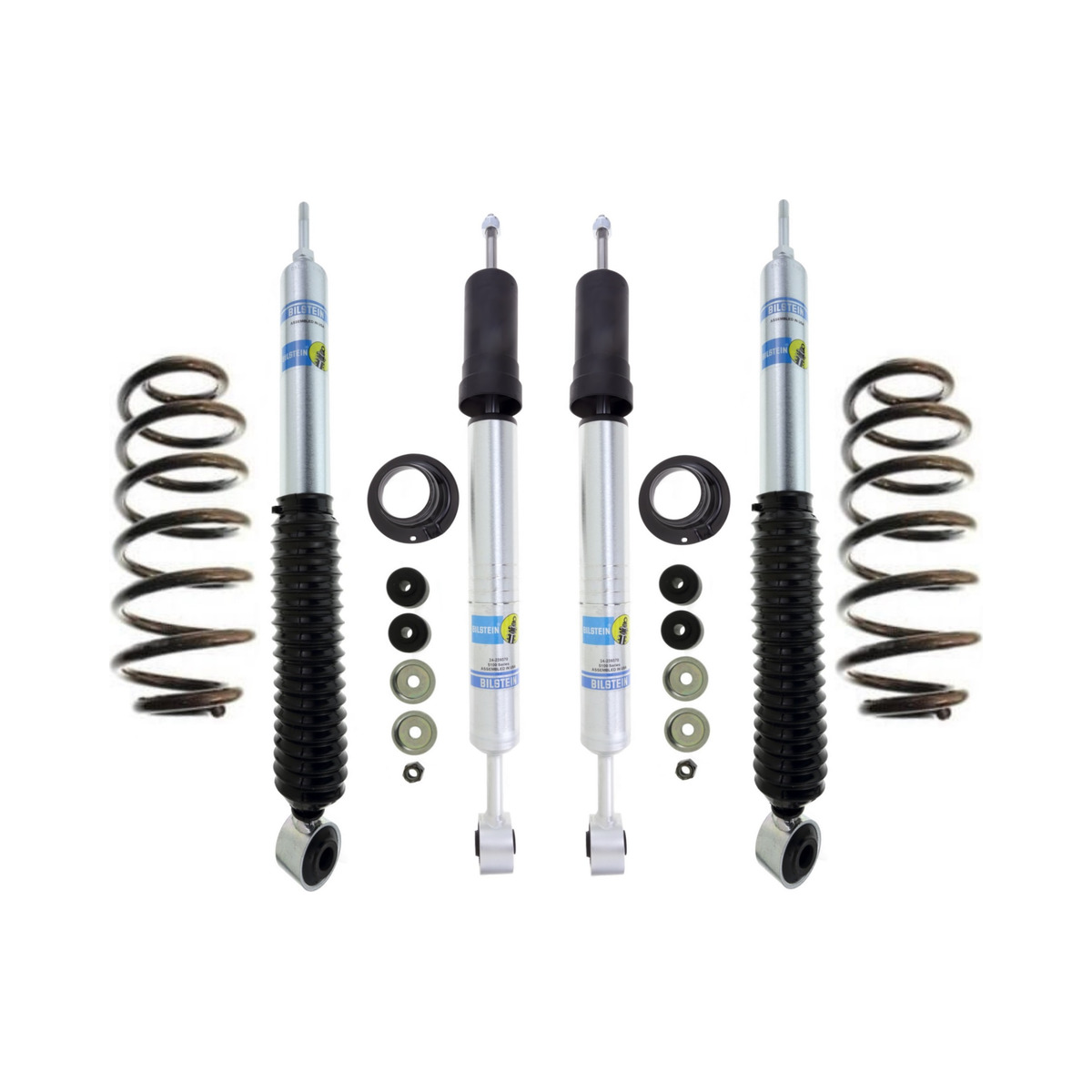

Includes Shocks exactly as pictured

We have other rear coil options available, please message us if you are interested.
