Bilstein 0-2.5″ Lift Kit With Rear Coils For 2010-2014 Toyota FJ Cruiser

Description
Bilstein 0-2.5″ Lift Kit With Rear Coils For 2010-2014 Toyota FJ Cruiser

Bilstein 0-2.5″ Lift Kit With Rear Coils For 2010, 2011, 2012, 2013, 2014 Toyota FJ Cruiser

Part: 24-328258_33-187174+Rr-Coils_Fj

The Bilstein 0-2.5″ Lift Kit with Rear Coils is the perfect solution for your 2010-2014 Toyota FJ Cruiser. This kit includes height adjustable 5100 shocks for the front (24-328258) and rear (33-313146) of your vehicle.

Bilstein 5100 Shocks:

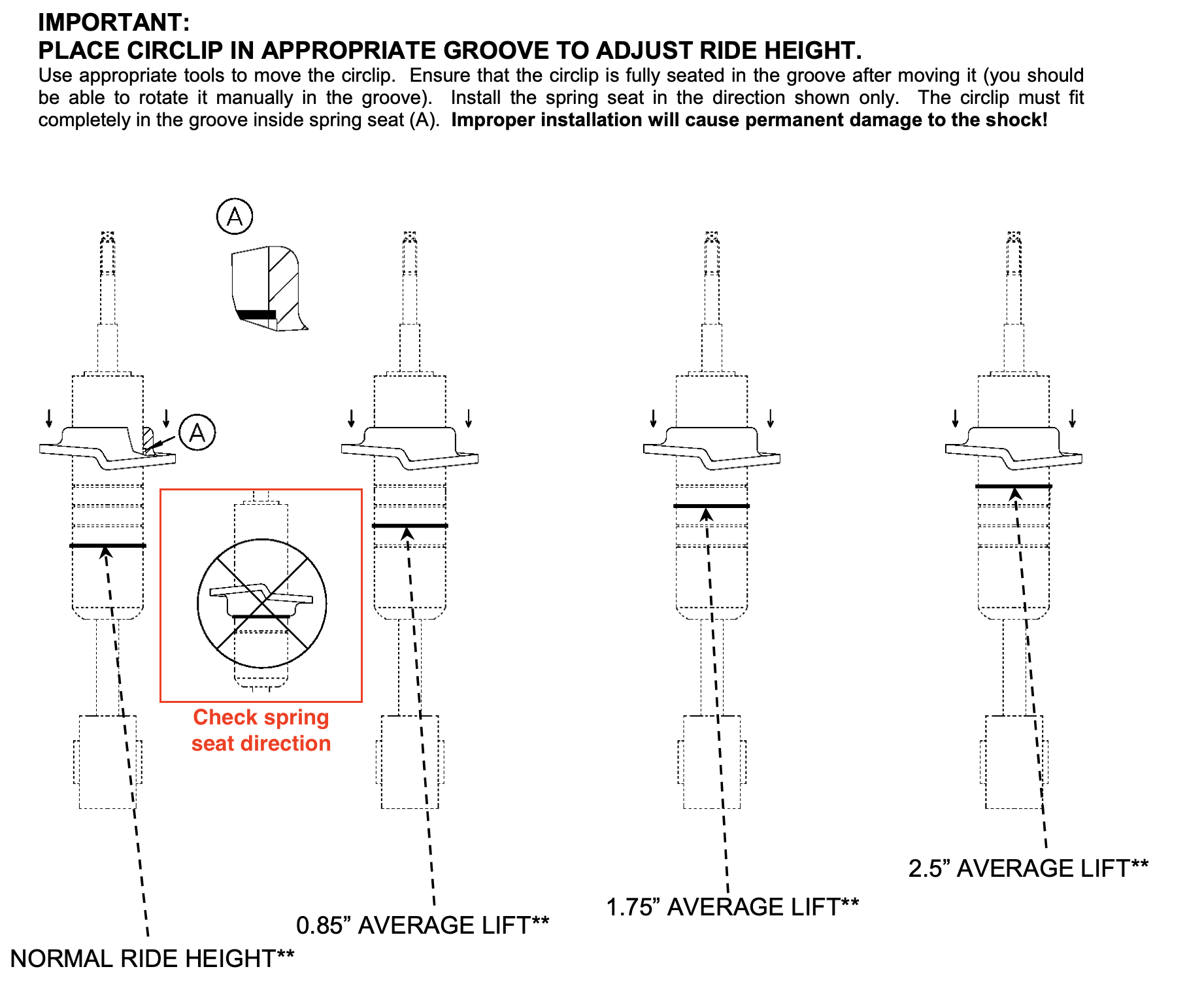

The Bilstein 5100 shocks are height adjustable and provide a lift range of 0-2.5″ for the front of your vehicle, and 0-2″ for the rear. These shocks are engineered to provide superior handling, stability, and comfort, even under heavy loads or off-road conditions. The 5100 series shocks are made with the highest quality materials and are rigorously tested to ensure durability and long-lasting performance.

Front Shocks:

• Part Number: 24-328258
• Height Adjustable: 0-2.5″ Lift
• Extended Length: 22.48 Inch
• Compressed Length: 17.58 Inch

Rear Shocks:

• Part Number: 33-313146
• Height Adjustable: 0-2″ Lift
• Extended Length: 23-1/2 Inch
• Compressed Length: 14.91 Inch
• Rod Diameter: 1.81 Inch
• Upper Mounting Style: Stem
• Lower Mounting Style: Eyelet

Rear Coil Springs:

The rear coils are available in three options to best suit your needs:

1. Rear Coil Springs 36-281817:

• FJ Cruiser 2WD: Rear Lift Height: 1.7″
• FJ Cruiser 4WD: Rear Lift Height: 0.9″

2. Rear Coil Springs 36-281824:

• FJ Cruiser 2WD: Rear Lift Height: 2.4″
• FJ Cruiser 4WD: Rear Lift Height: 1.5″

3. Rear Coil Springs Heavy Load Package 400 Pound Constant Weight 36-281831:

• FJ Cruiser 2WD: Rear Lift Height: 2.3″
• FJ Cruiser 4WD: Rear Lift Height: 1.45″

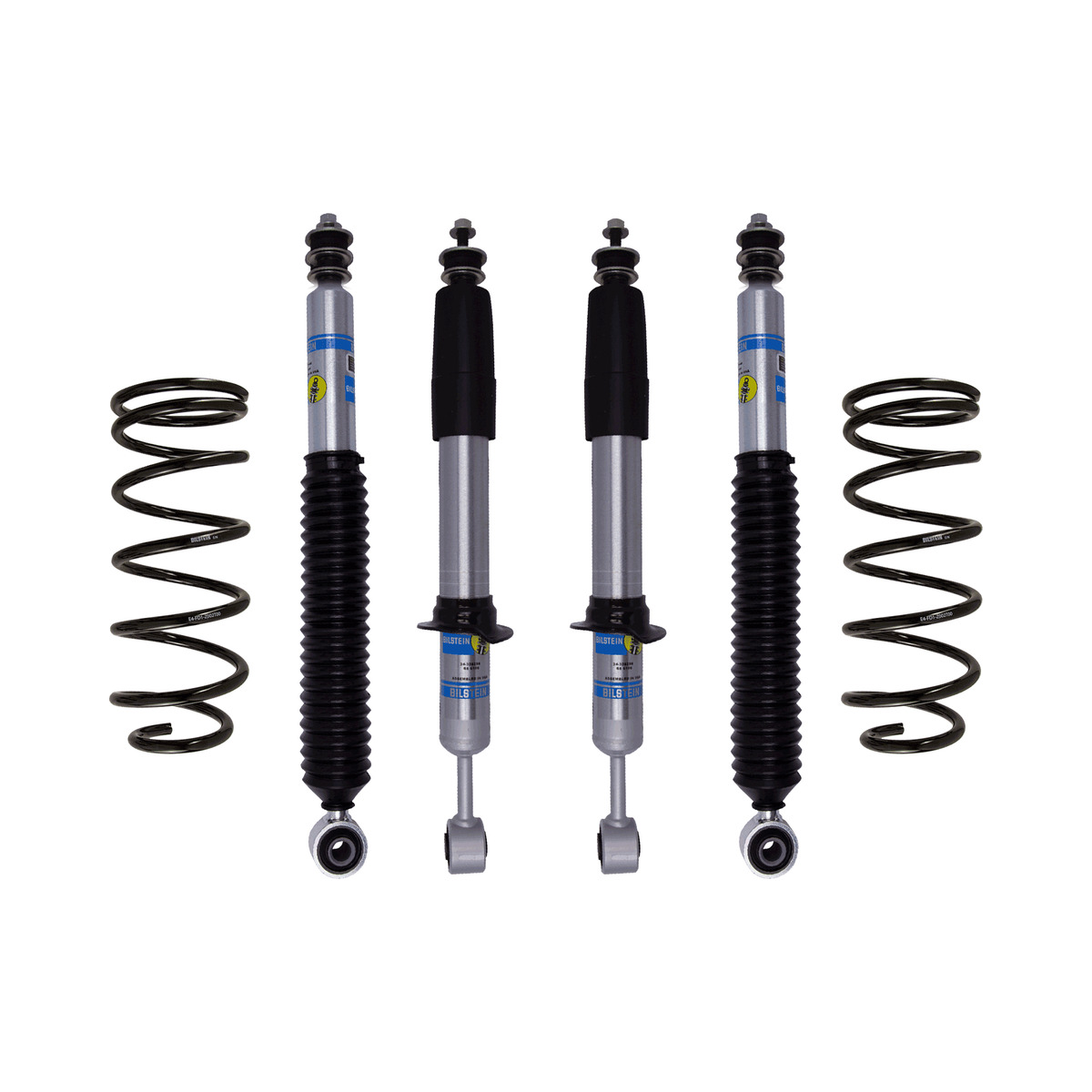

Note: This kit does not include X-REAS Suspension and the front lift is achieved by the adjustment of the front shocks. The stock front coils must be reused. The kit includes shocks exactly as pictured.
