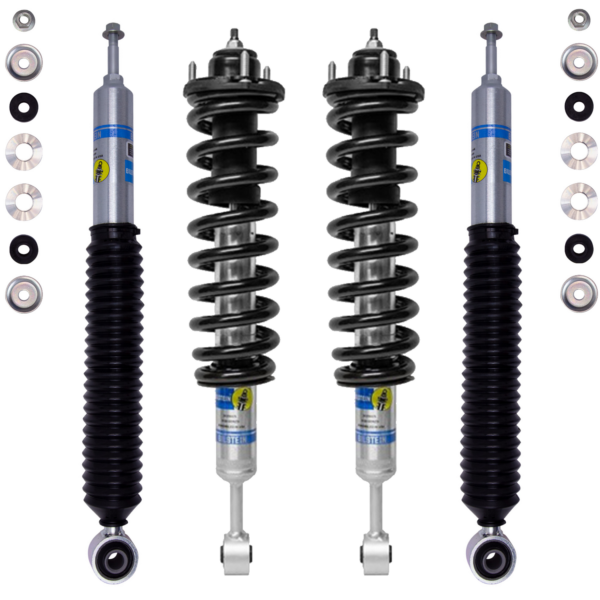

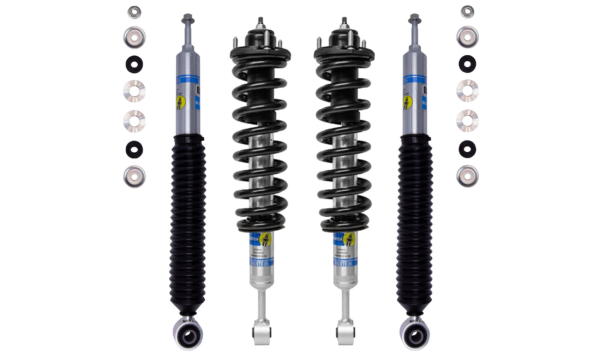

Bilstein/OME 2.5″ Lift 5100 Assembled Coilovers and 0-2″ Rear Lift Shocks for 2010-2014 Toyota FJ Cruiser

Sale!
Bilstein-OME 2.5 Lift 5100 Assembled Coilovers and 0-2- Rear Lift Shocks for 2010-2014 Toyota FJ Cruiser
Bilstein-OME 2.5 Lift 5100 Assembled Coilovers and 0-2- Rear Lift Shocks for 2010-2014 Toyota FJ Cruiser

Description
Bilstein/OME 2.5″ Lift 5100 Assembled Coilovers and 0-2″ Rear Lift Shocks for 2010-2014 Toyota FJ Cruiser

Bilstein 2.5″ Lift 5100 Assembled Coilovers and 0-2″ Rear Lift Shocks for 2010, 2011, 2012, 2013, 2014 Toyota FJ Cruiser

Part: BILFJ10C_2x33-313146

Coilovers are assembled with ARB/OME Front Coils.

Front 24-328258 (old: 24-196499) height adjustable 5100 shocks assembled with OME coils (choose from drop down)

Extended Length (IN): 22.48 Inch
Compressed Length (IN): 17.58 Inch

Coilovers are assembled on the bottom setting because the front coils already provide lift. Setting the shocks higher will damage the suspension and void the warranty.

Rear Shock Specifications: (part number 2×33-313146)

Includes 2 Shocks

Collapsed Length (IN)14.91
Extended Length (IN)23.03
Collapsed Length (MM)378.8
Extended Length (MM)585.0
Finish Zinc Plated
Reservoir No
Body Design Smooth Body (Non-Coilover)
Body Diameter 46mm
Spring Seat Included No
Adjustable Damping Non-Adjustable
Replacement Mounting Kit B4-KT1-Z441A00

Additional information

Weight 41.8 lbs
Dimensions 28.01 × 10.01 × 7.51 in
ATTENTION STATE OF CALIFORNIA CONSUMERS. WARNING: Cancer and reproductive harm – www.p65warnings.ca.gov
