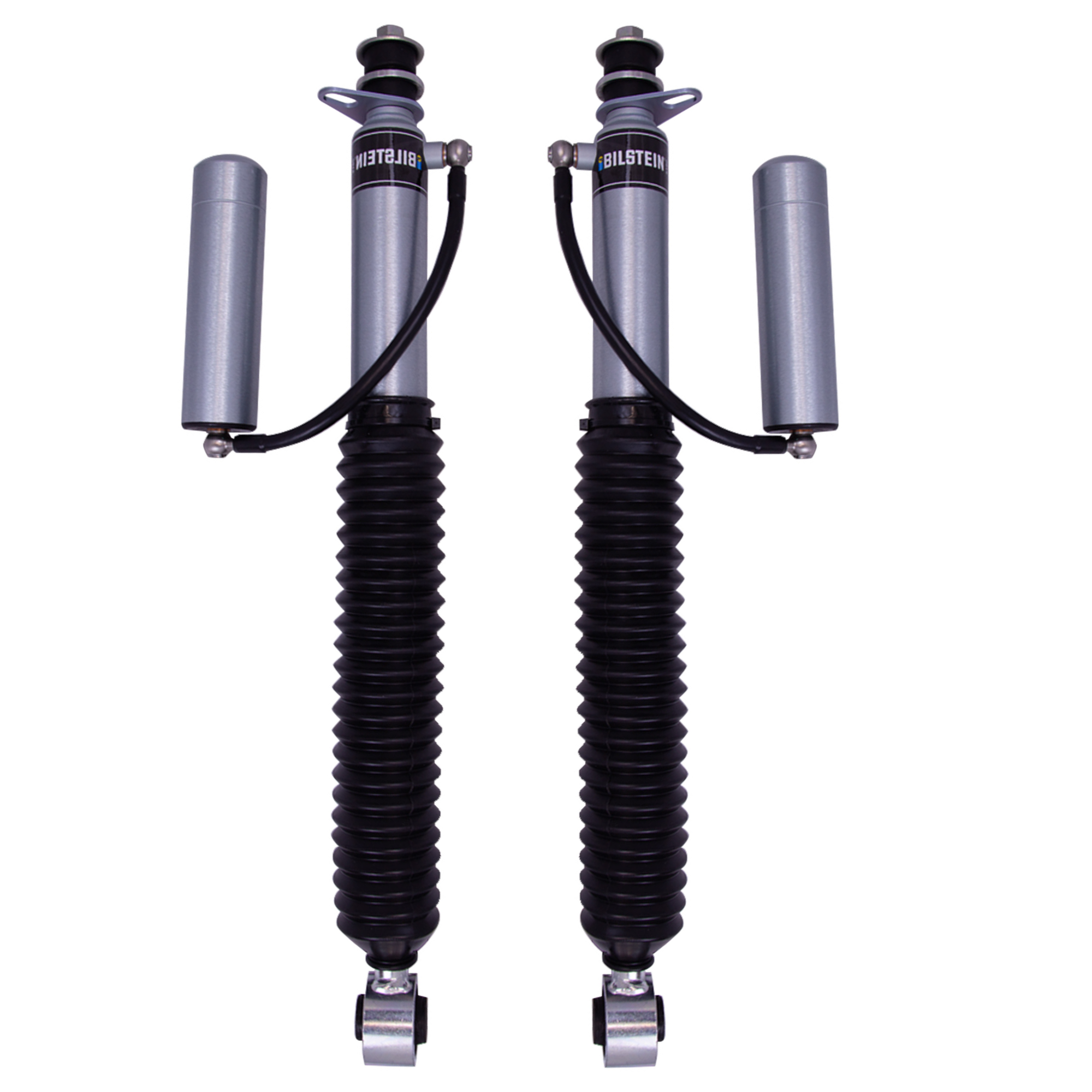

Bilstein 5160 0-2″ Rear Shocks for 2003-2024 Toyota 4Runner, FJ Cruiser
Description
Bilstein 5160 0-2″ Rear Shocks for 2003-2024 Toyota 4Runner, FJ Cruiser
Bilstein 5160 0-2″ Rear Shocks for 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 Toyota 4Runner Toyota FJ Cruiser
Part: 25-227611
Discontinued and replaced with:
-
Bilstein B8 5160 0-2″ Rear Lift New Version Shocks for 2003-2024 Toyota 4Runner
(0 reviews)Original price was: $590.00.$533.34Current price is: $533.34. Add to cart
Need both the front and the rear kit for 4Runner?
-
Bilstein 6112 1.5-2.6″ Medium Duty(150-200lbs) Assembled Front Coilovers and B8 5160 0-2″ Rear Lift Shocks for 2010-2024 Toyota 4Runner
(0 reviews)Original price was: $1,581.00.$1,499.95Current price is: $1,499.95. Select options
Need both the front and the rear kit for FJ Cruiser?
-
Bilstein 6112 0.9-2.4″ Medium Duty(150-200lbs) Assembled Front Coilovers and B8 5160 0-2″ Rear Lift Shocks for 2010-2014 Toyota FJ Cruiser
(0 reviews)Original price was: $1,581.00.$1,499.95Current price is: $1,499.95. Select options
Rear Shocks (old part: 25-227611):
Series: 5160
Rear Right:
Collapsed Length (IN) 14.50
Extended Length (IN) 23.50
Part Number: 25-313130
Rear Left:
Collapsed Length (IN) 14.50
Extended Length (IN) 23.50
Part Number: 25-313154
Rear Shocks Fitment Notes: Without XREAS Suspension
Sold in sets of 2
5160 Series – Stock Mount Remote Reservoir
Get the benefits of a remote reservoir with Bilstein’s stock mount 5160 shocks.
The product benefits at a glance:
- Bilstein’s industry leading monotube design
- Unique digressive valving system instantly produces full damping capability
- Remote reservoir dramatically increases shock oil capacity for even greater heat dissipation and damping sensitivity
- Reservoir mounting configuration designed specifically for each vehicle application
- Special swivel banjo fittings on the reservoir hose allow for 360 degrees of
rotation - For increased wheel travel and more shaft movement, the floating/dividing piston is located in the reservoir
- Bilstein’s exclusive Triple-C Technology® finish provides easy care and lasting great looks
- Includes reservoir mounting kit and detailed instructions
- Sold in sets of 2
- Great for 0-2″ of rear lift!
Includes 2 Shocks
You can also purchase:
-
Bilstein Reservoir Mounting Clamps pair Billet Aluminum for 5160 and 5165 Reservoir Shocks
(4 reviews)Original price was: $105.66.$96.44Current price is: $96.44. Add to cart
Jacob Steve –
Nice shock.
Benefits of an external reservoir on the tried and true 5100 platform. Same excellent street manners I expected, and compliant offroad without going to a shock much more expensive. Happy with my purchase, but it is a bit pricey for a hot rodded 5100. 4/5 for the price.
Dustin Gilland –
Awesome feel offroad. Did a trail with a bunch of articulation the day before and after install, the extra travel made such a difference I didnt need locker. Install was pretty simple. I would HIGHLY recommend purchasing the reservoir mounts that put it directly on the shock. The frame mount is garbage with cheap hardware. Besides that. I couldn’t be happier!
Robert Marin –
Great shocks. Do 6112 front for premium overland suspension. Also get the Billstein RESERVOIR MOUNTING CLAMPS – BILLET ALUMINUM FOR 5160 RESERVOIR SHOCKS. Just a complete clean look. Not a fan of the setup they include with the 5160 shocks. Although functional, Just not thought through in terms of An aesthetic look. Do the billet clamps You will thank yourself.
Phil –
Great service fast shipping. Had these shocks on two previous rigs. They do all I ask them to do.
Joel Nelson –
I purchased the 6112’s for front.
I purchased the Mounting Clamps for the 5160’s
I am on the waiting list for the 5160’s
Please advise ETA on the 5160’s Thank you for your service.
Rolly Uberita –
Great service and fast shipping.
Super enjoying my new bilstein 5160.
Thank u
Teny –
Great shocks but just dont buy them off this site. The bilstein box looked opened previously and had missing pieces. I purchased this set with the front bilstein 6112 setup and when i installed it a couple months later there parts missing from the rear kit on one side. Looks like it was a returned item that someone took parts out and returned. Instead of sending me what i needed suspensionlift filed a claim with bilstein. Now onto the third week and still nothing.
