Bilstein 6112 1-3″ Front Lift Shocks and Coils and 5160 Rear 0-2″ Lift Kit for 2008-2021 Toyota Land Cruiser 200

Bilstein 1-3" Lift Kit for 2008-2011 Toyota Land Cruiser 200
Bilstein 1-3" Lift Kit for 2008-2011 Toyota Land Cruiser 200

Description
Bilstein 6112 1-3″ Front Lift Shocks and Coils and 5160 Rear 0-2″ Lift Kit for 2008-2021 Toyota Land Cruiser 200

Bilstein 6112 1-3″ Front Lift Shocks and Coils and 5160 Rear 0-2″ Lift Kit for 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021 Toyota Land Cruiser 200

Part: 47-311145 (Old part 47-273146)_25-311402_25-311419

Front 1-3″ Lift Kit: 47-311145

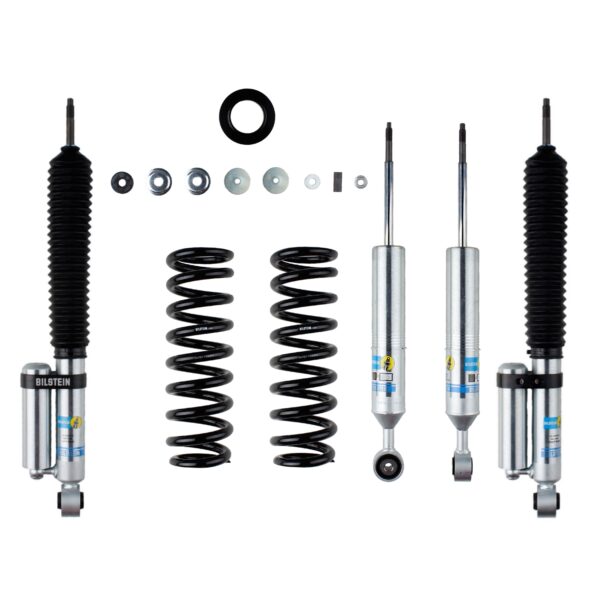

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

Finish: Dampers: Zinc Plated/Springs: Black
Reservoir: No
Aftermarket Upper Arms Required: No
Body Design: Snap Ring Grooved Body (Coilover)
Body Diameter: 60mm

Rear 0-2″ Lift RR Shocks: 25-311402 and 25-311419

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

Collapsed Length (IN): 14.61
Extended Length (IN): 24.17
Collapsed Length (MM): 371.0
Extended Length (MM): 614.0
Finish: Zinc Plated
Reservoir: Yes
Body Design: Smooth Body (Non-Coilover)
Body Diameter: 46mm

Need them assembled?

Need the kit with rear coils?

Additional information

Weight 65 lbs
Dimensions 30.63 × 12 × 10 in
ATTENTION STATE OF CALIFORNIA CONSUMERS. WARNING: Cancer and reproductive harm – www.p65warnings.ca.gov

Related products

$1,416.00

Out of stock

SKU: 47-311145_25-311402_25-311419 Categories: , Brand:
