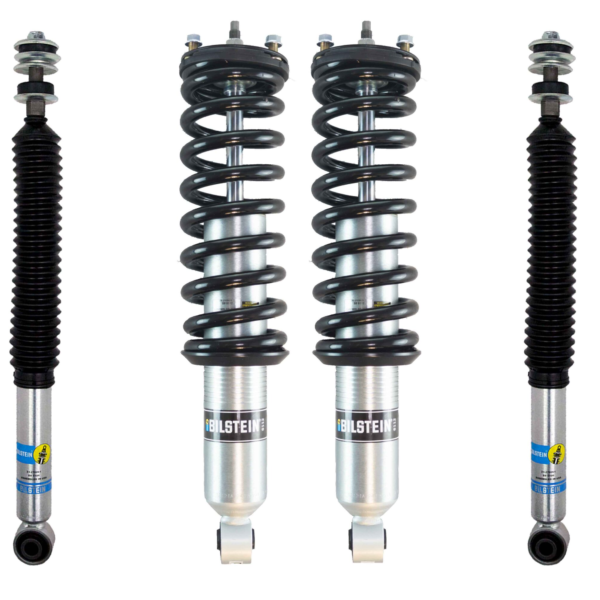

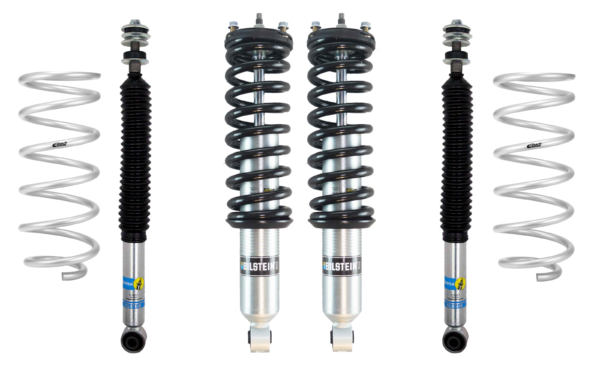

Bilstein 6112 Assembled 1.3-2.9″ Front Coilovers with Eibach Pro Lift Rear 1″ Coil Springs and 0-1″ Rear Lift Shocks Kit for 2001-2007 Toyota Sequoia 4WD

Description
Bilstein 6112 Assembled 1.3-2.9″ Front Coilovers with Eibach Pro Lift Rear 1″ Coil Springs and 0-1″ Rear Lift Shocks Kit for 2001-2007 Toyota Sequoia 4WD

Bilstein 6112 Assembled 1.3-2.9″ Front Coilovers with Eibach Pro Lift Rear 1″ Coil Springs and 0-1″ Rear Lift Shocks, Coils Kit for 2001, 2002, 2003, 2004, 2005, 2006, 2007 Toyota Sequoia 4WD

Part: 47-310049_2x24-276061-ASB_E30-82-095-01-02

Front Shocks (47-310049):

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

Notes:

• Front Lift Height: 1.3-2.9″
• Without Electronic or Self-Leveling Suspension

Rear Shocks:

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

• Collapsed Length (IN): 15.06
• Extended Length (IN): 23.96
• Collapsed Length (MM): 382.5
• Extended Length (MM): 608.5
• Finish: Zinc Plated
• Reservoir: No
• Body Design: Smooth Body (Non-Coilover)
• Body Diameter: 46mm
• Adjustable Damping: Non-Adjustable
• Replacement Mounting Kit: B4-KT1-Z273A00

Notes:

• For Rear Lifted Height: 0-1″
• Without Self-Leveling or Electronic Suspension

Coils:

Part: E30-82-095-01-02

Includes: 2 Coils

• Increased Ground Clearance.
• More Fender Clearance for Larger Wheels and Tires.
• Precision Engineered for Improved Off-Road Capability.
• Excellent On-Road Stability and Handling.
• Made in U.S.A.
• Million-Mile Warranty

Download Installation Instructions
