Bilstein 5100 adjustable 0-2.5″ front, rear shocks 1995-2004 Toyota Tacoma 4WD/2WD

SKU: 9504BILK
(18 customer reviews)
Bilstein 5100 adjustable 0-2.5" front, rear shocks 1995-2004 Toyota Tacoma 4WD/2WD
Bilstein 5100 adjustable 0-2.5" front, rear shocks 1995-2004 Toyota Tacoma 4WD/2WD

Description
Bilstein 5100 adjustable 0-2.5″ front, rear shocks 1995-2004 Toyota Tacoma 4WD/2WD

Bilstein 5100 Height Adjustable Front Shocks and Matching Rear Shocks

9504BILK

Fits Toyota Tacoma 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004

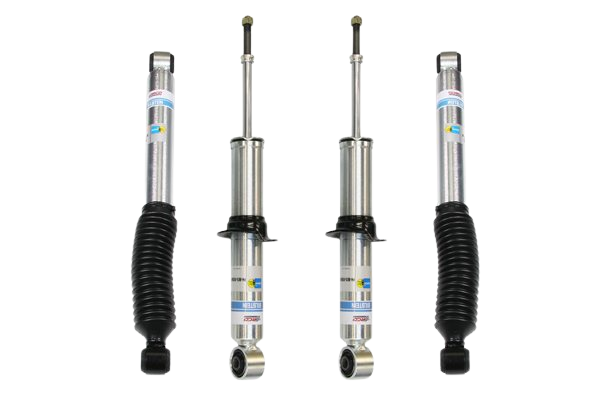

Front and rear Bilstein 5100 shocks

Front D558 height adjustable shocks can be set at 0, 1.25, and 2.5 inches of lift with the factory coils
Extended length: 18.64″
Collapsed length: 13.39″

Rear D560 extended length 5100 Bilstein shocks work great with 0 to 2 1/2″ lift.

– – – –

2 x F4-BE5-D558-T0

F4-BE5-D559-T0, F4-BE5-D560-T0

– – – –



Rear shocks:

F4-BE5-D559-T0 Extended length: 21.63″ Collapsed length: 13.93″ (Driver side)
F4-BE5-D560-T0 Extended length: 22.57″ Collapsed length: 14.65″ (Passenger side)



NOTE: Front shocks do not include upper bushings or washers.



Will not fit 5 wheel lug Tacoma’s. Please check your application before ordering.

need a full lit kit?

18 reviews for Bilstein 5100 adjustable 0-2.5″ front, rear shocks 1995-2004 Toyota Tacoma 4WD/2WD

  1. Will –

    Awesome. Most cost effective way to lift the front and have future options for lift height. Easy to install, used stock coils, got 2+” of lift (front), required realignment, added a diff drop. Rear stock TRD shocks are two different lengths and limit travel with any lift and can also act as a violent liminting strap if lift is added. I’ve lifted two 95-04 tacomas several different ways; this is the least expensive, easisest and correct way to do an under 2.5″ lift.

  2. Brady –

    Easy to install and still a good ride……don’t forget the front bushing kit you have to have them

  3. Fuchsia –

    Great shocks, best price I could find, fast shipping! Very satisfied.

  4. Jeff –

    I just put the Billstein 5100s all the way around on my 04 Tacoma 4×4 Xtra cab along with some Cooper A/T3 265/75/16 LT C tires (one size up from stock) and I have to say I’m very impressed with this product. Got 2 full inches in front on the third ring setting and an inch in back because of the tires. Truck is leveled and looking a lot better and riding way better too. I eventually want to do a full 3 inch lift with new springs, add a leaf in rear and LR UCAs eventually. Cool thing is there are a bunch of lift options with these shocks so you can do it in stages. As it sits right now it’s a perfect enduro truck. Great daily driver and capable little off roader.

  5. Kellan –

    These shocks outdid my expectations and then some. I put the 5100’s all around on my 2002 Tacoma with the fronts set on the third ring and achieved close to 2.5 inches of lift. I paired the shocks with the 1 inch toytech block offered in the rear and my truck is leveled perfectly now. I recently just picked up some 33 inch tires (285/70/17) and they surprisingly fit very well. I obviously am rubbing up front when the wheel is fully cranked and will have to do some trimming. Haven’t gotten the time to trim yet but I don’t think I will have to cut that much out. The ride quality is excellent in my opinion. It is surely a stiffer ride in comparison to the stock shocks but I prefer that. It feels much more responsive and not like I am on a trampoline after going over bumps in the road like the stock shocks. Definitely would recommend.

  6. Luke –

    They shipped the same day I ordered them then got here only 3 days later. Very fast. They came perfectly. They are great shocks and do exactly what’s advertised. I recommend these above anything else.

  7. Daniel –

    Shipping was fast, shipped the day after I ordered and arrived a couple days later. Installed on my 04 Tacoma Prerunner DC V6. Installation was easy and straight forward, but I highly recommend a professional shop do the coil swap for the front shocks/coils. The rear shocks do say they fit a 0-2.5″ inch lift, but installing on a rear stock height, the rear shocks are really compressed and bottomed out a few times. I ended up ordering a 1″ rear block lift so the rear shocks won’t bottom out and become damaged. Overall this is a great budget kit and highly recommend it for anyone wanting a small lift.

  8. racer –

    I have used 4 sets of the 5100/4600 shock. Great OEM replacement.

  9. Chris J –

    I just upgraded my stock shocks to the Bilstein 5100. It’s like night and day comparing old to new. Best investment I’ve done for my truck.

  10. Rich Iannaco –

    Perfect fit, Installed new Moog coilovers. Really changed the ride. Very Happy with these shocks, Also have 5100’s on my 2015 GMC 2500

  11. Ethan Child –

    Excellent product. Easy installation. Very happy with this setup.

  12. Kapoe –

    Good quality replacement shocks for an affordable price. Future buyers do know that even if you install the shocks at the stock height they still add about an inch of lift compared to OEM shocks.

  13. Aman –

    This is my 2nd set of 5100. The first was on my 10 fj cruiser on 3rd setting. Rides great and supported the weight of a bumper and winch. My second is on my 03 Tacoma double cab. Same setting on 3rd clip and paired with a 1.5 add a leaf gave the perfect stance. Running 265/75/16 with no rubbing at all. Both vehicles ride amazing and this is by far the best value for quality.

  14. Sam –

    These breathed back life into my 2003 Tacoma’s suspension and gave her a nice 2.5 inch lift. I used a 1.5 inch add a leaf in the rear and it perfectly leveled my truck. Driving on and off road is far better than it was before. I think that these adjustable shocks are the best and most cost effective way to achieve a reasonable amount of lift. I did not see any need to install a differential drop kit. I ordered Bilstein replacement shock bushings, part #: B4-KT1-Z103A00. I highly recommend getting new bushings and washers. The rear shocks came with all the bushings required, but the front shocks did not have the bushings that go on the stem below and on top of the strut mount plate. The bushings and washers only cost $26.

  15. Chase Ferguson –

    Fits great on my 02 Tacoma and works amazing. Along with great customer service highly recommended.

  16. Kevin Sells –

    2003 Tacoma crew cab Awesome shocks, paired them with a 1″ diff drop kit and 1″ rear blocks truck sit almost Level. Truck rides great not to rough. Would definitely buy again, worth the money.

  17. Juan Carlo Garcia –

    You know you want them, and you know your truck needs them, great quality and great ride too.

  18. Jaime Valladares –

    I have a 1998 Toyota Tacoma sr5 3.4l 4×4 TRD and I am using this 5100s to use with my 2″ lift and changing from 15″ to 16″ wheels and this shocks are perfect for the job. Very happy with the quality and price of the product, definitely and A+ for Biltein shocks.
