Total Chaos UCA for Toyota Tacoma 1995.5-2004, 4Runner 1996-2002

Total Chaos UCA for Tacoma 95.5-04, 4Runner 96-02
Total Chaos UCA for Tacoma 95.5-04, 4Runner 96-02

Description

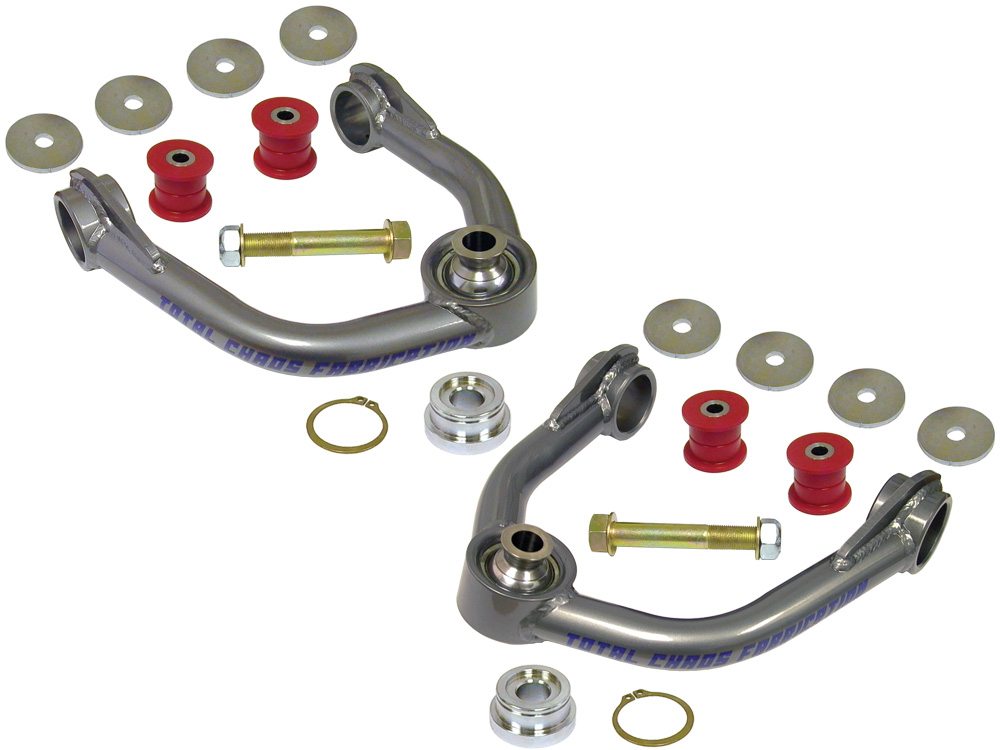

Total Chaos UCA for Toyota Tacoma 1995.5-2004, 4Runner 1996-2002

Total Chaos UCA for Toyota Tacoma 95.5-2004, 4Runner 1996-2002

Part: TC 96500

Fits all 6 wheel lug: ‘95.5-’04 Tacoma’s and ’96-’02 4Runners

  • 4130 chromoly tubular upper control arms are 100% bolt on and hand crafted in the U.S.A.
  • CNC machined slug adapters press into the spindle and convert the factory ball joint to a 1″ uniball for added component strength & maximum wheel travel.
  • TOTAL CHAOS includes 1″ I.D. uniballs that feature a heat treated stainless steel ball & heat treated stainless steel race for maximum corrosion resistance and component longevity. These uniball’s also features a military grade PTFE woven fabric liner that helps prevent noise.
  • Custom profile upper and lower hi-misalignment spacers maximize droop wheel travel and are machined from heat treated 17-4 stainless steel. The lower hi-misalignment spacer registers into the slug adapter for maximum strength.
  • Upper control arms combined with extended length coil over shocks will allow for up to 1″ of additional wheel travel.
  • Urethane bushings reduce bushing deflection compared to stock rubber bushings.
  • Control arm pivots include zerk fittings to grease the urethane bushings & inner sleeves without disassembly.
  • 2 stage powder coat process includes a durable clear coat to provide a long lasting finish.
  • Complete grade 8 hardware kit is included.

OPTIONAL HEIM PIVOT UPGRADE

  • TC includes 3/4″ chromoly heim joints for the pivots.
  • Heim upper control arms are fully adjustable to allow maximum tuning of caster and camber. Shipped preset to O.E. location.
  • Designed for vehicles with a 6″ or higher drop bracket lift kit.
  • * Not compatible with Tuff Country lift kit.

Fits all 6 wheel lug:

  • 1995.5 Toyota Tacoma
  • 1996 Toyota Tacoma
  • 1997 Toyota Tacoma
  • 1998 Toyota Tacoma
  • 1999 Toyota Tacoma
  • 2000 Toyota Tacoma
  • 2001 Toyota Tacoma
  • 2002 Toyota Tacoma
  • 2003 Toyota Tacoma
  • 2004 Toyota Tacoma
  • 1996 Toyota 4Runner
  • 1997 Toyota 4Runner
  • 1998 Toyota 4Runner
  • 1999 Toyota 4Runner
  • 2000 Toyota 4Runner
  • 2001 Toyota 4Runner
  • 2002 Toyota 4Runner

Additional information

Weight 22 lbs
Dimensions 22 × 14 × 6 in
ATTENTION STATE OF CALIFORNIA CONSUMERS. WARNING: Cancer and reproductive harm – www.p65warnings.ca.gov

Related products

(1 customer review)

$1,121.99

SKU: TC 96500 Categories: , Brand:
