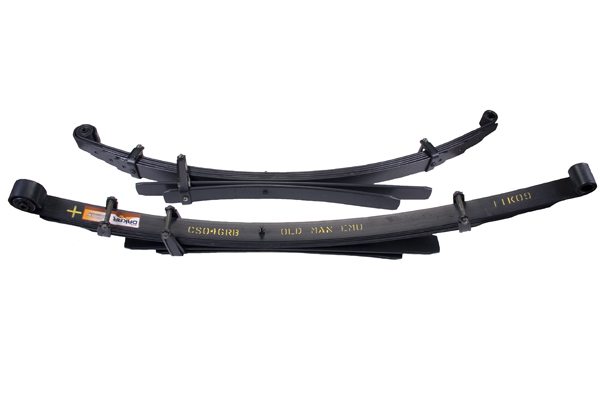

OME 2.5″ Rear Lift Springs with bushings for 1998-2004 Toyota Tacoma

Description
OME 2.5″ Rear Lift Springs with bushings for 1998-2004 Toyota Tacoma

OME 2.5″ Rear Lift Springs for 1998, 1999, 2000, 2001, 2002, 2003, 2004 Toyota Tacoma includes bushings

Part: EL122RAB (old:CS046RAB)

Includes:

• Springs (2 – left and right)
• Bushings (2 sets) OMESB121 (older bushings style wont work!)

May require new U bolts, order separately.

Part number FK21 is usually required for Tailpipe relocation, order separately:

You might also be interested in:

OME Dakar leaf springs feature:

• Draw Tapered & Diamond Cut Leaves: Ensure the load is progressively distributed over a larger surface area, reducing the high stresses that develop at leaf ends. This provides increased ride quality and protection against leaf breakage, significantly increasing the spring life.
• Bolt Clamps & Liners: The leaf clamps are bolted to allow installation of anti squeak nylon liners.
• Fully Scragged & Load Tested: Scragging ensures the spring takes a permanent ‘set’ which reduces the risk of sagging. Load testing ensures the spring meets the required specification.
• Graphite Coating: To further reduce the friction between the spring leaves & friction pads.
• Military Wrap: Designed to provide added safety.
• Anti Friction Pads: Regreasable nylon interleaf liners reduce friction at the leaf tips where the load is the greatest.
• Flat Axle Seat Area: Allows a positive, safe axle mount reducing spring stress & increasing spring life.
• Shot Peening: The tension side of all leaves is shot peened to reduce spring stress. This process can double the life of a spring.
• Two-stage Leaf Pack: Featured on most rear springs for optimum comfort. When unladen the vehicle is largely riding on the primary stage, with the secondary stage providing additional support when a heavy load is added.

Please note: Most Emu Dakar leaf springs have all the listed features, but where design or a physical limitation exists one or more of these features may not be incorporated. Please check with your OME licensed fitter for further information.

Download OME CS046R Installation Instructions
