Will these fit a stock-height Tacoma?

No. They are engineered for 2.5-3.5 inches of rear lift.

Do I need longer bump-stops?

Often, yes. Verify bump-stop engagement at full compression to ensure the shock does not bottom out first.

Are these for 2WD or 4WD?

They fit both 2WD and 4WD 1995.5-2004 Tacomas when lifted 2.5-3.5 inches in the rear.

Do they include bushings and hardware?

9.8108R bushings are included. Reuse OE bolts/nuts unless otherwise specified.

-9%

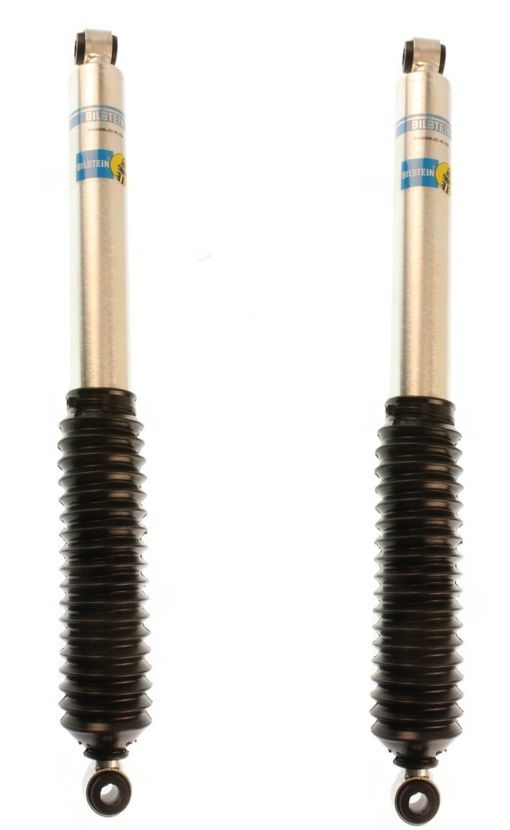

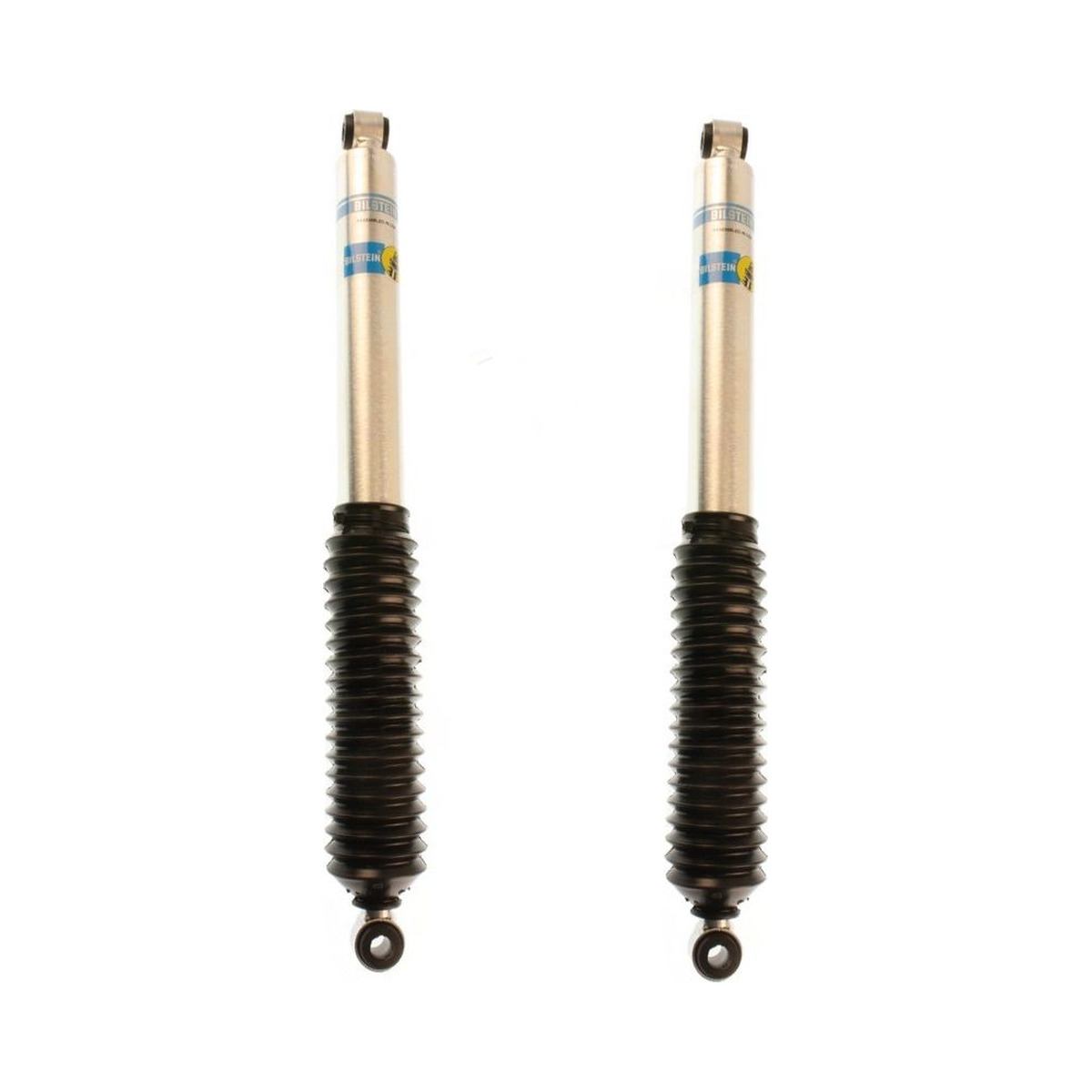

Bilstein Rear Extended Travel 2.5-3.5" Lift Shocks for 1995.5-2004 Toyota Tacoma

Click to enlarge

Bilstein Rear Extended Travel 2.5-3.5″ Lift Shocks for 1995-2004 Toyota Tacoma

4.4 out of 5 based on 5 customer ratings

(5 customer reviews)

Original price was: $259.00.Current price is: $235.99.

In stock

Add to compare

Add to wishlist

SKU: A463 Categories: Toyota Tacoma, 1995-2004 Toyota Tacoma, Shocks

Description

Bilstein Rear Extended-Travel Shocks (2.5-3.5″ Lift) for 1995.5-2004 Toyota Tacoma — Pair (A463)

Pair of Bilstein 5125 extended-travel rear shocks tuned for leaf-spring Tacomas with 2.5-3.5″ of rear lift. Direct bolt-on for 1995.5-2004 Toyota Tacoma (2WD/4WD). Zinc-plated monotube construction with included 9.8108R bushings and eyelet/eyelet mounts.

Fitment & Lift Range

Vehicle: Toyota Tacoma (mid-1995 ½ launch) through 2004, all trims, 2WD/4WD
Rear lift height: 2.5″ to 3.5″ (not for stock height)
Use with: add-a-leafs, lift leaf packs, or extended shackles providing 2.5-3.5″ net lift

Why Choose These

Extended travel matched to common 2.5-3.5″ rear lift setups
Monotube 46 mm Bilstein design for consistent, fade-free damping
Zinc-plated body for corrosion resistance
Bushings included for straightforward installation

What’s Included

2 × Bilstein 5125 rear shocks (kit PN: A463; individual shock PN commonly used: 33-186542)
9.8108R bushings (eyelet/eyelet)

Install Notes

Bolt-on; reuse OE hardware where applicable; torque to factory specs
Check bump-stop engagement at full compression; install longer bump-stops if needed to prevent the shock from bottoming before the bump-stops
Cycle the suspension to verify brake line slack and shock travel at full droop
Re-torque hardware after initial settling

Things to Know

Not recommended for less than 2.5″ of rear lift
Designed to pair well with our Tacoma rear lift solutions (AALs or lift leaf packs)

Specifications

Series	Bilstein 5125
Kit Part	A463 (pair)
Individual Shock PN	33-186542 (rear)
Lift Range	2.5″-3.5″ rear lift
Extended Length	24.35″
Compressed Length	15.11″
Stroke	9.24″
Body Diameter	46 mm (1.81″)
Finish	Zinc plated
Upper Mount	Eyelet
Lower Mount	Eyelet
Bushings	Included — 9.8108R
Sold As	Pair (2 shocks)

FAQs

Will these fit a stock-height Tacoma?: No. They are engineered for 2.5-3.5″ of rear lift.
Do I need longer bump-stops?: Often, yes. Verify that the bump-stops contact before the shock bottoms out at full compression.
Are these for 2WD or 4WD?: They fit both 2WD and 4WD 1995.5-2004 Tacomas when lifted 2.5-3.5″ in the rear.
Do they include bushings and hardware?: 9.8108R bushings are included. Reuse OE bolts/nuts unless otherwise specified.

You May Be Interested In

Bilstein 0-2.5" Lift Rear Shocks 1995-2004 Toyota Tacoma, Bilstein 5100 1-1.5" Rear Lift Shocks for 1995-2004 Toyota Tacoma 4WD

Additional information

Weight	8 lbs
Dimensions	24 × 8 × 4 in
4WD-2WD	2WD , 4WD
Brand	Bilstein
Front-Rear	Rear
Make	Toyota
Model	Tacoma
Product Type	Shocks
Year	1995.5 , 1996 , 1997 , 1998 , 1999 , 2000 , 2001 , 2002 , 2003 , 2004
Lift	2.5 , 2.6 , 2.625 , 2.63 , 2.75 , 2.8 , 3 , 3.2 , 3.4 , 3.5

Reviews (5)

Customer reviews

Rated 4.4 out of 5 stars

5 reviews

5 stars 3 60 %

4 stars 1 20 %

3 stars 1 20 %

2 stars 0 0 %

1 star 0 0 %

Most recent reviews Most helpful reviews

5 reviews for Bilstein Rear Extended Travel 2.5-3.5″ Lift Shocks for 1995-2004 Toyota Tacoma

Add a review Cancel reply

About brand

Bilstein Shocks

When it comes to enhancing the performance and handling of your vehicle, Bilstein shocks, Bilstein lift kits, and Bilstein suspension systems are top-tier choices. Bilstein shocks are renowned for their exceptional durability and advanced engineering, delivering smoother rides and superior control even under the most demanding conditions. Whether you're aiming to elevate your truck or SUV, Bilstein lift kits offer the perfect solution, providing your vehicle with the lift it needs while maintaining optimal performance and handling.

Bilstein Lift Kits

Complete your upgrade with Bilstein suspension systems, designed to improve both on-road comfort and off-road capability. These systems are a favorite among off-road enthusiasts and daily drivers alike for their ability to enhance vehicle stability and ride quality.

Bilstein Suspension Systems

With a reputation for excellence, Bilstein shocks and suspension systems are built to withstand rugged conditions, offering long-lasting performance for adventure seekers. If you're in search of better ground clearance, improved handling, and a smoother ride, Bilstein lift kits will help you achieve the ideal stance while maintaining vehicle stability. Trust Bilstein to deliver the high-quality suspension solutions you need for your next off-road or on-road adventure.
