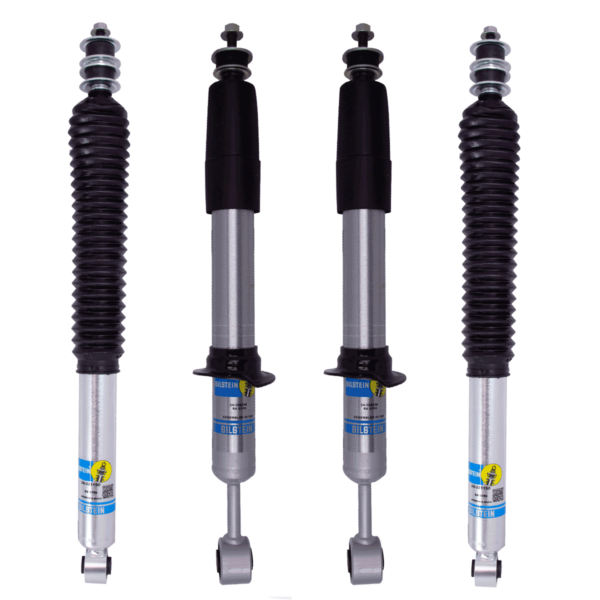

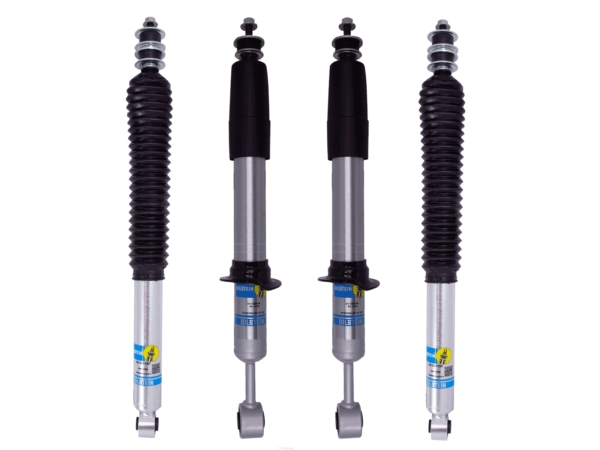

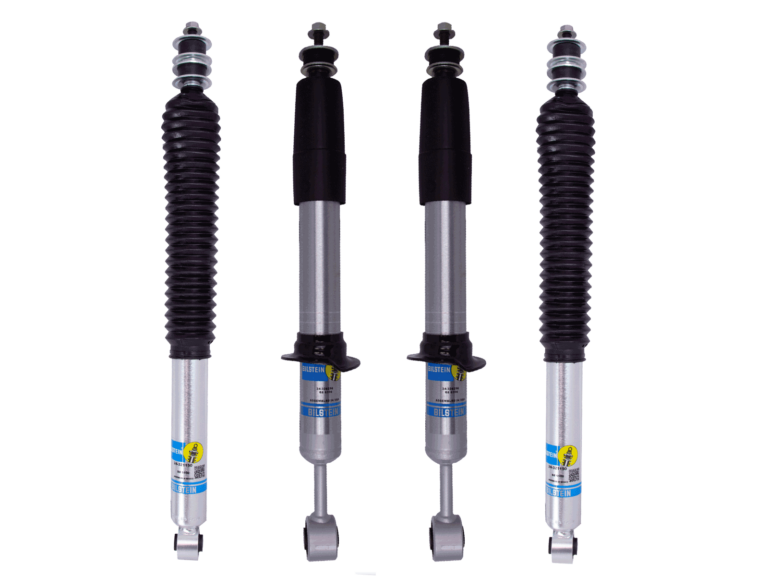

Bilstein 5100 0-2.5″ Front, Rear shocks for 2005-2015 Toyota Tacoma

Description
Bilstein 5100 0-2.5″ Front, Rear shocks for 2005-2015 Toyota Tacoma

Bilstein 5100 0-2.5″ Front and 0-2″ Rear shocks for 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015 Toyota Tacoma 6 Lug

Part: 24-324359_24-186728

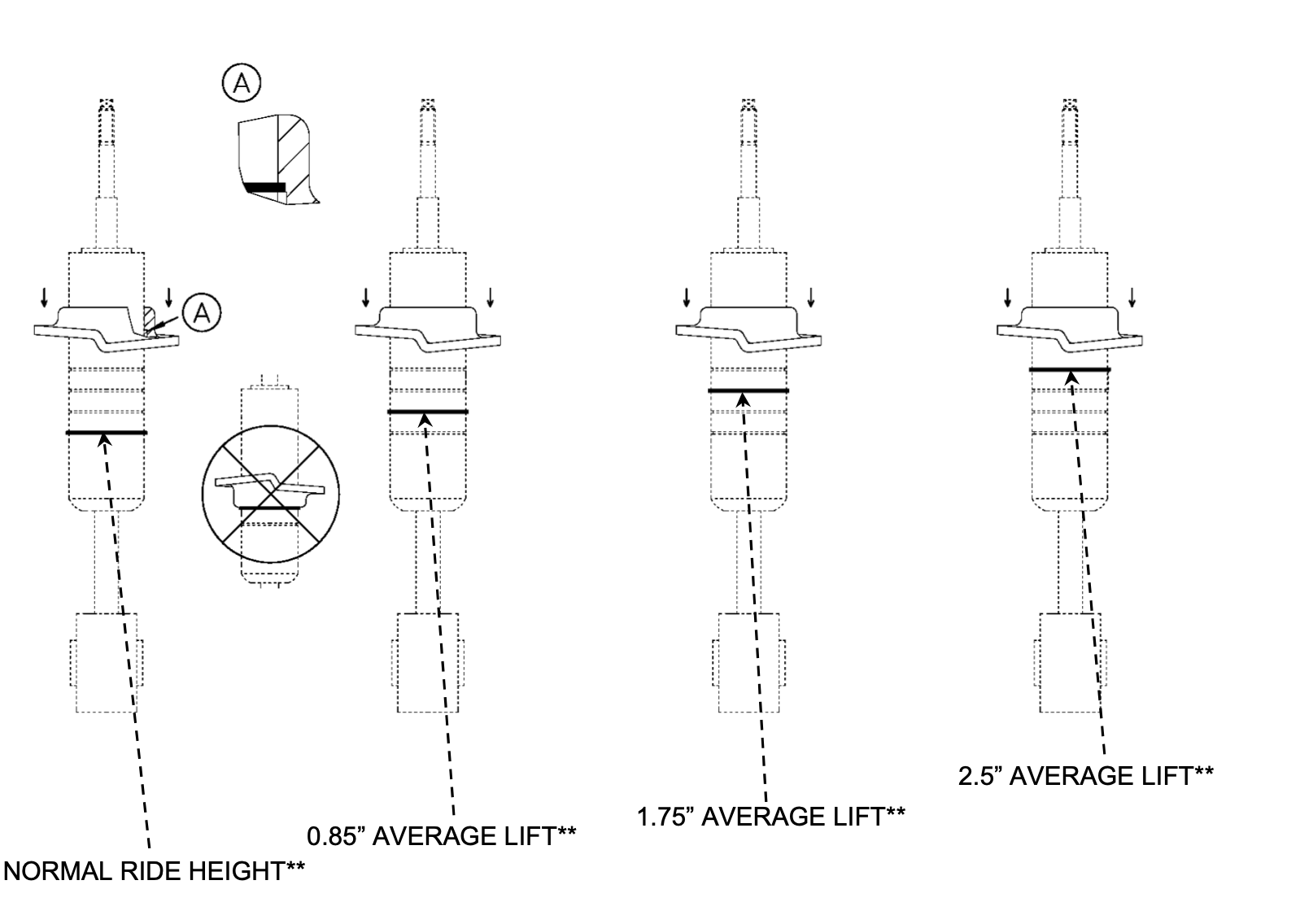

The Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are perfect for vehicles with front OE coilover style suspension. The 5100 shock absorbers feature multiple snap-ring grooves in the body for varying spring seat positions and provide 0-2.5 inches of front lift. The 46mm digressive piston and self-adjusting deflective disc valve setting improve handling and wheel travel. Leveling out your vehicle has never been easier with the Bilstein B8 5100 (Ride Height Adjustable) shock absorber.

Fitment Notes: Please note, these shock absorbers will not work on the 5-Lug Tacoma. Ride heights are an approximation and can vary based on your vehicle’s factory suspension, condition, optional equipment and accessories, and other modifications like replacement coil springs, wheel and tire combinations, etc.

FRONT:

2 x 24-324359 (old part: 24-239370)

• Extended Length (IN): 22.56 Inch
• Compressed Length (IN): 17.03 Inch
• Rod Diameter (IN): 1.81 Inch
• Upper Mounting Style: Stem
• Lower Mounting Style: Eyelet

Installation instructions for 24-186728 are included.

REAR:

2 x 24-186728

• Extended Length (IN): 22.94 Inch
• Compressed Length (IN): 14.02 Inch
• Rod Diameter (IN): 1.81 Inch
• Upper Mounting Style: Stem
• Lower Mounting Style: Eyelet

Please note, the rear 5100 shocks are not adjustable. The kit includes 4 shocks.
