ICON 0-2.75″ Lift Kit Stage 4 with Tubular UCA 2016-2023 Toyota Tacoma

SKU: K53004T
(7 customer reviews)
ICON 0-2.75" Lift Kit Stage 4 with Tubular UCA 2016-2021 Toyota Tacoma
ICON 0-2.75" Lift Kit Stage 4 w/Tubular UCA for 2016-2017 Toyota Tacoma
ICON 0-2.75" Lift Kit Stage 4 w/Tubular UCA for 2016-2017 Toyota Tacoma
ICON 0-2.75" Lift Kit Stage 4 with Tubular UCA 2016-2021 Toyota Tacoma
ICON 0-2.75" Lift Kit Stage 4 w/Tubular UCA for 2016-2017 Toyota Tacoma
ICON 0-2.75" Lift Kit Stage 4 w/Tubular UCA for 2016-2017 Toyota Tacoma

Description
ICON 0-2.75″ Lift Kit Stage 4 with Tubular UCA 2016-2023 Toyota Tacoma

ICON 0-2.75″ Lift Kit Stage 4 w/Tubular UCA for 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023 Toyota Tacoma

Part: K53004T

OVERVIEW:

ICON Vehicle Dynamics 2016-UP Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 4 system includes vehicle-specific tuned 2.5 Series Extended Travel coilover shocks featuring a remote reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-2.75” allowing the use of larger, more aggressive wheel and tire combinations. When used with an ICON upper control arm, ICON extended travel coilovers add increased droop travel to the front suspension. ICON 2.0 Aluminum Series remote reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2016-UP Toyota Tacoma 4WD/PreRunner Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

This system features tubular steel upper control arms with ICON’s patent pending Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application – exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

KEY FEATURES:

  • Increased wheel travel and ride quality over stock
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • Adjustable coilovers provide 0-2.75″ of front lift height
  • Extended Travel coilovers matched with ICON UCA provide increased front droop travel
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock body with 7/8″ shaft
  • FK Rod End bearings for extended longevity and minimal deflection
  • 2.0 Aluminum Series remote reservoir rear shock with 5/8″ shaft
  • Bolt-on system means no cutting or welding necessary for install

WHEEL & TIRE FITMENT INFO:

OEM Wheels & Tires: Yes

Aftermarket Wheels: 8.5″ Wide, 4.75″ Backspace

Aftermarket Tires: 33 x 11.50

(Larger Tires May Fit but Fender Trimming and Modifications will be Required)

SYSTEM COMPONENTS:

58735 (QTY.1) | 05-UP TACOMA EXT TRAVEL 2.5 VS RR COILOVER KIT

58450DJ (QTY.1) | 05-UP TACOMA TUBULAR UCA DJ KIT

51100 (QTY.1) | 96-UP TACOMA/00-06 TUNDRA 1.5″ ADD-A-LEAF KIT

56503R (QTY.2) | 05-UP TACOMA 4WD 0-1.5″ REAR 2.0 VS RR



OPTIONS:

191011 | Uni Ball Cover Cap for Tubular UCA
158508 | 700 Pound Coil Spring (QTY-2)
191003 | Short Coilover Wraps
198000 | Spanner Wrench
56101 | 2005-2015 Tacoma/07-09 FJ/03-09 4 Runner LCA Skid Plates
56103 | 2005-UP Tacoma Rear Air Bump Kit
56105 | Rear Stiker Kit for U-Bolt Flip
56102 | S2 Shock Hoop Kit
59706 | S2 Secondary 2.5 Remote Reservoir Shocks
59706 | S2 Secondary 2.5 Remote Reservoir CDC Shocks
59906 | S2 Secondary 2.5 Remote Reservoir Omega Shocks

7 reviews for ICON 0-2.75″ Lift Kit Stage 4 with Tubular UCA 2016-2023 Toyota Tacoma

  1. Tim –

    BUYERS BEWARE~! The rear only has a 1.5″ inch none adjustable lift which was not advertised in the description of the product. Only to find out AFTER I installed the kit. Front is adjustable but with only 1.5″ in the rear it is very easy for the truck to look back heavy with a rear lean. With 33″ tires with the factory preload height the tires will rub at full turn without modification to the liner. 2 stars only for amazing on and off road performance at higher speeds. -3 for not putting the lift height of the rear in the product description. I would have gone with a different brand if I had known ahead of time about the ride height in the rear. With a full 2 inch lift (as advertised) it would make this a very dynamic suspension as it would be great at high speed and have just enough clearance for low speed rock crawl.

  2. Steve D –

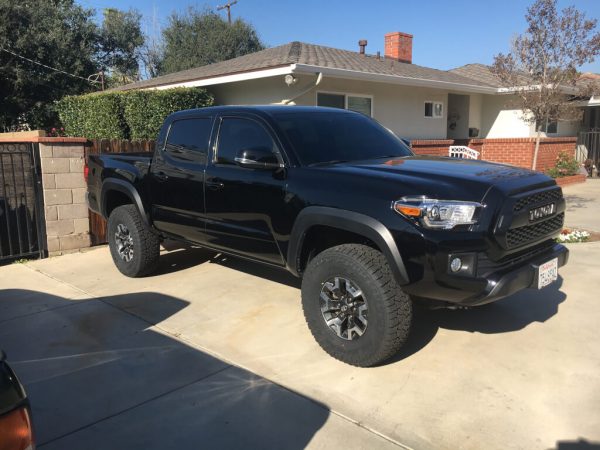

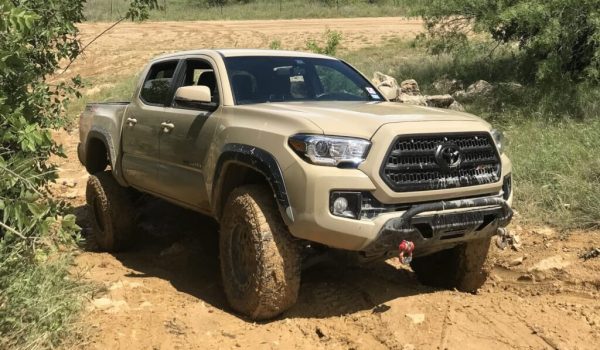

    Very satisfied with my purchase. The truck is at the perfect height for my 33” tires. I did have to slightly trim the fender plastics, but anyone who has planned on running 33s on a third gen Taco knows that’s a probability. The truck handles serious mud and trails with ease.

  3. Mike –

    Got my lift stage 4 on , the rear was stiff I removed lower sm. Add a leaf of the three and it helped front is good sets level

  4. Brian Ramirez –

    I got the stage for almost a year ago. Besides the fact that they perform well on and off road, I’ve had several issues with these. After owning them for 6 months, my rear-driver-side shock started leaking; I sent it to icon and they serviced it. Three months later, the same shock leaked again and within a span of 24hrs it had leaked completely and the shock was super compressed. I reached out to icon and after not hearing from them for over two weeks, they finally responded and won’t warranty their shock! I made all necessary trimming to ensure the shock cleared the shock mount and the company refuses to warranty their faulty product! For the kind of money you’ll pay for this, go with someone else! You’ll get a better product and hopefully a company that cares about their customers.

  5. Eric Ortega –

    First off I love my stage 4 icon lift. Couple things. I left in factory overload in order to get 1 1/2 rear lift. Cutting and drilling is necessary in rear only. If I based my review on description of the product alone, I’d give it a 2. But on suspension alone, I give it a 5. Quality was great. Drive is real nice. I’m fitting 285/75/16 with no rubbing with no trimming.

  6. SkyGriffin –

    Buying experience from Bilsteinlifts.com is superb. No BS; Fast shipping, detailed tracking and itemized listing of ordered items.
    Ikon stage 4 was installed by 88Rotors and the work is sturdy. Waiting for wheels/tires next for some trail runs.

  7. Dak Hovey –

    Dak Hovey (frustrated)

    I have a 03 Tacoma extended cab trd limited, I’m currently working on some frame rust,147,000 miles is all, i want to put and one lift on it, or one of the other high end lifts like this one here, problem is for a 1st gen Tacoma seems like everything is only 3”,I need a complete suspension lift, everything and more,I want to put 37’s on it, which to some people might done rediculaus, I’m in the mountains allot, anyway it’s gonna be chipped for more power and better gas, just gonna use my 17” rims, just a frustrated guy is all, want a stationary winch in front with bumper of course, but also want some kind of quick release system that I can put one on the back if needed, anyway merry christmas everyone from Logan Utah
