OME BP51 2″ Suspension Kit Lift Kit For 2005-2023 Toyota Tacoma
Description
OME BP51 2″ Suspension Kit Lift Kit For 2005-2023 Toyota Tacoma
Old Man Emu BP51 Suspension Kit Lift Kit For 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023 Toyota Tacoma
Part: OMETAC16BP51
Old Man Emu is pleased to release the latest application of BP-51 High Performance Bypass Shock Absorbers engineered specifically for the Toyota Tacoma. Although there are subtle weight differences between the last generation Tacoma and the new generation, with the adjustable nature of the BP-51 the OME engineers have been able to tune and design the BP-51 package to suit both applications. This package consists of 2 front coilovers, 2 rear shock absorbers and 2 fit kits.
The front coilovers have been tuned in both length and feel specifically to the Tacoma and are capable of accommodating setups with and without accessories (bumpers, winch, etc). Specific reservoir brackets have been designed for application specific reservoir placement and also relocation of the sway bar to allow clearance at the spring seat. While the front coilovers are adjustable in height, the system has been designed for a 2 inch (50mm) ride height increase and a minimum of 2 inch (50 mm) down travel.
Currently Availabile for Purchase Rear shock absorbers have been tuned in length and valving specific to the Tacoma. To accommodate the large body size of BP-51 a specific lower mount bracket has been developed to provide clearance to the axle. Specific reservoir brackets have also been developed and are included in the rear fit kit.
The rear dampers are tuned to match the existing range of rear Old Man Emu springs. Recommended compression and rebound settings can be found in the supplied fitting instructions for the various spring options available.
The fitting instructions include detailed information for correct installation of the shock absorber and reservoir placement. Please note there is a left hand and right hand application due to the different reservoir mounting method and locations.

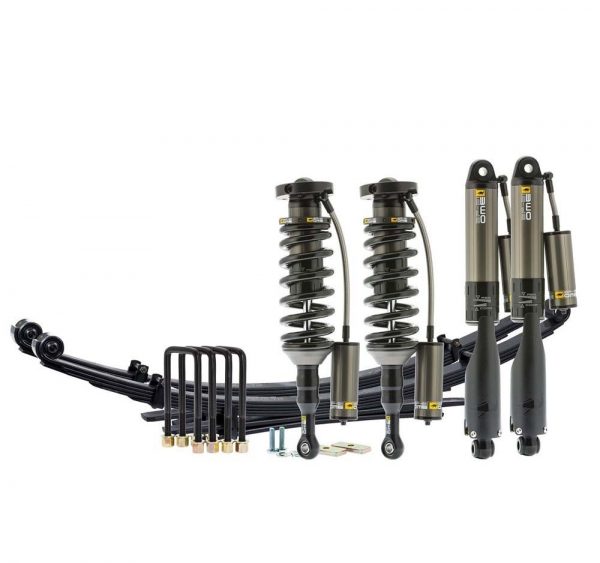

Kit includes:
OME BP51 Kit for 05+ Tacoma
(1) BP5190006L Tacoma Front Left Coilover
(1) BP5190006R Tacoma Front Right Coilover
(1) VM80010016 – BP51 Fit Kit – Front
(2) OME Rear Leaf Springs – Choose from Standard or HD for Constand Load
(1) BP5160011L – Tacoma Left Rear Shock
(1) BP5160011R – Tacoma Right Rear Shock
(1) VM80010017 – Tacoma BP51 Fit Kit – Rear
(1) FK29 – Driveshaft Fit Kit
(4) U53B – Ubolts
(2) SB108 – Spring Bushing Kit
**Note – For medium load spring removal of 3rd leaf is required / For constant 300kg spring Extra Leaf is required to be added
2 reviews for OME BP51 2″ Suspension Kit Lift Kit For 2005-2023 Toyota Tacoma
ATTENTION STATE OF CALIFORNIA CONSUMERS. WARNING: Cancer and reproductive harm – www.p65warnings.ca.gov
Related products
-
-
-
Sale!
Bilstein 5100 5″ Lift Front Rear Shocks for 2005-2015 Toyota Tacoma
(0 reviews)Original price was: $581.16.$459.00Current price is: $459.00. Add to cart -
Sale!
Bilstein 0-2.5″ Front 6112 + Rear 0-1.5″ 5160 Lift Kit for 2005-2015 Toyota Tacoma
(8 reviews)Original price was: $1,376.00.$1,250.00Current price is: $1,250.00. Select options
Michael –
For a 2018 TRD off-road Tacoma.
I am going to leave two reviews:
This one will is for my initial impression, the next will be ride quality after some time.
The finish and build quality of this lift kit is unreal!!!
There’s a comparison of the rear shock attached. Lol
I have been researching lifts for months, watched every review video of every brand of lift out there and chose this lift for many reasons, first it was made for the Tacoma and the second it’s market share is for vehicles in the Australian outback, which is the closest resemblance to the type of off road / overland Venturing that I do.
Secondly Both front and rear have remote reservoirs and has both rebound and compression adjustability.
Additionally the kit comes with leaf springs, which is a huge plus. I opted for the HD version because of the weight that i will be carrying. Stock leaf springs sag just looking at them lol.
If the ride matches the workmanship I will not be disappointed.
Side note:
If you order these you will receive everything in separate packages. (Like 7 in total)
They do all arrive but ship from different locations and do not all arrive at the same time. – stressful when you spend over 3k. But they do show. Communication from BL could be better.
roger –
Its expensive but it’s worth it! Handles way on road and off. If you do buy you may want to look into installing it yourself! I should have I would have saved $3400.00 installation fee which is a lot. After watching youtube videos it is not that difficult to install! The shops will bill you for how many hours it says in the book but if they get it done in hour but charge you 20 so be it. Also if you do get this don’t forget to ad adjustable upper control arms and bump stops! While you are installing this you can install the upper control while you are at it. If you can afford Gert the lower control arms too which are really expensive, $1700 to $1900! I just. ordered total chaos upper control arms. Later on I will ad the lower control arms for complete build, can’t wait! I love this suspension lift!
