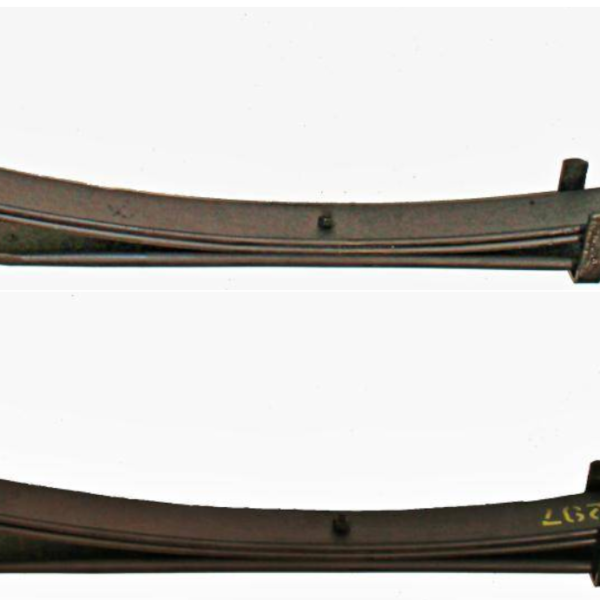

Husky Spring Rear Leaf Springs for 2005-2023 Toyota Tacoma

Husky Spring Rear Leaf Springs for 2005-2023 Toyota Tacoma
Husky Spring Rear Leaf Springs for 2005-2023 Toyota Tacoma

Description
Husky Spring Rear Leaf Springs for 2005-2023 Toyota Tacoma

Husky Spring Rear Leaf Springs for 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023 Toyota Tacoma

Part: 90-299HUS_90-297HUS

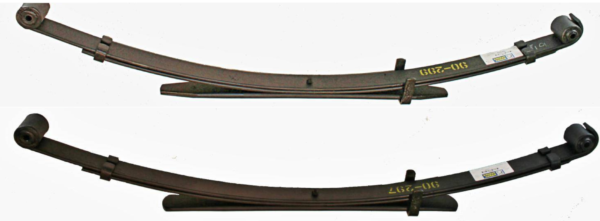

Includes 1x Rear Left Leaf Spring (90-299HUS)_1x Rear Right Leaf Spring (90-297HUS)

SPECIFICATIONS FOR REAR LEFT LEAF SPRING (90-299HUS):

Rear Left Leaf Spring, 2.375″ Wide, 27.6875″x27.6875″, 3 leaves, 1.4375″ Pack Thickness

Arc Length (inches) (a+b) 55.375
Arc Length (mm) 1406.52
Bushing Included Long End Yes
Bushing Included Short End Yes
Color/finish Black Paint
Free Arch (inches) 6.5
Hardware Included No
Leaves 2 Over 1 = 3 Leaves
Leaves Grading In Thousandths Of Inch 2@9, 2ND 1@16
Lift Height 0
Long End Attachment Type Shackle Bolt
Long End Bushing RB-260
Long End Bushing Color Black & Grey
Long End Bushing Material Rubber/Steel
Long End Eye Type Standard
Long End Length (inches) (b) 27.6875
Mfg Popularity A
Pack Thickness (inches) 1.4375
Pack Thickness (mm) 36.5125
Position Rear Left
Remarks Left, Except regular cab with 2.7L; Recalled in 2016
ShipWeight 39.8 lb
Short End Attachment Type Bolt
Short End Bushing RB-294
Short End Bushing Color Black & Grey
Short End Bushing Material Rubber/Steel
Short End Eye Type Standard
Short End Length (inches) (a) 27.6875
Width (inches) 2.375
Width (mm) 60.325

SPECIFICATIONS FOR REAR RIGHT LEAF SPRING (90-297HUS):

Rear Right Leaf Spring, 2.375″ Wide, 27.6875″x27.6875″, 3 leaves, 1.4375″ Pack Thickness

Notes : Rear Right,2/1= 3 Leaf, 1 7/16″ Pack Thickness, Double Cab, Prerunner w/Access Cab or Double Cab

Arc Length (inches) (a+b) 55.375
Arc Length (mm) 1406.52
Bushing Included Long End Yes
Bushing Included Short End Yes
Color/finish Black Paint
Free Arch (inches) 6.25
Hardware Included No
Leaves 2 Over 1 = 3 Leaves
Leaves Grading In Thousandths Of Inch 2@9, 2ND 1@16
Lift Height 0
Long End Attachment Type Shackle Bolt
Long End Bushing RB-260
Long End Bushing Color Black & Grey
Long End Bushing Material Rubber/Steel
Long End Eye Type Standard
Long End Length (inches) (b) 27.6875
Mfg Popularity A
Pack Thickness (inches) 1.4375
Pack Thickness (mm) 36.5125
Position Rear Right
Remarks Right, Except regular cab with 2.7L; Recalled in 2016
ShipWeight 39.8 lb
Short End Attachment Type Bolt
Short End Bushing RB-294
Short End Bushing Color Black & Grey
Short End Bushing Material Rubber/Steel
Short End Eye Type Standard
Short End Length (inches) (a) 27.6875
Width (inches) 2.375
Width (mm) 60.325

Additional information

Weight 39.8 lbs
Dimensions 15 × 10 × 10 in
ATTENTION STATE OF CALIFORNIA CONSUMERS. WARNING: Cancer and reproductive harm – www.p65warnings.ca.gov

Related products

$389.00

Out of stock

SKU: 90-299HUS_90-297HUS Categories: , , ,
