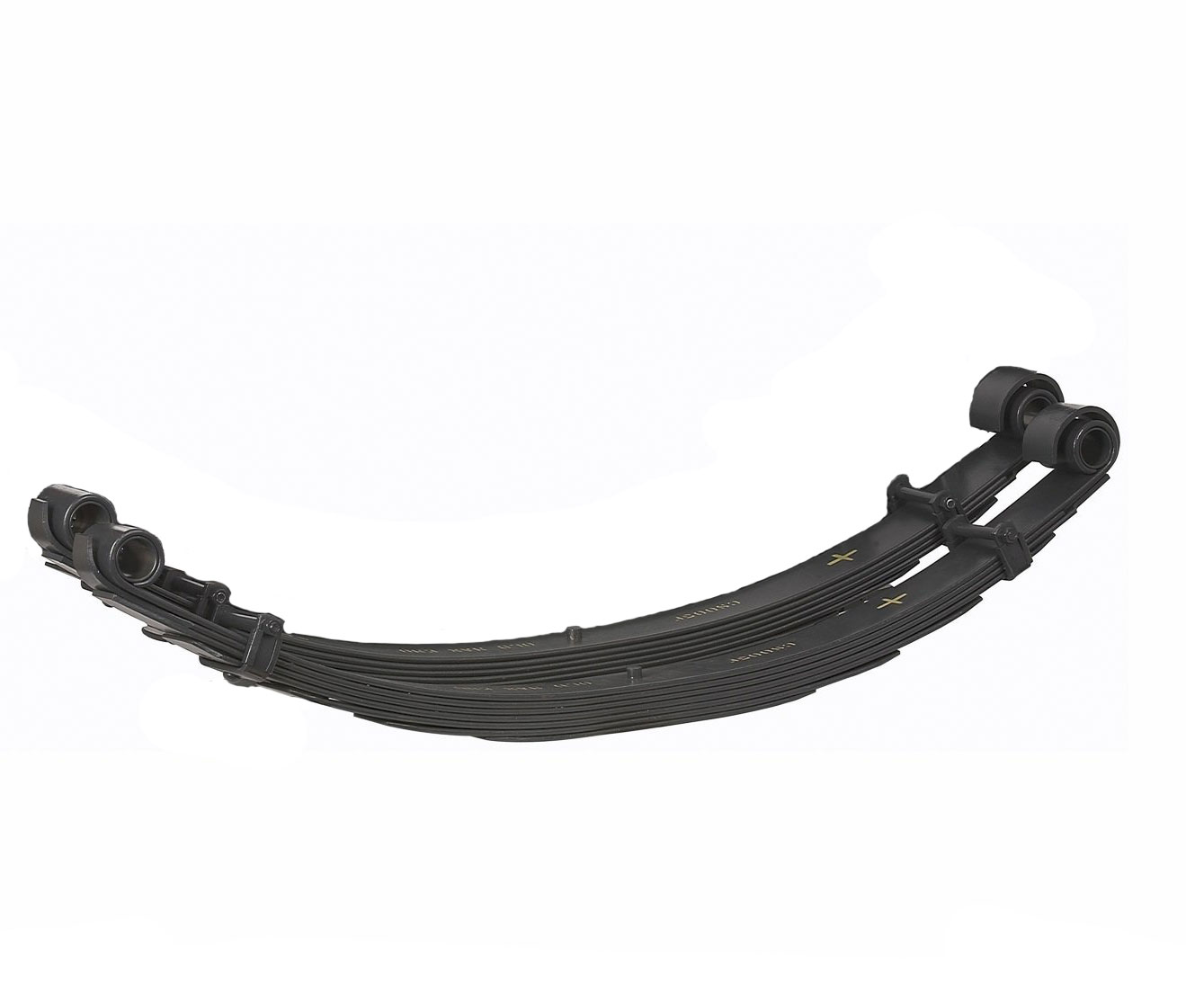

OME 2″ Rear Lift 300LB load Dakar Leaf Springs for 2016-2023 Toyota Tacoma

• Stock loads (0lbs to GVM, optimal performance at loads of 0-300lbs) *Removal of third leaf required
• Constant 300lbs (300lbs to GVM, optimal performance at loads of 300-600lbs)
• Constant 600lbs (600lbs to GVM, optimal performance at loads of 600lbs plus) *Extra leaf required
  • The removal or addition of a leaf spring would need to be completed for those individuals knowing that their rear load scenarios would be lighter or heavier than the constant 300+ lbs load the spring is designed around.

OME Dakar leaf springs feature:

• Draw Tapered & Diamond Cut Leaves: Ensure the load is progressively distributed over a larger surface area, reducing the high stresses that develop at leaf ends. This provides increased ride quality and protection against leaf breakage, significantly increasing the spring life.
• Bolt Clamps & Liners: The leaf clamps are bolted to allow installation of anti squeak nylon liners.
• Fully Scragged & Load Tested: Scragging ensures the spring takes a permanent ‘set’ which reduces the risk of sagging. Load testing ensures the spring meets the required specification.
• Graphite Coating: To further reduce the friction between the spring leaves & friction pads.
• Military Wrap: Designed to provide added safety.
• Anti Friction Pads: Regreasable nylon interleaf liners reduce friction at the leaf tips where the load is the greatest.
• Flat Axle Seat Area: Allows a positive, safe axle mount reducing spring stress & increasing spring life.
• Shot Peening: The tension side of all leaves is shot peened to reduce spring stress. This process can double the life of a spring.
• Two-stage Leaf Pack: Featured on most rear springs for optimum comfort. When unladen the vehicle is largely riding on the primary stage, with the secondary stage providing additional support when a heavy load is added.

Please note: Most Emu Dakar leaf springs have all the listed features, but where design or a physical limitation exists one or more of these features may not be incorporated. Please check with your OME licensed fitter for further information.
