Fox Performance Elite Series 2-3″ Front/Rear Lift Shock for 2005-2023 Toyota Tacoma 4WD 2.5 Coilover/Reservoir Compression Adjustable

Sale!
Fox Performance Elite Series 2-3 Front-Rear Lift Shock for 2005-2021 Toyota Tacoma 4WD 2.5 Coilover-Reservoir Compression Adjustable
Fox Performance Elite Series 2-3 Front-Rear Lift Shock for 2005-2021 Toyota Tacoma 4WD 2.5 Coilover-Reservoir Compression Adjustable

Description
Fox Performance Elite Series 2-3″ Front/Rear Lift Shock for 2005-2023 Toyota Tacoma 4WD 2.5 Coilover/Reservoir Compression Adjustable

Fox Performance Elite Series 2-3″ Front/Rear Lift Shock 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023 Toyota Tacoma 4WD 2.5 Coilover Reservoir Compression Adjustable

Part: 883-06-178_883-26-113

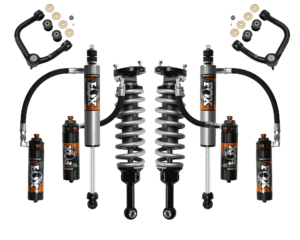

Need a kit with UCAs?

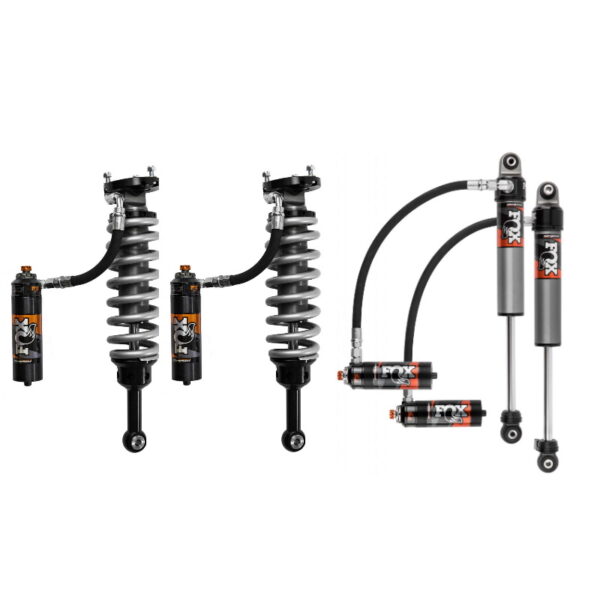

Includes: 2-3″ front and 2-3″ rear shocks

Performance Elite shocks improve the stock Tacoma platform by eliminating the vehicle’s forward rake, providing a level ride height without hindering droop travel while also increasing the suspension articulation of your truck.

Type III anodization prevents corrosion and wear of the 2.5-inch aluminum bodies, and external reservoirs efficiently dissipate heat by increasing internal oil capacity. Cooler shocks work better, longer. The reservoirs feature Dual Speed Compression (DSC) adjusters; strategically mounted to eliminate interference with aggressive tires at full lock.

Quickly adapt your shocks for load, environment, and driving style using the DSC adjusters as the high-flow piston manage stability through all types of terrain. FOX shocks are designed and engineered to support the damping of your rig and its variety of aftermarket accessories with the presumption you’re traveling deep off the grid. Realize the potential of your Tacoma on the next adventure.

FOX Performance Elite Series 2.5 shocks provide the versatility required to float over rough terrain without feeling disconnected and improve on-road manners while you remain comfortable and in control.

Front Coilover

Body 2.5″ impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
Body Plating Hard-anodized for a durable finish
Reservoir External reservoir design separates shock oil from the high-pressure nitrogen
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 7/8″ hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow piston design
Valving Application specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Bearing PTFE-lined, heat-treated, alloy steel spherical
Adjuster Type DSC – Dual Speed Compression
Extended 21.870
Compressed 16.640
Travel 5.230
Top Mount OEM
Bottom Mount Eyelet
Fitment notes Fits 6 lug version only | Requires Upper Control Arm

Rear Shocks

Body 2.5″ impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
Body Plating Hard-anodized for a durable finish
Reservoir External reservoir design separates shock oil from the high-pressure nitrogen
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 7/8″ hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow piston design
Valving Application specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Bearing PTFE-lined, heat-treated, alloy steel spherical
Adjuster Type DSC – Dual Speed Compression
Extended 24.900
Compressed 15.350
Travel 9.550
Top Mount Stem Top
Bottom Mount Eyelet
Fitment notes Fits 6 lug version only

Additional information

Weight 100 lbs
Dimensions 20 × 10 × 10 in
ATTENTION STATE OF CALIFORNIA CONSUMERS. WARNING: Cancer and reproductive harm – www.p65warnings.ca.gov

Related products

Original price was: $3,835.88.Current price is: $3,576.24.

In stock

SKU: 883-06-178_883-26-113 Categories: , Brand:
