Bilstein B8 5100 0-2.4″ Front Lift Assembled Coilovers for 2022-2025 Toyota Tundra

Bilstein B8 5100 0-2.4" Front Lift Assembled Coilovers for 2022-2025 Toyota Tundra
Bilstein B8 5100 0-2.4" Front Lift Assembled Coilovers for 2022-2025 Toyota Tundra

Description
Bilstein B8 5100 0-2.4″ Front Lift Assembled Coilovers for 2022-2025 Toyota Tundra

Bilstein B8 5100 0-2.4″ Front Lift Assembled Coilovers for 2022, 2023, 2024, 2025 Toyota Tundra

Part: BTU22C

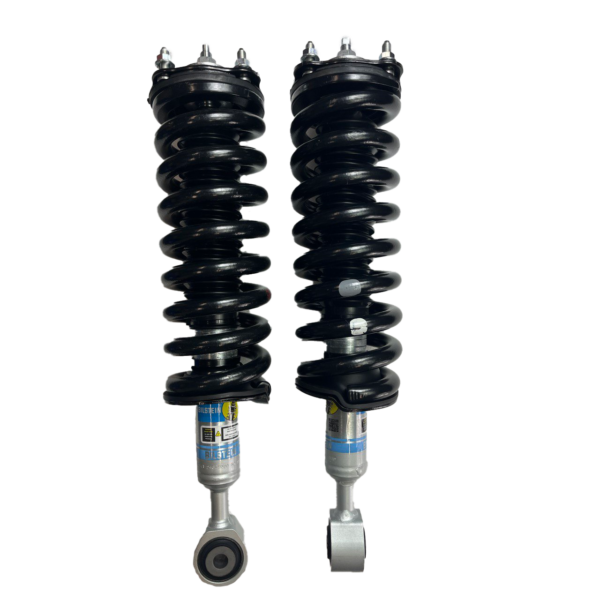

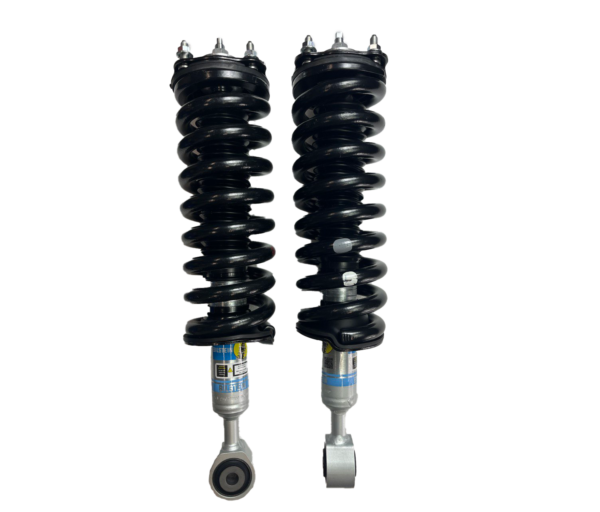

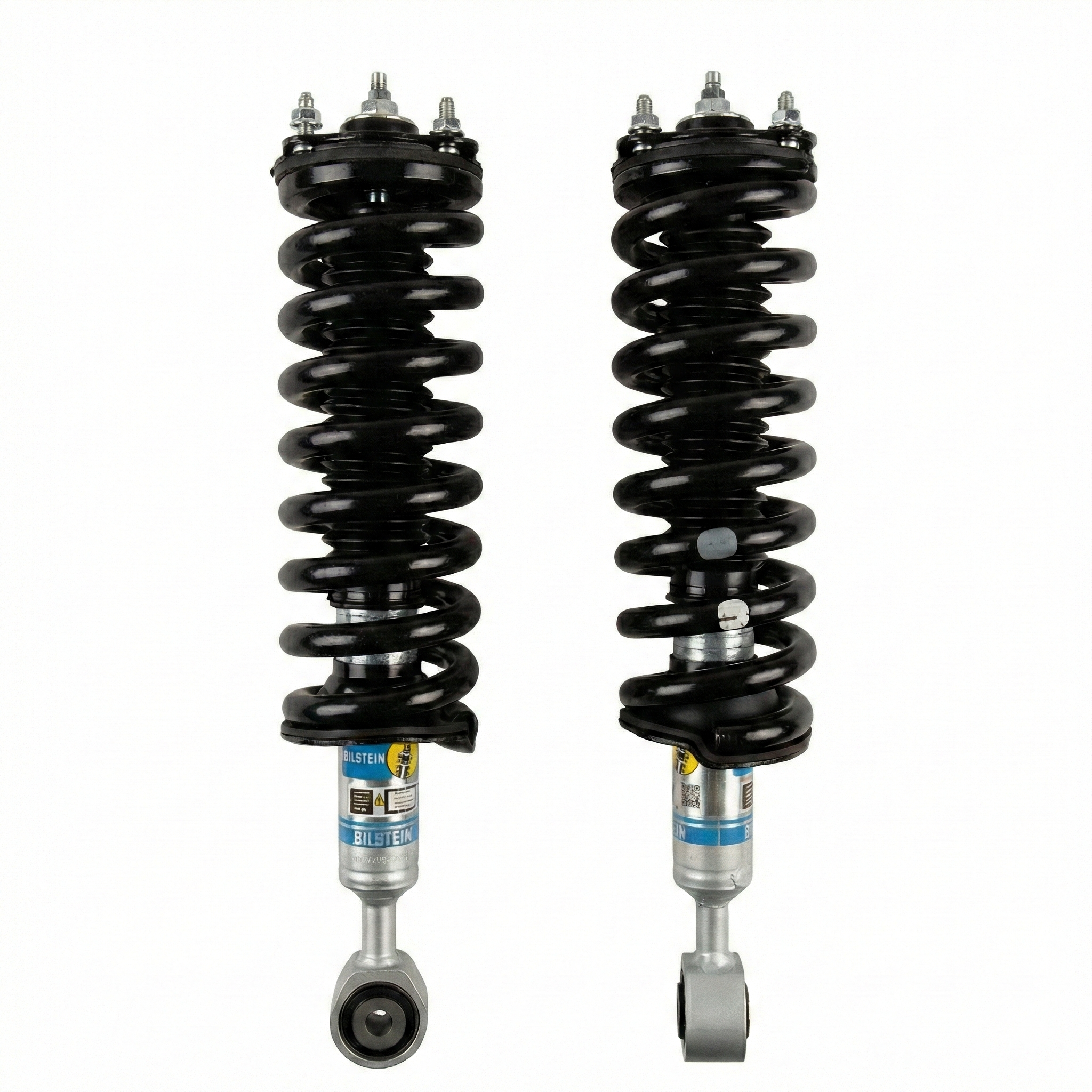

Assembled Coilovers with new top mounts, OEM Coil Springs and necessary hardware.

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Collapsed Length (in) :15.91

Extended Length (in) :20.22

Collapsed Length (mm) :404.0

Extended Length (mm) :513.5

Finish :Zinc Plated

Reservoir :No

Body Design :Snap Ring Grooved Body (Coilover)

Body Diameter (id) :46mm

Spring Seat Included :Yes

Adjustable Damping :Non-Adjustable

Additional information

Weight 51.6 lbs
Dimensions 30 × 10 × 8 in
