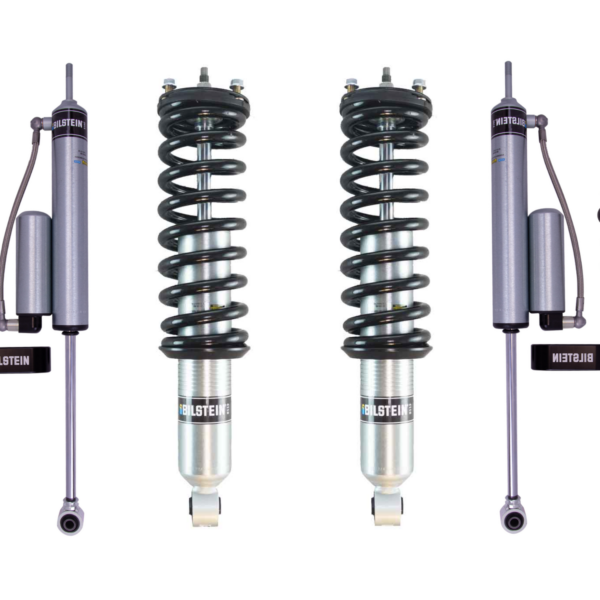

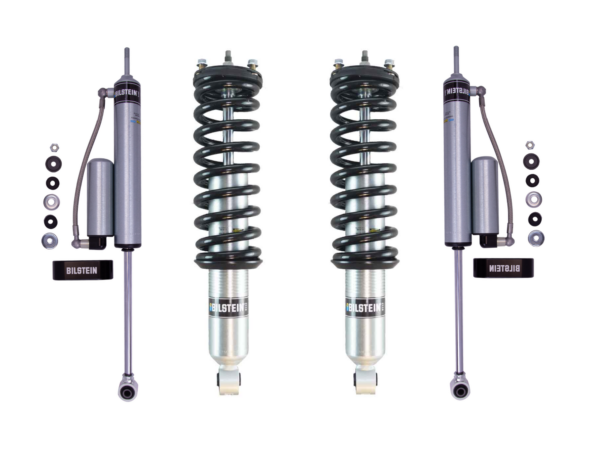

Bilstein 6112 0-2.5″ Front Lift Coilovers and 5160 0-2″ Rear Lift Shocks for 2000-2006 Toyota Tundra

Bilstein 6112 0-2.5 Front Lift Coilovers and 5160 0-2 Rear Lift Shocks for 2000-2006 Toyota Tundra
47-310049 - clip settings
Bilstein 6112 0-2.5 Front Lift Coilovers and 5160 0-2 Rear Lift Shocks for 2000-2006 Toyota Tundra
47-310049 - clip settings

Description
Bilstein 6112 0-2.5″ Front Lift Coilovers and 5160 0-2″ Rear Lift Shocks for 2000-2006 Toyota Tundra

Bilstein 6112 0-2.5″ Front Lift Coilovers and 5160 0-2″ Rear Lift Shocks for 2000, 2001, 2002, 2003, 2004, 2005, 2006 Toyota Tundra 4WD/2WD

Part: 47-310049-ASB-2 (old: 47-260337)_2x25-311273

Need a kit with rear Bilstein 5100 Shocks?

*COMES ASSEMBLED*

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

Series: B8 6112
Drive Type: 4WD/2WD
Position: Front
Quantity Per Vehicle: 1
Finish: Zinc Plated
Reservoir: No
Body Design: 60mm ID Snap Ring Grooved Body (Coilover)

Contains linear, 650lb., 14″ black coil springs

Crew cab: 0.31″-2″ Lift

Access cab: 0-1″ Lift

2WD: 0-2.5″

Download Installation Instructions

REAR SHOCK SPECIFICATIONS:

Series: 5160

Rear Extended Length(in): 23.26

Rear Collapsed Length(in): 13.84

Part Number: 25-311273 new version (25-261332 previous part)

Rear Shocks Fitment Notes:

Fitment: Bilstein 5160 0-2″ Rear Lift Shocks 00-’06 Toyota Tundra 4WD/2WD

Important fitment notes:
Includes 2 Shocks

Additional information

Weight 51.01 lbs
Dimensions 24.01 × 10.01 × 5.51 in
ATTENTION STATE OF CALIFORNIA CONSUMERS. WARNING: Cancer and reproductive harm – www.p65warnings.ca.gov

Related products

$1,499.95

In stock

SKU: 47-310049-ASB-2_2x25-311273 Categories: , , Brand:
