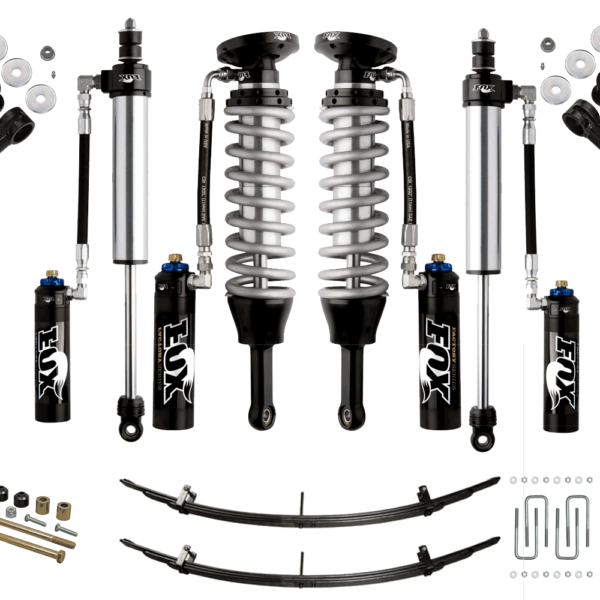

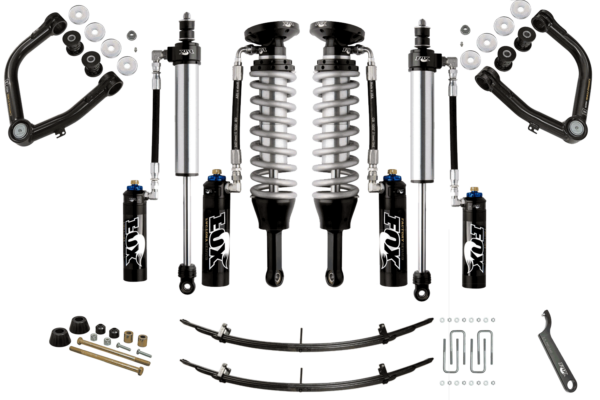

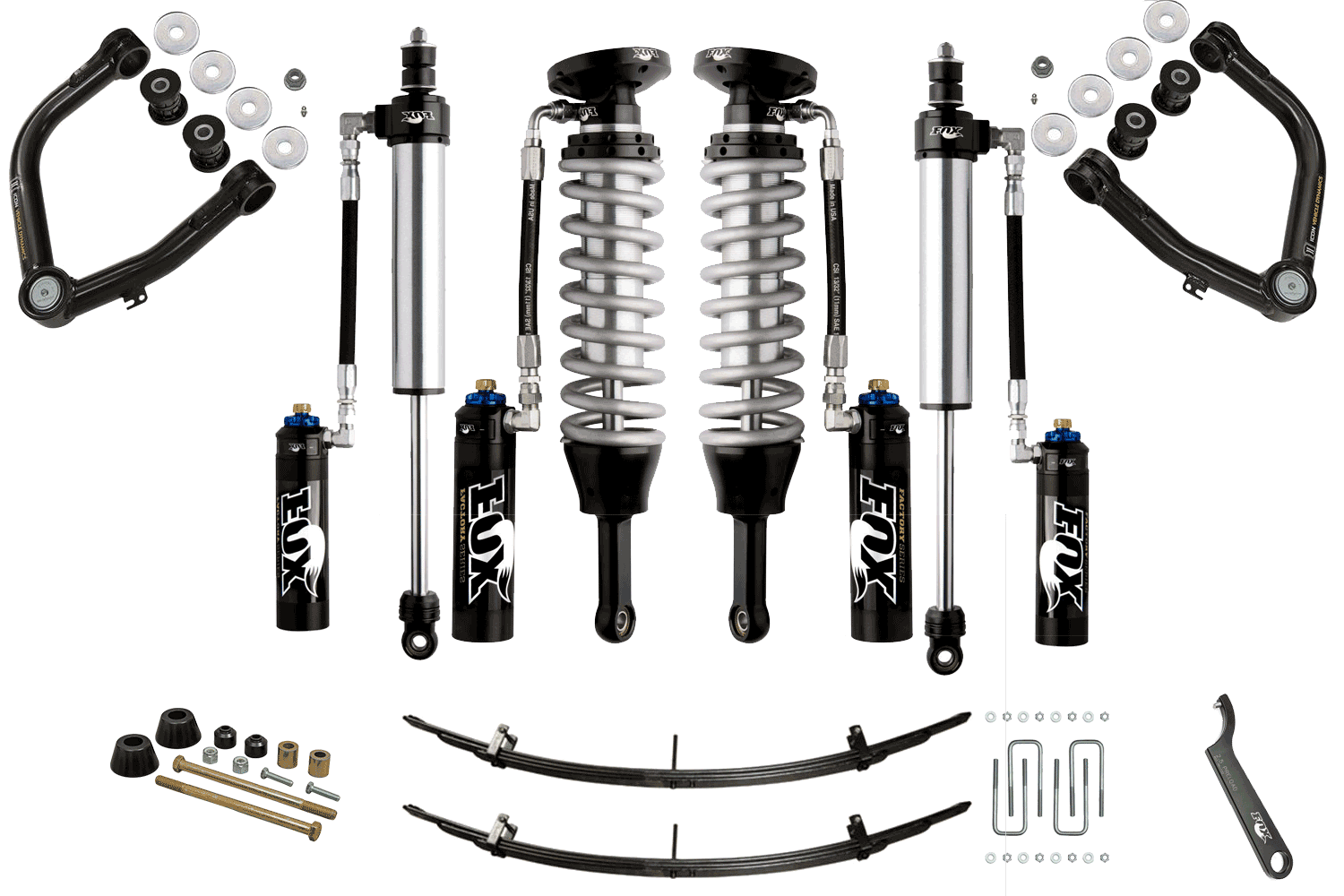

FOX 0-3″ Ultimate Suspension Lift Kit for 2007-2021 Toyota Tundra

FOX Ultimate Suspension Lift Kit for 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026, 2022, 2023, 2024, 2025, 2026, 2022, 2023, 2024, 2025, 2026, 2022, 2023, 2024, 2025, 2026 Toyota Tundra

Part: UL-FOXTU07

Fits 2005+ Tundra

Fox is very high quality with a known name brand. It is more economical than an ICON kit yet it is still very high quality and handles high speed off-road conditions more than a standard Bilstein/OME Kit. The shocks are re-buildable remote reservoir for superior on and off-road handling and performance.

This is the best of the best!

Product: Front Coilovers

Model Number: 880-06-947

Features:

• Extended length front coilovers with DSC adjuster
• Duel Speed Compression (DSC) adjuster for control and comfort tuning on-road and more aggressive damping off-road
• Simple twist of two clearly defined knobs for precise suspension tuning
• Increases low and high-speed compression levels up to 25%
• Provides small bump compliance and traction, as well as extra damping for big hits
• Includes spanner wrench for adjustment
• Offers 0-3″ of lift
• 2.5″ smooth bore and honed seamless alloy bodies
• Zinc-plated and double-clear coated for long-lasting finish
• 2.5″ smooth bore 6061-T6 aluminum is hard anodized black
• Black-anodized, CNC-machined 6061-T6 billet aluminum
• 7/8″ hardened NitroSteel® Steel carbon shafts
• 6061-T6 hard-anodized, high flow aluminum piston
• Application-specific valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• PTFE-lined, heat-treated, alloy steel spherical bearing

Product: Rear Shocks

Model Number: 883-26-006

Features:

• 2.5″ Factory Series Reservoir Rear Shocks with DSC Adjuster
• Duel Speed Compression (DSC) adjuster for control and comfort tuning on-road and more aggressive damping off-road
• Simple twist of two clearly defined knobs for precise suspension tuning
• Provides small bump compliance and traction, as well as extra damping for big hits
• Offers 0-1.5″ of lift
• 2.5″ smooth bore and honed seamless alloy bodies
• Zinc-plated and double-clear coated for long-lasting finish
• External reservoir – 2.5″ smooth bore and honed seamless alloy reservoir
• 7/8″ hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• Direct replacement mounting

Product: Upper Control Arms

Model Number: 58460DJ

Features:

• ICON Delta Joint
• 1026 DOM Steel Construction
• CNC Bent Tubing
• Serviceable Dual Stage Bushings
• CNC Machined Bushing Housings and Sleeves
• Built-In Caster Correction
• Black Semi-Gloss Powder Coat Finish

Product: Add-A-Leaf

Model Number: 51200

Features:

• ICON Rear Add A Leaf

Product: Revtek Differential Drop Kit

Model Number: RTDD3-KB

Features:

• Fits 2007-2021 Tundra 4×4

Tire Size Information:

• We have not tested every wheel/tire size on these trucks, but 285/65/18, 285/65/20, and 305/55/20 tires have been used.
• We do not guarantee tire/wheel fitment due to variations between different wheel and tire manufacturers specs.
• We recommend “Test fitting” any aftermarket tire or wheel you are considering.
