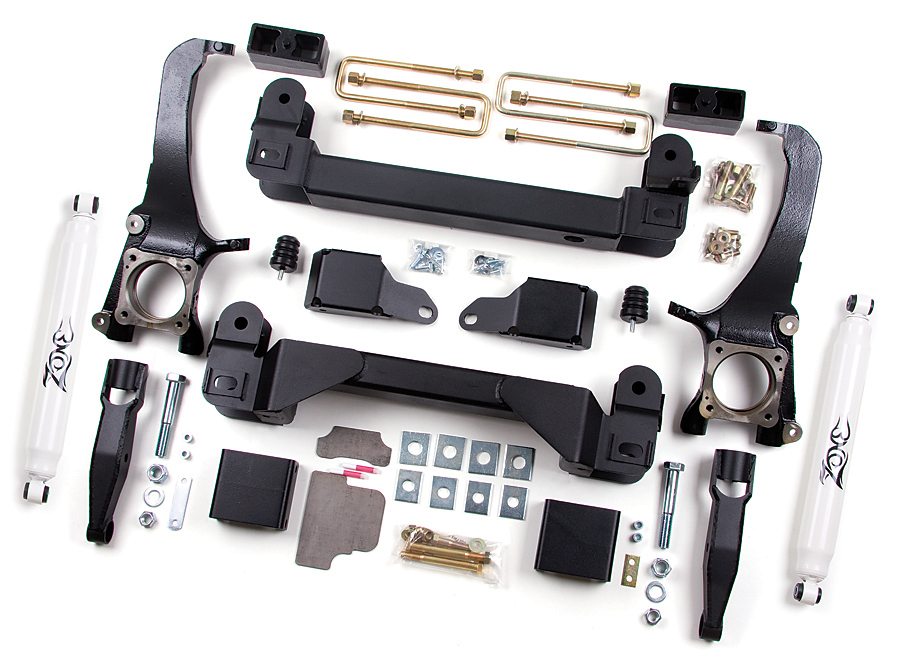

T1 - Zone Offroad 5" Lift Kit Suspension System for 2007-2015 Toyota Tundra
T1 - Zone Offroad 5" Lift Kit Suspension System for 2007-2015 Toyota Tundra

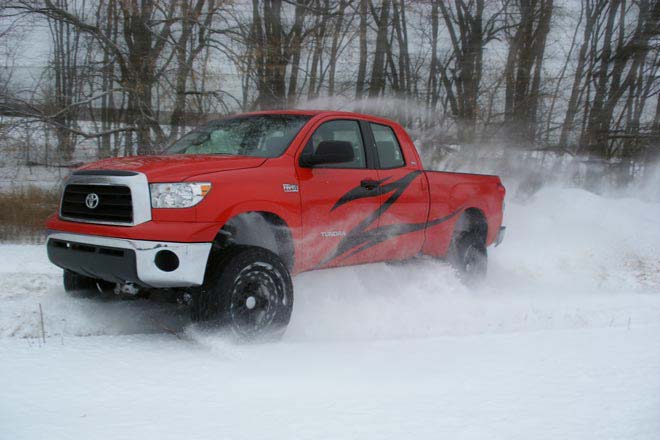

T1 - Zone Offroad 5" Lift Kit Suspension System for 2007-2015 Toyota Tundra - installed - red tundra - driving on the snow

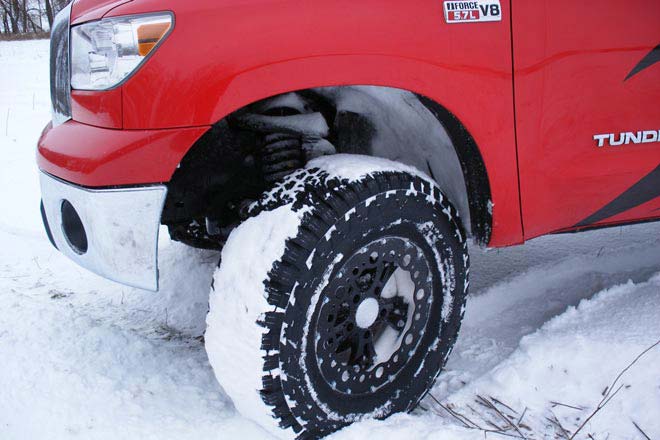

T1 - Zone Offroad 5" Lift Kit Suspension System for 2007-2015 Toyota Tundra - installed - red tundra - front tire view

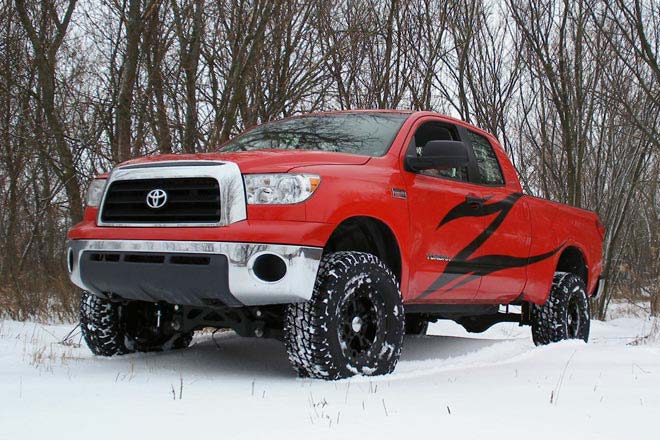

T1 - Zone Offroad 5" Lift Kit Suspension System for 2007-2015 Toyota Tundra - installed - red Tundra - on the snow - front

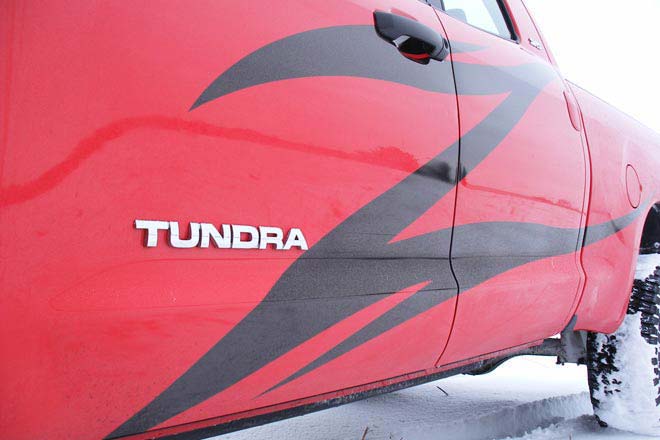

T1 - Zone Offroad 5" Lift Kit Suspension System for 2007-2015 Toyota Tundra - installed - red tundra - rear view

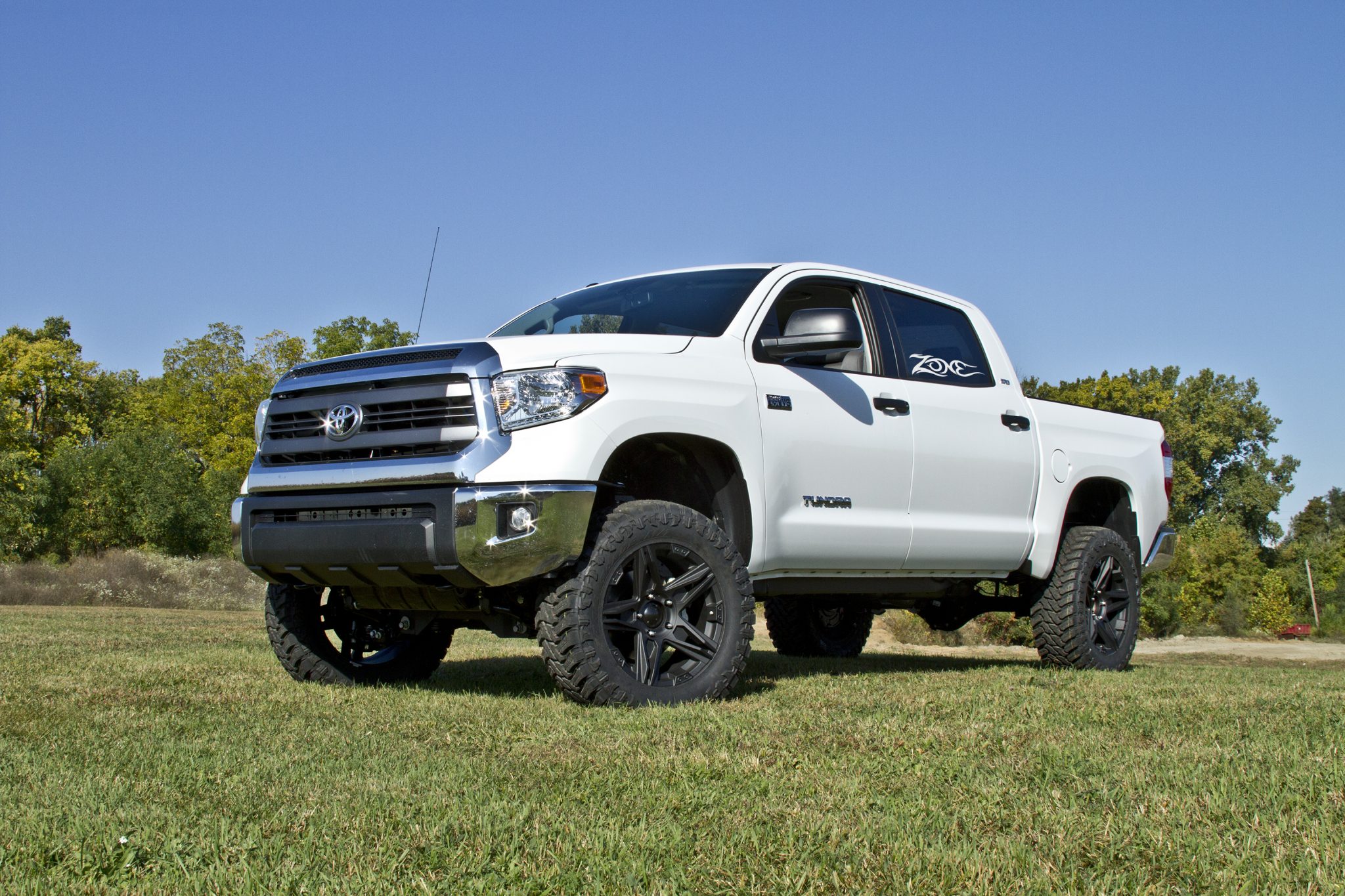

T1 - Zone Offroad 5" Lift Kit Suspension System for 2007-2015 Toyota Tundra - installed - white tundra - front view

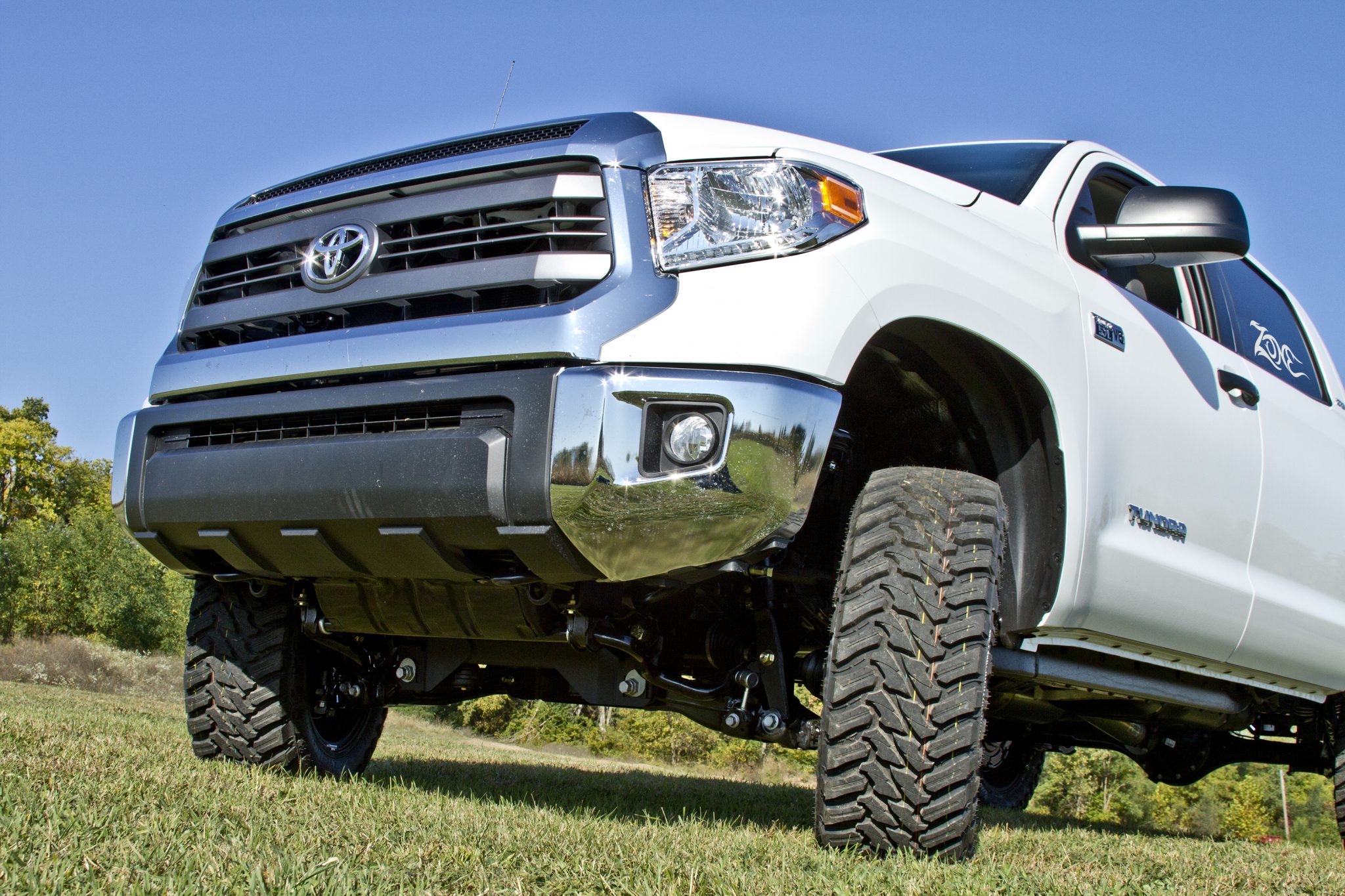

T1 - Zone Offroad 5" Lift Kit Suspension System for 2007-2015 Toyota Tundra - installed on white tundra - front under view
T1 - Zone Offroad 5" Lift Kit Suspension System for 2007-2015 Toyota Tundra
T1 - Zone Offroad 5" Lift Kit Suspension System for 2007-2015 Toyota Tundra
T1 - Zone Offroad 5" Lift Kit Suspension System for 2007-2015 Toyota Tundra - installed - red tundra - driving on the snow
T1 - Zone Offroad 5" Lift Kit Suspension System for 2007-2015 Toyota Tundra - installed - red tundra - front tire view
T1 - Zone Offroad 5" Lift Kit Suspension System for 2007-2015 Toyota Tundra - installed - red Tundra - on the snow - front
T1 - Zone Offroad 5" Lift Kit Suspension System for 2007-2015 Toyota Tundra - installed - red tundra - rear view
T1 - Zone Offroad 5" Lift Kit Suspension System for 2007-2015 Toyota Tundra - installed - white tundra - front view
T1 - Zone Offroad 5" Lift Kit Suspension System for 2007-2015 Toyota Tundra - installed on white tundra - front under view

Description
T1N – Zone Offroad 5″ Lift Kit Suspension for 2007-2016 Toyota Tundra

T1N – Zone Offroad 5″ Lift Kit Suspension System for 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016 Toyota Tundra

T1N – Zone Offroad 5″ Suspension System for 07-16 Tundra

We all know the new Tundra has some serious power. Now Zone Offroad Products offers a suspension to make your Tundra into an offroad machine. New CNC machined ductile iron knuckles are included to correct steering geometry and ease installation. The heavy duty, boxed crossmembers have integrated differential mounts to lock everything together. The lower strut mounts make for an easy installation with no disassembly of the strut required.
Fits:
  • 07-14 Toyota Tundra 2WD
  • 07-15 Toyota Tundra 4WD
Featured Technology & Benefits
  • Ductile Iron, CNC machined steering knuckles maintain factory steering geometry
  • No disassembly of the strut required
  • Easy install with detailed instructions
  • Maintains factory ride
  • Heavy duty boxed one piece crossmembers
  • Multi-point differential mounting system corrects drive line angles
  • Rear block kit for easy installation
  • This kit includes the upgraded rear Nitro shocks (part # 7952)

Important Notes!

  • ***Will NOT work on 2015 TRD Pro Models.***
  • ***Will work with Bilstein (yellow) factory front struts on 2014-2015 models.***
  • Welding required
  • Stock 18″ wheels can not be installed. factory 20″ wheels with more than 6.25″ backspacing can not be installed.
  • Vehicles equipped with a two pice rear driveshaft and carrier bearing will need the carrier bearing drop kit (part # T5409)
  • 2WD models may require rear driveline modification

Specifications:

  • Front Lift Height: 5″
  • Front Lift Method: IFS System
  • Rear Lift Height: 3″
  • Rear Lift Method: Block Kit
  • Install Time Hrs: 8 Hrs
  • Difficulty Level 1-5: 3
  • Wheel Size: 18×9
  • Back Spacing: 5.5″
  • Max Tire Size: 35 x 12.50
  • Wheel Size: 20×9
  • Back Spacing: 5.5″ – 6.25″
  • Max Tire Size: 35 x 12.50

Additional information

Weight 75 lbs
Dimensions 32 × 12 × 10 in
