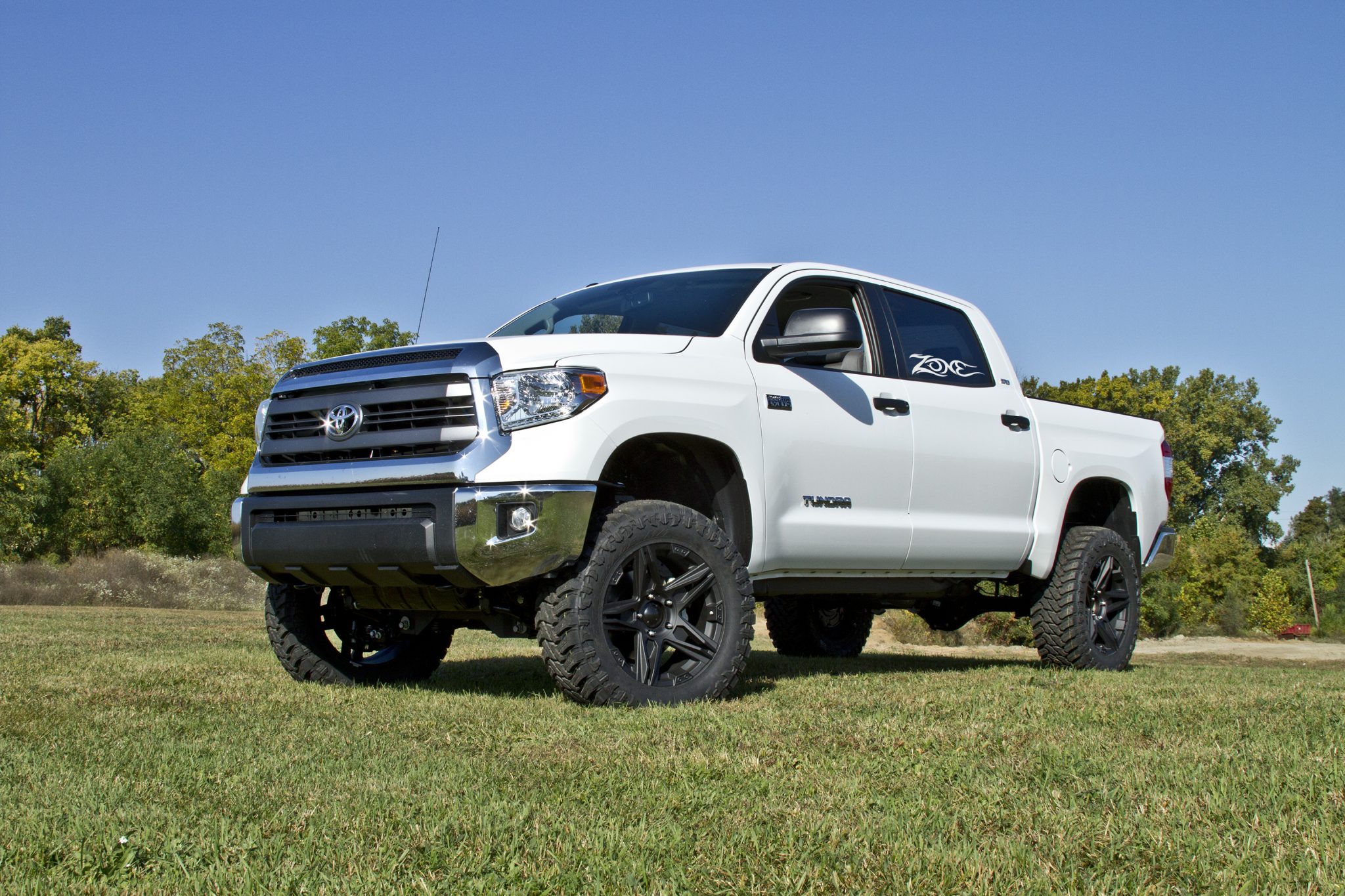

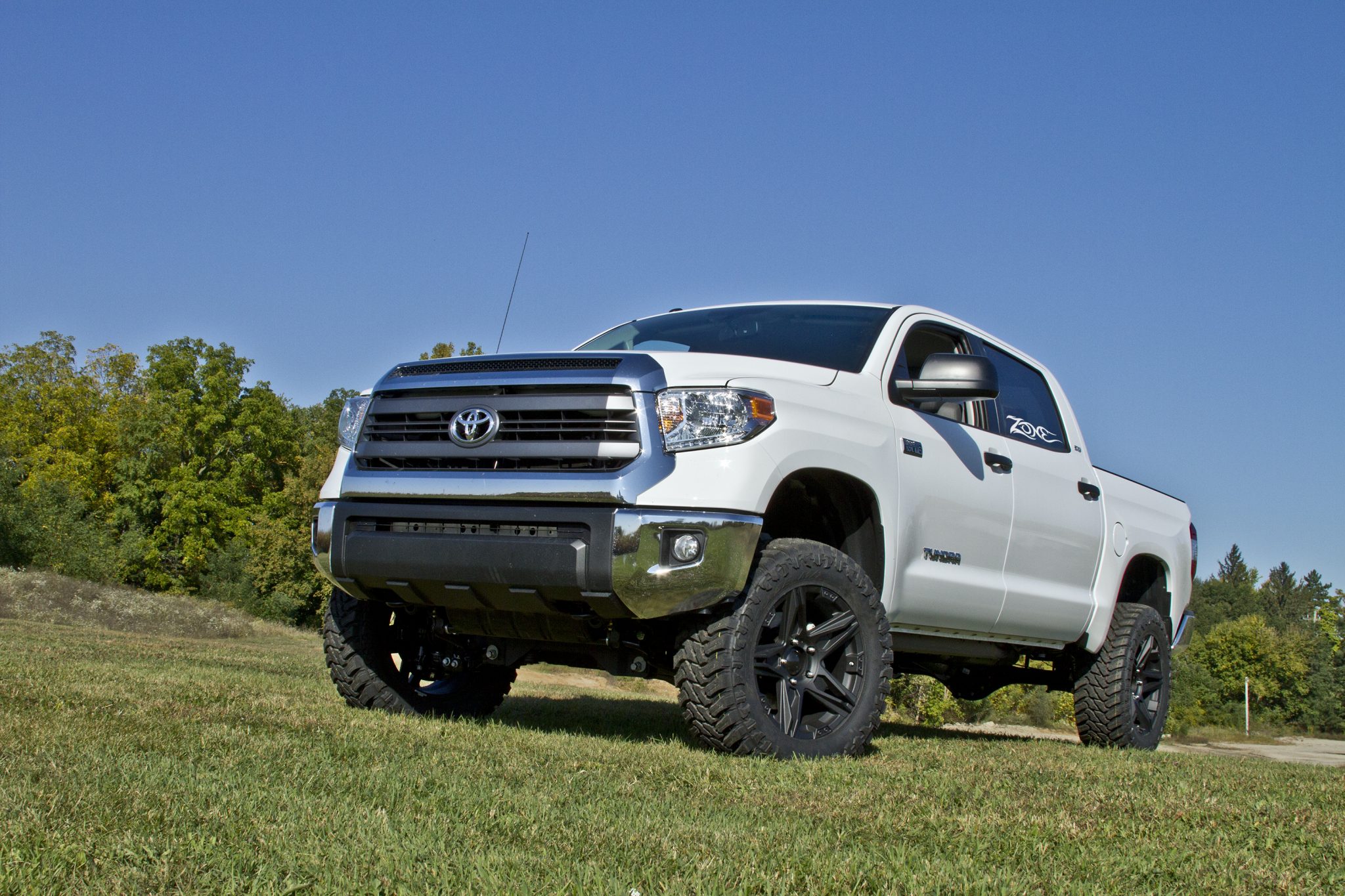

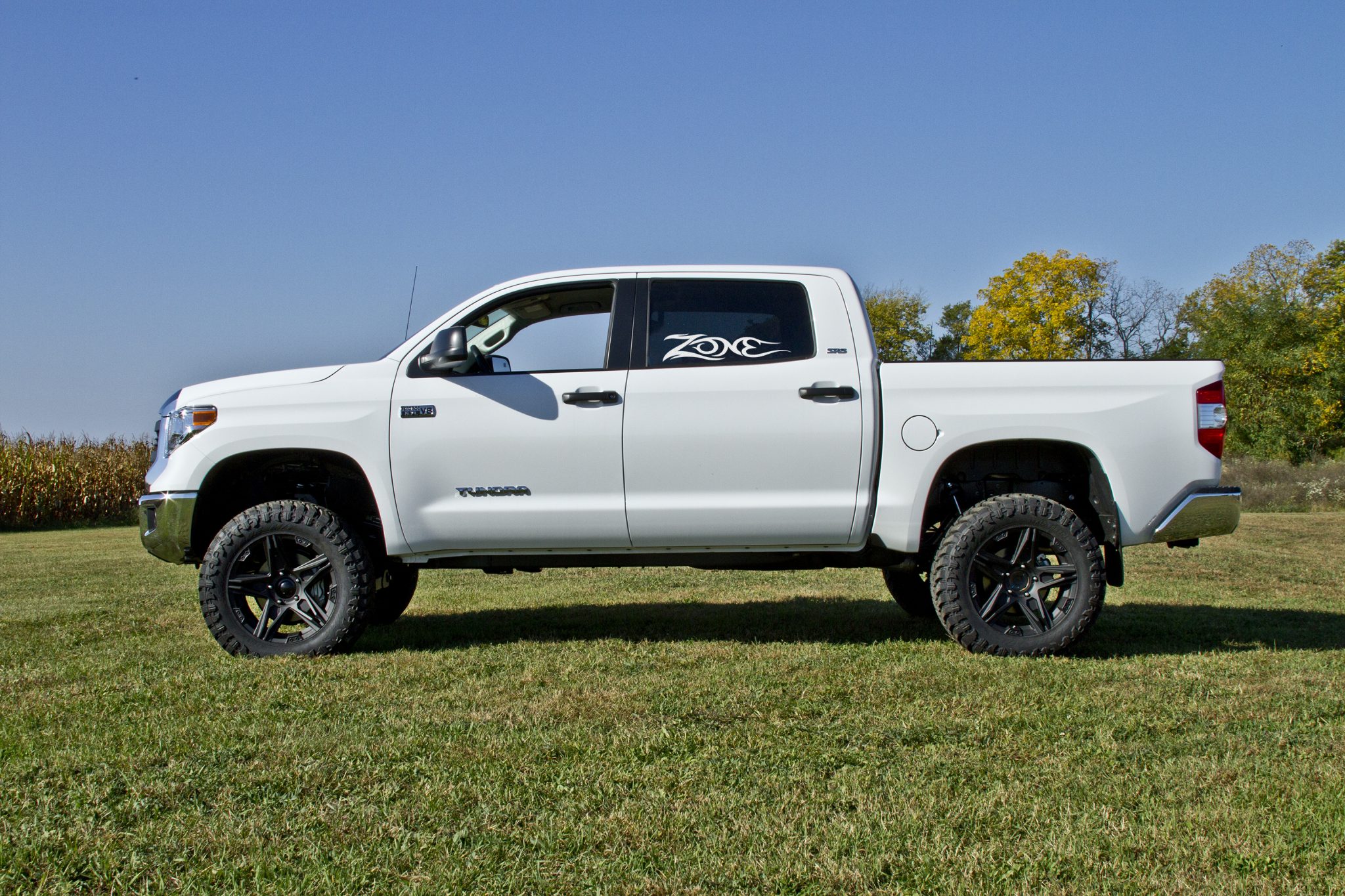

Zone Offroad 5″ IFS System Lift Kit 2016-2020 Toyota Tundra 4×4

Description
Zone Offroad 5″ IFS System Lift Kit 2016-2020 Toyota Tundra 4×4

Zone Offroad 5″ IFS System Lift Kit 2016, 2017, 2018, 2019, 2020 Toyota Tundra 4×4

Part: T5N

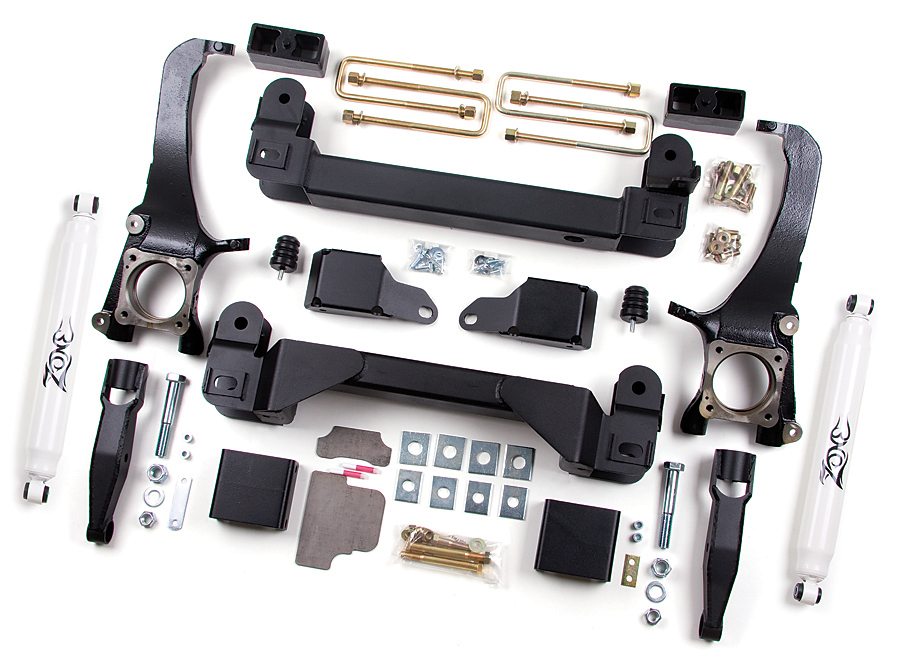

Now Zone Offroad Products offers a suspension system to take your new 2016 Tundra to the next level. New CNC machined ductile iron knuckles are included to correct steering geometry and ease installation. The heavy duty, boxed crossmembers have integrated differential mounts to lock everything together. The lower strut mounts make for an easy installation with no disassembly of the strut required.

Featured Technology & Benefits

• Ductile Iron, CNC machined steering knuckles maintain factory steering geometry
• No disassembly of the strut required
• Easy install with detailed instructions
• Maintains factory ride
• Heavy duty boxed one piece crossmembers
• Multi-point differential mounting system corrects drive line angles
• Rear block kit for easy installation

Important Notes!

• ***Will NOT work on 2016 TRD Pro (Bilstein Piggyback Strut) Models.***
• ***Will work with Bilstein (yellow) factory front struts on 2014-2016 models.***
• Welding required
• Stock 18″ wheels can not be installed. factory 20″ wheels with more than 6.25″ backspacing can not be installed.
• Vehicles equipped with a two pice rear driveshaft and carrier bearing will need the carrier bearing drop kit (part # T5409)
• 2WD models may require rear driveline modification

This product fits the following applications:

• 2016 Toyota Tundra 4WD
• 2017 Toyota Tundra 4WD

Quick Specs

• Front Lift Height: 5″
• Front Lift Method: IFS System
• Rear Lift Height: 3″
• Rear Lift Method: Block Kit
• Install Time Hrs: 8 Hrs
• Difficulty Level 1-5: 3
• Wheel Size: 18×9
• Back Spacing: 5.5″
• Max Tire Size: 35 x 12.50
• Wheel Size: 20×9
• Back Spacing: 5.5″ – 6.25″
• Max Tire Size: 35 x 12.50
