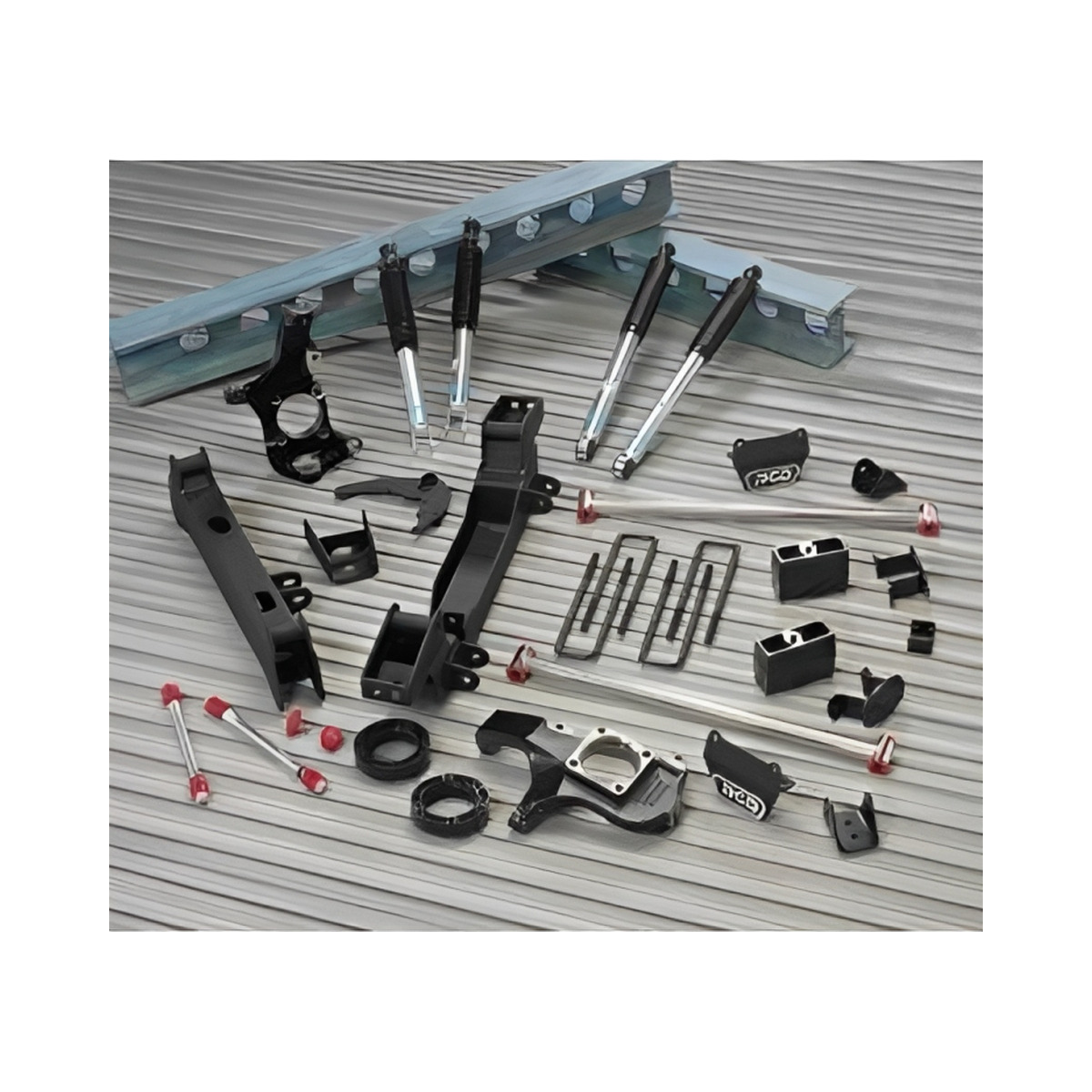

RCD 4.5″-6″ Lift Kit with Bilstein 5100 Shocks for Chevy/GMC 2500HD, 3500 2001-2010

RC 4.5″-6″ Lift Kit / Suspension System with Bilstein 5100 Series Shock Absorbers – Chevrolet / GMC, 8-lug, 2500HD, 3500 (Single Rear Wheel), 4wd, Standard Torsion Bar Suspension

RCD Suspension: Part # 10-41800

Chevy/GMC 8-lug, 2500HD, 3500 (Single Rear Wheel), 4wd, Standard Torsion Bar Suspension

Year: 2001-2010

Make: Chevy/GMC

Model(s): 2500HD, 3500 (Single Rear Wheel)

Drive Type: 4WD

Lift Height: 4.5″ – 6″

Available Shocks: F4-BE5-6135-T6 (front), F4-BE5-6134-T5 (Rear)

F4-BE5-6135-T6 Ext: 21.45″ and Coll: 13.51″
F4-BE5-6134-T5 Ext: 29″ and Coll: 17.74″

Download RCD 10-41800 Installation Instructions

RCD 4.5″-6″ Lift Kit 10-41800

Fits:

• 2001 Chevy/GMC 2500HD, 3500
• 2002 Chevy/GMC 2500HD, 3500
• 2003 Chevy/GMC 2500HD, 3500
• 2004 Chevy/GMC 2500HD, 3500
• 2005 Chevy/GMC 2500HD, 3500
• 2006 Chevy/GMC 2500HD, 3500
• 2007 Chevy/GMC 2500HD, 3500
• 2008 Chevy/GMC 2500HD, 3500
• 2009 Chevy/GMC 2500HD, 3500
• 2010 Chevy/GMC 2500HD, 3500

We only recommended a 17 & larger by 8″ Wheel with a maximum backspacing of
4.625″. We don’t deal with offset, only backspacing. Anything larger than
the maximum backspacing will cause the spindles to hit the wheel.
