Zone Offroad 3" Upper Control Arms Lift Kit 2001-2010 Chevy/GMC 2500/3500HD 4WD
Base Price: Original price was: $884.24.$795.82Current price is: $795.82.
Zone Offroad 3" Coil Springs Lift Kit 1997-2006 Jeep Wrangler TJ
Base Price: $360.75
Zone Offroad 3″ Torsion Lift Kit 2011-2019 Chevy/GMC 2500HD/3500HD
Base Price: Original price was: $943.20.$848.88Current price is: $848.88.
Out of stock
Description
Zone Offroad 3″ Torsion Keys Lift Kit 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019 Chevy/GMC 2500HD/3500HD
Part:Â C37N/C38N
Zone Offroad Products 2011-2019 Chevy 2500HD 3″ Adventure Series Lift System.
This new system uses the popular Zone Adventure Series boxed steel upper control arm design along with traditional torsion key technology in order to gain 3″ of lift. By using the new fabricated arms, equipped with factory style ball joints and rubber bushings, the system is able to maintain a better quality ride and suspension travel over standard “leveling kits”. In addition, a front differential drop is included to keep CV angles within the factory operating range.
Rear 2″ blocks bring the rear up to give a very slight tail high stance allowing the truck to be used as it was intended without having a saggy ride. Front and rear Nitro shocks come standard to round out this simple yet advanced suspension system.
Featured Technology & Benefits
- Heavy Duty Boxed Steel Upper Control Arms
- Factory style ball joints and rubber bushings
- Improved ride quality and suspension travel over standard “leveling kits”
- Front and Rear Nitro Gas shocks included
- Front differential drop included to correct CV shaft angles
- Nets a slightly tail high stance with included 2″ rear blocks
- Clear 35×12.50 tires on 18×9 & 20×9 wheels (6″ backspacing required)
- Available for both overload and non-overload equipped trucks
- UCAs utilize a replaceable ball joint that can be found at most local auto parts stores if ever needed
- Limited Lifetime Warranty
- Over 90% Made in the USA
Important Notes!

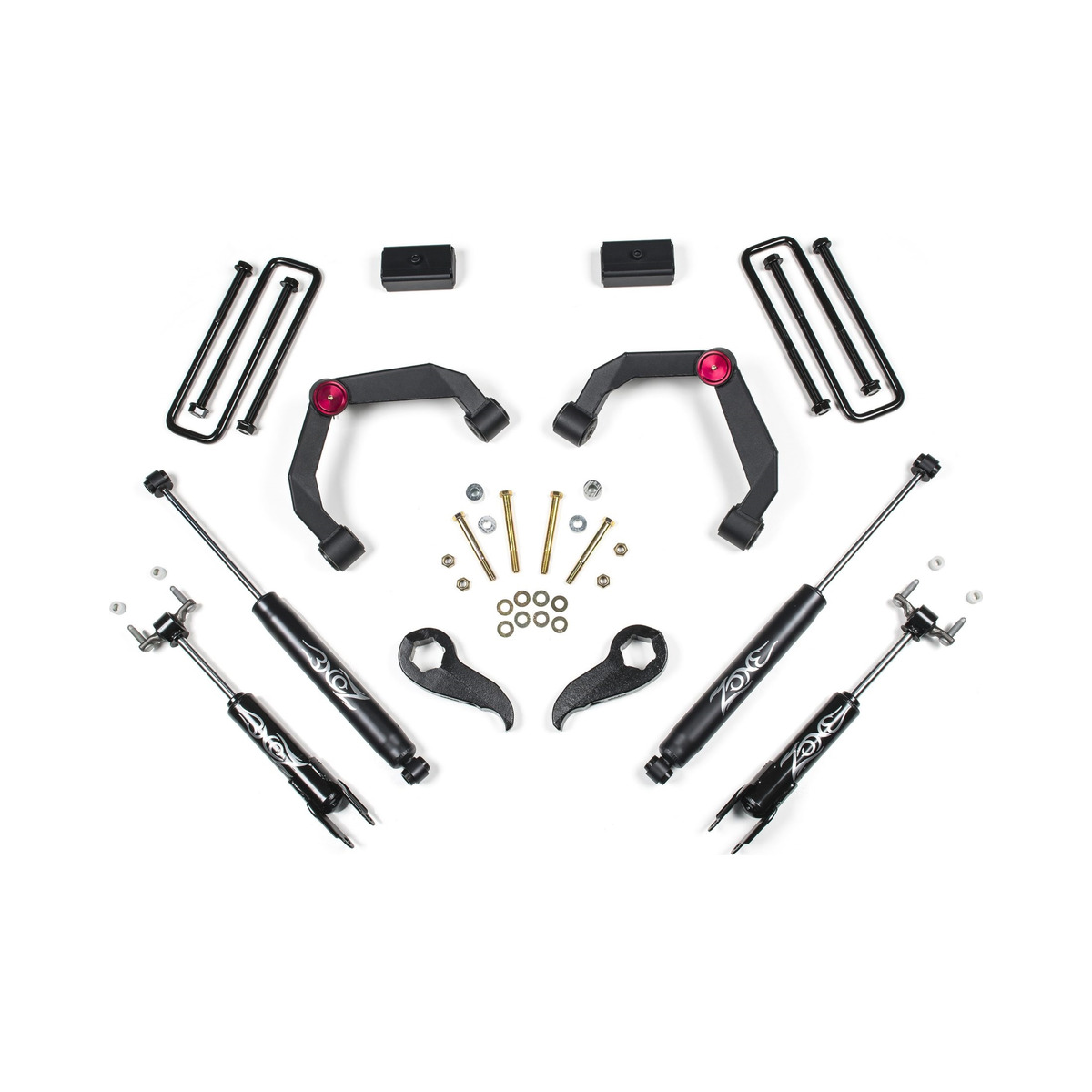

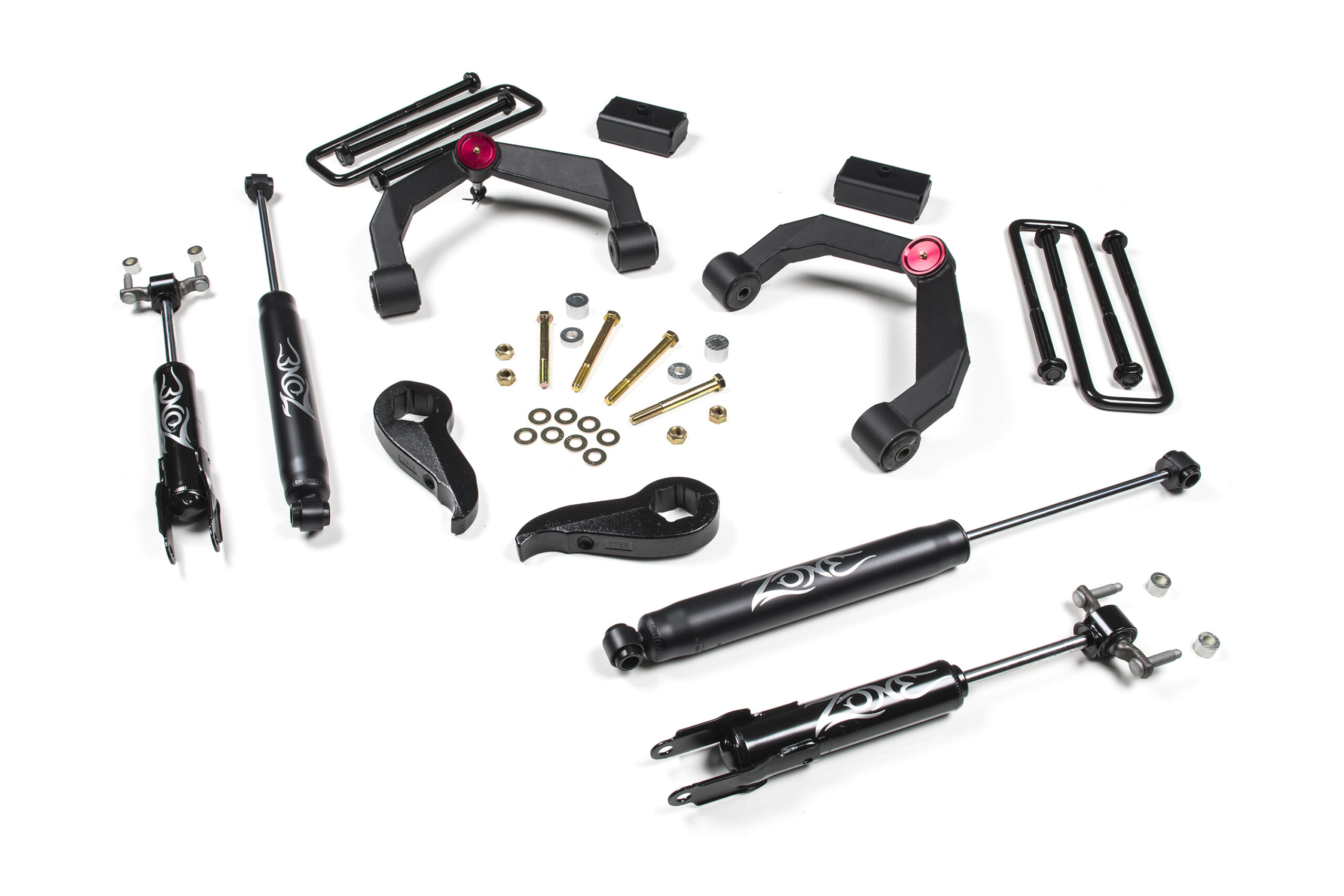

- *Kit images show upgraded Nitro (black) shocks*
- Minor trimming may be required, especially if a wheel backspace of less the specified is used
- Proper torsion bar unloading tool required for installation
- Not designed to work on dually models
- Available for models with and without top mounted rear overload springs – be sure to select correct kit below for your application.
- Optional steering stabilizers (3103/7103) only fit vehicles that came equipped with a steering stabilizer from the factory.
This product fits the following applications:
- 2011 Chevy 2500HD Pickup 4WD
- 2012 Chevy 2500HD Pickup 4WD
- 2013 Chevy 2500HD Pickup 4WD
- 2014 Chevy 2500HD Pickup 4WD
- 2015 Chevy 2500HD Pickup 4WD
- 2016 Chevy 2500HD Pickup 4WD
- 2017 Chevy 2500HD Pickup 4WD
- 2018 Chevy 2500HD Pickup 4WD
- 2019 Chevy 2500HD Pickup 4WD
- 2011 Chevy 3500HD Pickup 4WD
- 2012 Chevy 3500HD Pickup 4WD
- 2013 Chevy 3500HD Pickup 4WD
- 2014 Chevy 3500HD Pickup 4WD
- 2015 Chevy 3500HD Pickup 4WD
- 2016 Chevy 3500HD Pickup 4WD
- 2017 Chevy 3500HD Pickup 4WD
- 2018 Chevy 3500HD Pickup 4WD
- 2019 Chevy 3500HD Pickup 4WD
- 2011 GMC 2500HD Pickup 4WD
- 2012 GMC 2500HD Pickup 4WD
- 2013 GMC 2500HD Pickup 4WD
- 2014 GMC 2500HD Pickup 4WD
- 2015 GMC 2500HD Pickup 4WD
- 2016 GMC 2500HD Pickup 4WD
- 2017 GMC 2500HD Pickup 4WD
- 2018 GMC 2500HD Pickup 4WD
- 2019 GMC 2500HD Pickup 4WD
- 2011 GMC 3500HD Pickup 4WD
- 2012 GMC 3500HD Pickup 4WD
- 2013 GMC 3500HD Pickup 4WD
- 2014 GMC 3500HD Pickup 4WD
- 2015 GMC 3500HD Pickup 4WD
- 2016 GMC 3500HD Pickup 4WD
- 2017 GMC 3500HD Pickup 4WD
- 2018 GMC 3500HD Pickup 4WD
- 2019 GMC 3500HD Pickup 4WD
Quick Specs
- Front Lift Height: 3″
- Front Lift Method: Torsion Keys
- Rear Lift Height: 2″
- Rear Lift Method: Rear Block
- Install Time Hrs: 4-5
- Difficulty Level 1-5: 3
- Wheel Size: 17 x 9
- Back Spacing: 5″ – 5.5″
- Max Tire Size: 34 x 11.50
- Wheel Size: 18 x 9
- Back Spacing: 6″
- Max Tire Size: 35 x 12.50
- Wheel Size: 20 x 9
- Back Spacing: 6″
- Max Tire Size: 35 x 12.50
Additional information
Reviews (0)
About brand
Zone Offroad Suspension Systems
When it comes to upgrading your vehicle's off-road capabilities and stance, Zone Offroad suspension systems, lift kits, and suspension components are top choices among enthusiasts. Known for their high-quality, affordable, and easy-to-install products, Zone Offroad offers a wide range of suspension solutions designed for trucks, SUVs, and Jeeps. Whether you're seeking increased ground clearance, improved handling, or the ability to fit larger tires, Zone Offroad provides the components you need to enhance your vehicle's performance both on and off the road.
Zone Offroad Lift Kits
At the heart of Zone Offroad's offerings are their lift kits, meticulously engineered to provide various lift heights to suit your specific needs. These kits are designed to maintain factory ride quality and handling characteristics while delivering the additional height required for off-road adventures. Zone Offroad lift kits include all necessary components such as coil springs, leaf springs, control arms, and shocks, ensuring a comprehensive and straightforward installation. With options for both moderate and significant lifts, you can customize your vehicle to tackle challenging terrains with confidence.
Zone Offroad Leveling Kits
For drivers looking to correct the factory rake and achieve a leveled stance, Zone Offroad leveling kits offer an effective solution. These kits lift the front of your vehicle to match the rear height, enhancing aesthetics and allowing for the installation of larger tires. Made with durable materials and designed for an easy bolt-on installation, Zone Offroad leveling kits improve ground clearance without significantly altering your vehicle's suspension geometry or ride quality.
Zone Offroad Suspension Components
Enhance your suspension system with Zone Offroad suspension components, including shocks, steering stabilizers, and control arms. Products like the Nitro Series shocks provide improved damping performance for a smoother ride over rough terrains. Steering stabilizers reduce vibration and improve steering control, enhancing your driving experience both on and off the road. Zone Offroad's control arms and other suspension components are built to withstand the demands of off-road driving, offering durability and reliability for long-term use.
Zone Offroad Accessories
Complete your vehicle's transformation with Zone Offroad accessories such as body lifts, skid plates, and bumper brackets. Body lift kits provide additional clearance for larger tires without affecting the suspension system, while skid plates protect vital underbody components from damage during off-road excursions. These accessories are designed to integrate seamlessly with Zone Offroad's suspension systems, providing a cohesive upgrade package for your vehicle.
With a commitment to quality, affordability, and customer satisfaction, Zone Offroad suspension systems, lift kits, and accessories are trusted by off-road enthusiasts nationwide. All products are rigorously tested and backed by a comprehensive warranty, ensuring peace of mind with every purchase. If you're seeking to enhance your vehicle's off-road performance, achieve a custom look, and enjoy reliable durability, trust Zone Offroad to deliver the high-quality suspension solutions you need for your next adventure.
