Zone Offroad 5" Knuckle and Bracket Kit Lift Kit 2011-2019 Silverado/Sierra 2500HD/3500HD

Zone Offroad 5" Knuckle & Bracket Kit Lift Kit 2011-2016 Silverado/Sierra 2500HD/3500HD

Click to enlarge

Zone Offroad 5″ Knuckle and Bracket Kit Lift Kit 2011-2019 Silverado/Sierra 2500HD/3500HD

Name: Zone Offroad 5" Knuckle and Bracket Kit Lift Kit 2011-2019 Silverado/Sierra 2500HD/3500HD
Brand: Zone Offroad
SKU: C12N/C13N
Availability: InStock
Rating: 5.00 (1 reviews)

5 out of 5 based on 1 customer rating

(1 customer review)

Base Price: Original price was: $1,387.87.Current price is: $1,249.08.

In stock

( ! ) Deprecated: Creation of dynamic property woocommerce_gravityforms_product_form::$previous_page is deprecated in /var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/plugins/woocommerce-gravityforms-product-addons/gravityforms-product-addons-form.php on line 79
Call Stack
#	Time	Memory	Function	Location
1	0.0004	402048	{main}( )	.../index.php:0
2	0.0005	403544	require( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-blog-header.php )	.../index.php:17
3	1.8090	165607608	require_once( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-includes/template-loader.php )	.../wp-blog-header.php:19
4	1.9662	165887568	include( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/single-product.php )	.../template-loader.php:132
5	2.6693	188464208	wc_get_template_part( $slug = 'content', $name = 'single-product' )	.../single-product.php:41
6	2.6694	188464776	load_template( $_template_file = '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/content-single-product.php', $load_once = FALSE, $args = ??? )	.../wc-core-functions.php:285
7	2.6697	188494112	require( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/content-single-product.php )	.../template.php:816
8	2.7736	189035632	do_action( $hook_name = 'woocommerce_single_product_summary' )	.../content-single-product.php:220
9	2.7736	189035848	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
10	2.7736	189035848	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
11	2.7850	189124160	woocommerce_template_single_add_to_cart( '' )	.../class-wp-hook.php:341
12	2.7850	189124216	do_action( $hook_name = 'woocommerce_simple_add_to_cart' )	.../wc-template-functions.php:1923
13	2.7850	189124432	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
14	2.7850	189124432	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
15	2.7850	189124864	woocommerce_simple_add_to_cart( '' )	.../class-wp-hook.php:341
16	2.7850	189124864	wc_get_template( $template_name = 'single-product/add-to-cart/simple.php', $args = ???, $template_path = ???, $default_path = ??? )	.../wc-template-functions.php:1933
17	2.7852	189135120	include( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/plugins/woocommerce/templates/single-product/add-to-cart/simple.php )	.../wc-core-functions.php:346
18	2.7897	189141752	do_action( $hook_name = 'woocommerce_before_add_to_cart_button' )	.../simple.php:33
19	2.7897	189141968	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
20	2.7897	189141968	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
21	2.7897	189142400	WC_GFPA_Main->woocommerce_gravityform( '' )	.../class-wp-hook.php:341
22	2.7954	189198088	woocommerce_gravityforms_product_form->get_form( $options = ['reorder_processing' => 'resubmit', 'reorder_hydrate_defaults' => 'yes', 'use_ajax' => 'no', 'is_ajax' => FALSE, 'show_wc_notices' => 'yes', 'validation_message' => 'There was a problem with your submission. Please review the fields below.', 'id' => '140', 'bulk_id' => 0, 'display_title' => FALSE, 'display_description' => FALSE, 'disable_woocommerce_price' => 'no', 'price_before' => 'Base Price:', 'price_after' => '', 'disable_calculations' => 'no', 'disable_label_subtotal' => 'yes', 'disable_label_options' => 'yes', 'disable_label_total' => 'no', 'disable_anchor' => 'no', 'label_subtotal' => 'Subtotal', 'label_options' => 'Options', 'label_total' => 'Total', 'enable_cart_edit' => 'no', 'enable_cart_edit_remove' => 'yes', 'keep_cart_entries' => 'no', 'send_notifications' => 'no', 'enable_cart_quantity_management' => 'no', 'cart_quantity_field' => '', 'update_payment_details' => 'no', 'display_totals_location' => 'after', 'structured_data_override' => 'no', 'structured_data_low_price' => '', 'structured_data_high_price' => '', 'structured_data_override_type' => 'append'] )	.../gravityforms-product-addons-main.php:178

Vehicle Type/Specs*
Shocks
Steering Upgrades
Driveline Adjustment
Vehicles equipped with 2 piece rear driveshafts may required the carrier bearing to be lowered.
Suspension Parts
- Add Heavy Duty Upper Control Arm Kit (pn# C2312) +$549.95
- Excellent replacement for light duty factory control arms - Improved suspension travel and ride quality over the factory control arm design - Fully welded, boxed steel design using 1/8" steel plate construction - CNC machined ball joint and bushing mounts - Improved droop travel & upper control arm operating angle - High quality Raybestos Ball Joints and OE style bushings included and pre-installed - Utilizes replaceable ball joints and bushings - Feature greasable ball joints

Subtotal
Options
Total

Add to compare

Add to wishlist

SKU: C12N/C13N Categories: Lift Kits, Lift Kits

Description

Zone Offroad 5″ Knuckle & Bracket Kit Lift Kit 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019 Silverado/Sierra 2500HD/3500HD

Part: C12N/C13N (C12 and C13)

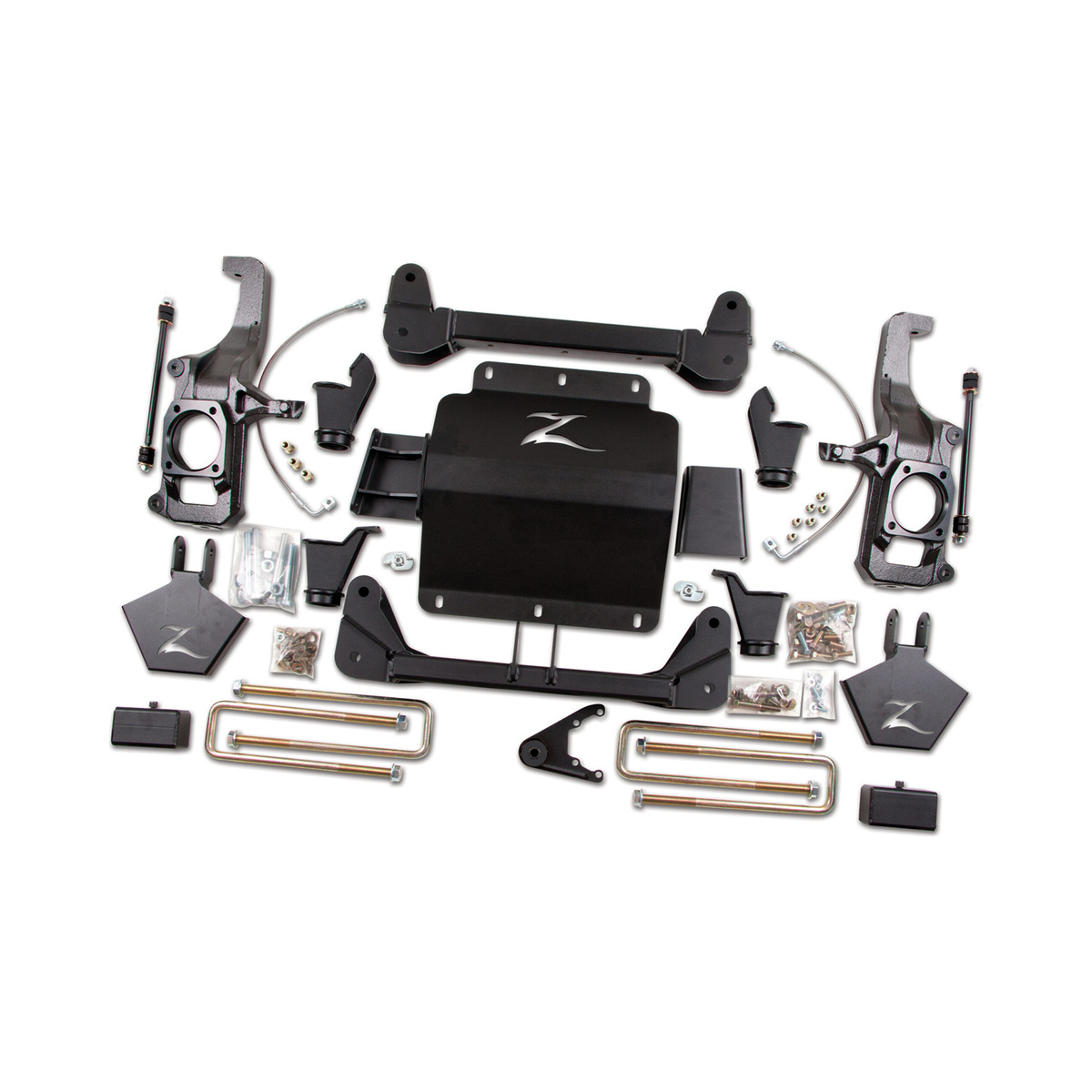

The heart of the Zone Offroad 5″ 2011-19 HD lift kit is a pair of one piece ¼” steel crossmembers combined with the CNC machined steering knuckles to create OE geometry for a quality ride. Also included is a laser cut differential skid plate, differential support brackets, torsion bar brackets, sway bar links, offset rear 3″ lift blocks, stainless steel brake lines and optional custom valved shocks. This system is designed to level the truck and has zero change to the vehicle’s track width allowing for clearance of up to 35×12.50 tires. No differential trimming required!

Featured Technology & Benefits

One piece 1/4″ steel crossmembers
CNC machined ductile iron steering knuckles
Differential skid plate for offroad protection
3″ Rear block kit for easy installation
No Differential Trimming Required
The front differential parts will not be used on 2wd models.

Important Notes!

*Optional: Nitro (black) shocks*
2015-18 Models Only: 20″ wheels can not be reinstalled due to GM changing the wheel thickness. The ID of the 20″ wheels are smaller on 15-18 models.
Torsion bar unloading/loading tool required
Frame bracket modifications required for installation
With a 20″ Wheel, 5″-6″ backspacing is recommended
Rear kit designed for single rear wheel axles.
Stock 17″ or 18″ Wheels cannot be re-installed
Will fit 2wd models. The front differential related parts will not be used.
Factory 20×8.5 wheels with 6″ backspacing or less will fit with a max tire size of 35 x 12.50
Optional steering stabilizers (3103/7103) only fit vehicles that came equipped with a steering stabilizer from the factory.
Vehicles equipped with a two piece drive shaft and a carrier bearing require bearing drop kit (C5612).

This product fits the following applications:

2011 Chevy 2500HD Pickup 2WD/4WD
2012 Chevy 2500HD Pickup 2WD/4WD
2013 Chevy 2500HD Pickup 2WD/4WD
2014 Chevy 2500HD Pickup 2WD/4WD
2015 Chevy 2500HD Pickup 2WD/4WD
2016 Chevy 2500HD Pickup 2WD/4WD
2017 Chevy 2500HD Pickup 2WD/4WD
2018 Chevy 2500HD Pickup 2WD/4WD
2019 Chevy 2500HD Pickup 2WD/4WD
2011 Chevy 3500HD Pickup 2WD/4WD
2012 Chevy 3500HD Pickup 2WD/4WD
2013 Chevy 3500HD Pickup 2WD/4WD
2014 Chevy 3500HD Pickup 2WD/4WD
2015 Chevy 3500HD Pickup 2WD/4WD
2016 Chevy 3500HD Pickup 2WD/4WD
2017 Chevy 3500HD Pickup 2WD/4WD
2018 Chevy 3500HD Pickup 2WD/4WD
2019 Chevy 3500HD Pickup 2WD/4WD
2011 GMC 2500HD Pickup 2WD/4WD
2012 GMC 2500HD Pickup 2WD/4WD
2013 GMC 2500HD Pickup 2WD/4WD
2014 GMC 2500HD Pickup 2WD/4WD
2015 GMC 2500HD Pickup 2WD/4WD
2016 GMC 2500HD Pickup 2WD/4WD
2017 GMC 2500HD Pickup 2WD/4WD
2018 GMC 2500HD Pickup 2WD/4WD
2019 GMC 2500HD Pickup 2WD/4WD
2011 GMC 3500HD Pickup 2WD/4WD
2012 GMC 3500HD Pickup 2WD/4WD
2013 GMC 3500HD Pickup 2WD/4WD
2014 GMC 3500HD Pickup 2WD/4WD
2015 GMC 3500HD Pickup 2WD/4WD
2016 GMC 3500HD Pickup 2WD/4WD
2017 GMC 3500HD Pickup 2WD/4WD
2018 GMC 3500HD Pickup 2WD/4WD
2019 GMC 3500HD Pickup 2WD/4WD

Quick Specs

Front Lift Height: 5″
Front Lift Method: Knuckle & Bracket Kit
Rear Lift Height: 3″
Rear Lift Method: Block & U-Bolt Kit
Install Time Hrs: 6-8
Difficulty Level 1-5: 4
Wheel Size: 17×9 or 18×9
Back Spacing: 4.5″-4.625″
Max Tire Size: 35 x 12.50
Wheel Size: 20×9
Back Spacing: 5″-6″
Max Tire Size: 35 x 12.50

Additional information

Weight	100 lbs
Dimensions	32 × 12 × 10 in
4WD-2WD	2WD , 4WD
Model	2500 , 3500
Front-Rear	Full Front and Rear
Brand	Zone Offroad
Make	Chevy , GMC
Product Type	Lift Kit
Year	2011 , 2012 , 2013 , 2014 , 2015 , 2016 , 2017 , 2018 , 2019
Lift	5
