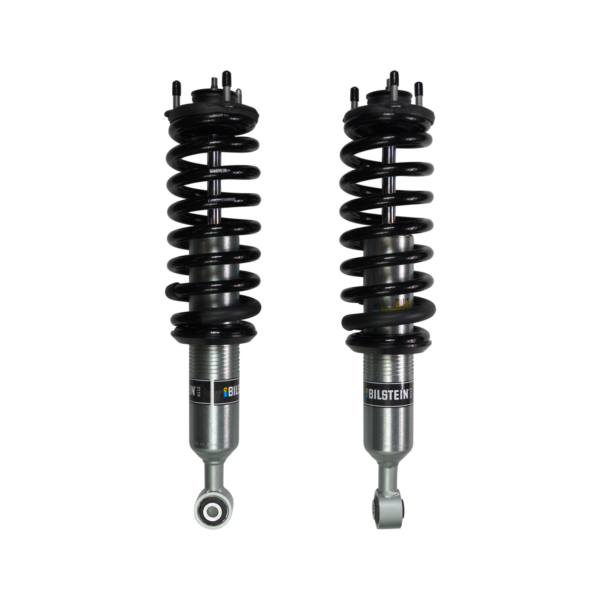

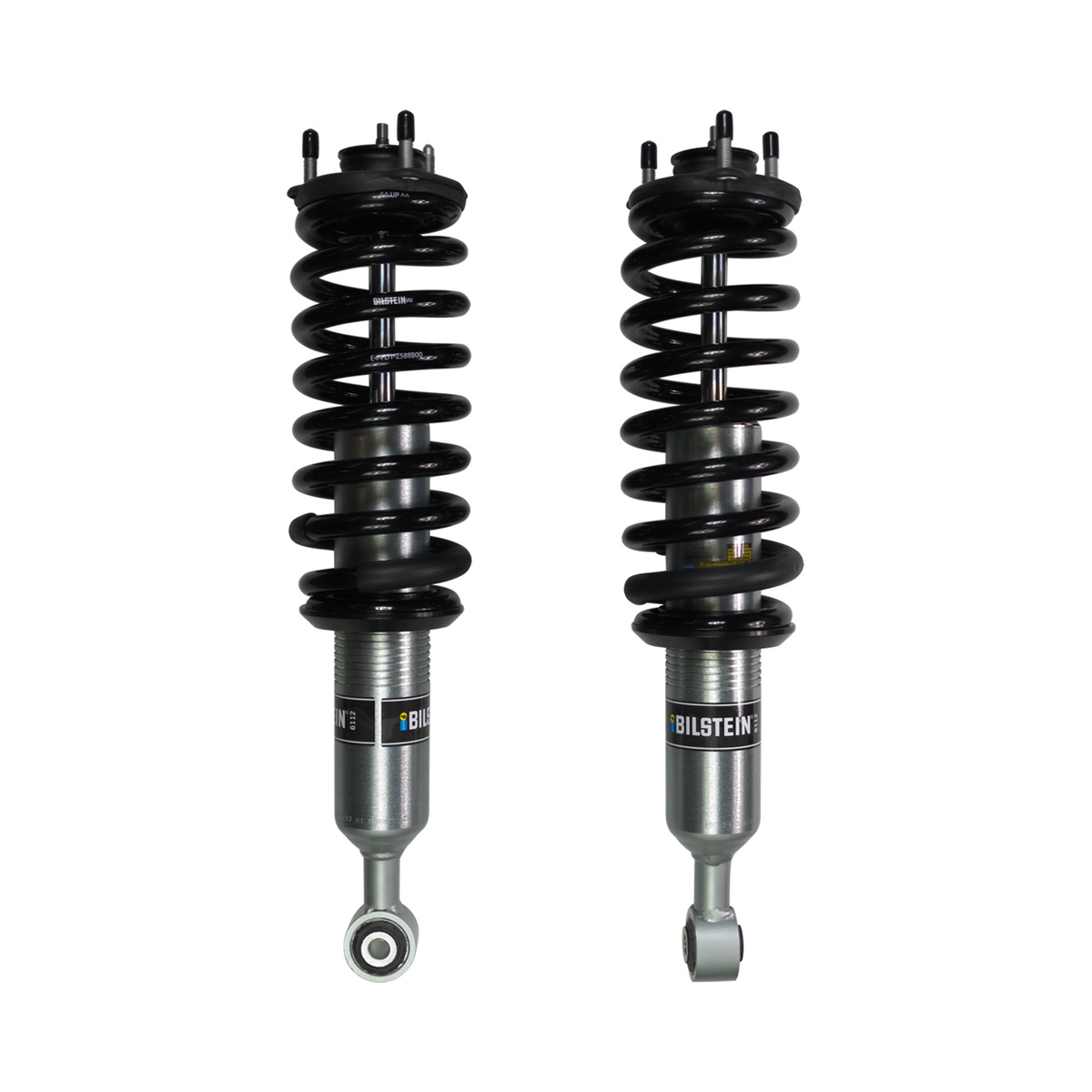

Bilstein 6112 Assembled 0-2.75″ Front Lift Coilovers for GMC Canyon 2015-2022

Original price was: $985.00.Current price is: $949.00.

In stock

( ! ) Deprecated: Creation of dynamic property woocommerce_gravityforms_product_form::$previous_page is deprecated in /var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/plugins/woocommerce-gravityforms-product-addons/gravityforms-product-addons-form.php on line 79
Call Stack
#	Time	Memory	Function	Location
1	0.0000	402192	{main}( )	.../index.php:0
2	0.0001	403688	require( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-blog-header.php )	.../index.php:17
3	1.1071	165632536	require_once( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-includes/template-loader.php )	.../wp-blog-header.php:19
4	1.2003	165913584	include( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/single-product.php )	.../template-loader.php:132
5	1.7455	190672304	wc_get_template_part( $slug = 'content', $name = 'single-product' )	.../single-product.php:41
6	1.7456	190672872	load_template( $_template_file = '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/content-single-product.php', $load_once = FALSE, $args = ??? )	.../wc-core-functions.php:285
7	1.7459	190702208	require( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/content-single-product.php )	.../template.php:816
8	1.8063	191177080	do_action( $hook_name = 'woocommerce_single_product_summary' )	.../content-single-product.php:220
9	1.8063	191177296	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
10	1.8063	191177296	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
11	1.8208	191353608	woocommerce_template_single_add_to_cart( '' )	.../class-wp-hook.php:341
12	1.8208	191353664	do_action( $hook_name = 'woocommerce_simple_add_to_cart' )	.../wc-template-functions.php:1923
13	1.8208	191353880	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
14	1.8208	191353880	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
15	1.8208	191354312	woocommerce_simple_add_to_cart( '' )	.../class-wp-hook.php:341
16	1.8208	191354312	wc_get_template( $template_name = 'single-product/add-to-cart/simple.php', $args = ???, $template_path = ???, $default_path = ??? )	.../wc-template-functions.php:1933
17	1.8210	191364568	include( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/plugins/woocommerce/templates/single-product/add-to-cart/simple.php )	.../wc-core-functions.php:346
18	1.8260	191371200	do_action( $hook_name = 'woocommerce_before_add_to_cart_button' )	.../simple.php:33
19	1.8260	191371416	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
20	1.8261	191371416	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
21	1.8261	191371848	WC_GFPA_Main->woocommerce_gravityform( '' )	.../class-wp-hook.php:341
22	1.8331	191427256	woocommerce_gravityforms_product_form->get_form( $options = ['reorder_processing' => 'resubmit', 'reorder_hydrate_defaults' => 'yes', 'use_ajax' => 'no', 'is_ajax' => FALSE, 'show_wc_notices' => 'yes', 'validation_message' => 'There was a problem with your submission. Please review the fields below.', 'id' => '2191', 'bulk_id' => 0, 'display_title' => FALSE, 'display_description' => FALSE, 'disable_woocommerce_price' => 'no', 'price_before' => '', 'price_after' => '', 'disable_calculations' => 'no', 'disable_label_subtotal' => 'yes', 'disable_label_options' => 'yes', 'disable_label_total' => 'no', 'disable_anchor' => 'no', 'label_subtotal' => 'Subtotal', 'label_options' => 'Options', 'label_total' => 'Total', 'enable_cart_edit' => 'no', 'enable_cart_edit_remove' => 'yes', 'keep_cart_entries' => 'no', 'send_notifications' => 'no', 'enable_cart_quantity_management' => 'no', 'cart_quantity_field' => '', 'update_payment_details' => 'no', 'display_totals_location' => 'after', 'structured_data_override' => 'no', 'structured_data_low_price' => '', 'structured_data_high_price' => '', 'structured_data_override_type' => 'append'] )	.../gravityforms-product-addons-main.php:178

Subtotal
Options
Total

Add to wishlist

SKU: 47-253179-ASB-2 Categories: Front Lifts, Front Lifts

Description

Bilstein 6112 Assembled 0-2.75″ Front Lift Coilovers for GMC Canyon 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022

Part: 47-253179-ASB-2

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

Finish: Dampers: Zinc Plated/Springs: Black
Reservoir: No
Aftermarket Upper Arms Required: No
Body Design: Snap Ring Grooved Body (Coilover)
Body Diameter: 60mm

Notes:

Fits Crew Cab Pickup, Extended Cab Pickup

B8 6112 Typical Lift Heights**
Circlip Location (Driver side / Passenger side)	Crew/Extended Cab 4WD 3.6L V6	Crew/Extended Cab 2WD 3.6L V6	Crew/Extended Cab 4WD 2.8L Diesel
#10 / #8	2.75”	DO NOT USE	1.5”
#9 / #7	2.4”	2.0”	1.2”
#8 / #6	2.1”	1.7”	0.9”
#7 / #5	1.8”	1.5”	0.6”
#6 / #4	1.5”	1.2”	0.3”
#5 / #3	1.2”	0.9”	Stock
#4 / #2	0.9”	0.6”	DO NOT USE
#3 / #1	0.6”	0.3”	DO NOT USE

** Ride heights indicated are typical. Actual ride height is influenced by which factory suspension the vehicle is equipped with and its condition; optional equipment and accessories on your vehicle, and other vehicle modifications such as replacement coil springs, wheel and tire combinations, etc.

Modifying/lifting the suspension to your vehicle may raise its center of gravity and may make it more susceptible to loss of control and/or rollover, which may result in death or serious injury. We strongly recommend that you offset the loss of rollover resistance as much as possible by increasing tire track width, and that you equip the vehicle with a functional roll bar and cage system. Wear seat belts and shoulder harnesses at all times, and avoid situations where a side rollover may occur.

Additional information

Weight	42 lbs
Dimensions	30 × 10 × 8 in
4WD-2WD	2WD , 4WD
Brand	Bilstein
Front-Rear	Front
Lift	0.0 , 0.25 , 0.5 , 0.6 , 0.75 , 0.8 , 0.87 , 0.9 , 1 , 1.25 , 1.3 , 1.45 , 1.5 , 1.6 , 1.7 , 1.75 , 1.8 , 1.875 , 2 , 2.2 , 2.25 , 2.28 , 2.3 , 2.4 , 2.5 , 2.6 , 2.625 , 2.63 , 2.75
Make	GMC
Model	Canyon
Product Type	Coilovers
Year	2015 , 2016 , 2017 , 2018 , 2019 , 2020 , 2021 , 2022
