Bilstein 5100 0-1.8″ Front Lift Assembled Coilovers with OE Replacement coils and Rear Shocks for 2007-2013 Chevy/GMC Silverado/Sierra 1500

Name: Bilstein 5100 0-1.8" Front Lift Assembled Coilovers with OE Replacement coils and Rear Shocks for 2007-2013 Chevy/GMC Silverado/Sierra 1500
Brand: Bilstein
SKU: 5100BILCS07S
Availability: InStock
Rating: 5.00 (4 reviews)

5 out of 5 based on 4 customer ratings

(4 customer reviews)

Original price was: $999.48.Current price is: $946.95.

In stock

( ! ) Deprecated: Creation of dynamic property woocommerce_gravityforms_product_form::$previous_page is deprecated in /var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/plugins/woocommerce-gravityforms-product-addons/gravityforms-product-addons-form.php on line 79
Call Stack
#	Time	Memory	Function	Location
1	0.0000	402448	{main}( )	.../index.php:0
2	0.0001	403944	require( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-blog-header.php )	.../index.php:17
3	0.9373	165612456	require_once( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-includes/template-loader.php )	.../wp-blog-header.php:19
4	1.0153	165879392	include( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/single-product.php )	.../template-loader.php:132
5	1.4125	190571744	wc_get_template_part( $slug = 'content', $name = 'single-product' )	.../single-product.php:41
6	1.4126	190572312	load_template( $_template_file = '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/content-single-product.php', $load_once = FALSE, $args = ??? )	.../wc-core-functions.php:285
7	1.4127	190601648	require( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/content-single-product.php )	.../template.php:816
8	1.4540	191056560	do_action( $hook_name = 'woocommerce_single_product_summary' )	.../content-single-product.php:220
9	1.4540	191056776	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
10	1.4540	191056776	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
11	1.4610	191251552	woocommerce_template_single_add_to_cart( '' )	.../class-wp-hook.php:341
12	1.4610	191251608	do_action( $hook_name = 'woocommerce_simple_add_to_cart' )	.../wc-template-functions.php:1923
13	1.4610	191251824	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
14	1.4610	191251824	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
15	1.4610	191252256	woocommerce_simple_add_to_cart( '' )	.../class-wp-hook.php:341
16	1.4610	191252256	wc_get_template( $template_name = 'single-product/add-to-cart/simple.php', $args = ???, $template_path = ???, $default_path = ??? )	.../wc-template-functions.php:1933
17	1.4611	191262512	include( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/plugins/woocommerce/templates/single-product/add-to-cart/simple.php )	.../wc-core-functions.php:346
18	1.4636	191269144	do_action( $hook_name = 'woocommerce_before_add_to_cart_button' )	.../simple.php:33
19	1.4636	191269360	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
20	1.4636	191269360	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
21	1.4636	191269792	WC_GFPA_Main->woocommerce_gravityform( '' )	.../class-wp-hook.php:341
22	1.4668	191325128	woocommerce_gravityforms_product_form->get_form( $options = ['reorder_processing' => 'resubmit', 'reorder_hydrate_defaults' => 'yes', 'use_ajax' => 'no', 'is_ajax' => FALSE, 'show_wc_notices' => 'yes', 'validation_message' => 'There was a problem with your submission. Please review the fields below.', 'id' => '2302', 'bulk_id' => 0, 'display_title' => FALSE, 'display_description' => FALSE, 'disable_woocommerce_price' => 'no', 'price_before' => '', 'price_after' => '', 'disable_calculations' => 'no', 'disable_label_subtotal' => 'yes', 'disable_label_options' => 'yes', 'disable_label_total' => 'no', 'disable_anchor' => 'no', 'label_subtotal' => 'Subtotal', 'label_options' => 'Options', 'label_total' => 'Total', 'enable_cart_edit' => 'no', 'enable_cart_edit_remove' => 'yes', 'keep_cart_entries' => 'no', 'send_notifications' => 'no', 'enable_cart_quantity_management' => 'no', 'cart_quantity_field' => '', 'update_payment_details' => 'no', 'display_totals_location' => 'after', 'structured_data_override' => 'no', 'structured_data_low_price' => '', 'structured_data_high_price' => '', 'structured_data_override_type' => 'append'] )	.../gravityforms-product-addons-main.php:178

Subtotal
Options
Total

Add to compare

Add to wishlist

SKU: 5100BILCS07S Categories: 2007-2018, Lift Kits, Shocks

Description

Bilstein 5100 0-1.8″ Front Lift Pre-Assembled Coilovers + 0-1″ Rear Shocks for 2007, 2008, 2009, 2010, 2011, 2012, 2013 Chevy/GMC Silverado/Sierra 1500

Part: 5100BILCS07S

Level your Chevy/GMC Silverado/Sierra 1500 with a matched front and rear package. The front Bilstein 5100 coilovers arrive fully assembled with OE-style coils and new top mounts, so you skip the spring compressor. Rear 5100 shocks are sized for 0-1″ rear lift to keep the truck composed and controlled.

What’s Included

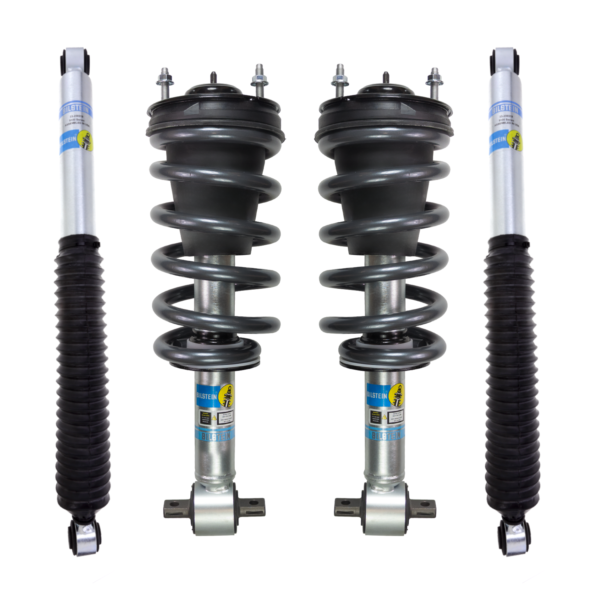

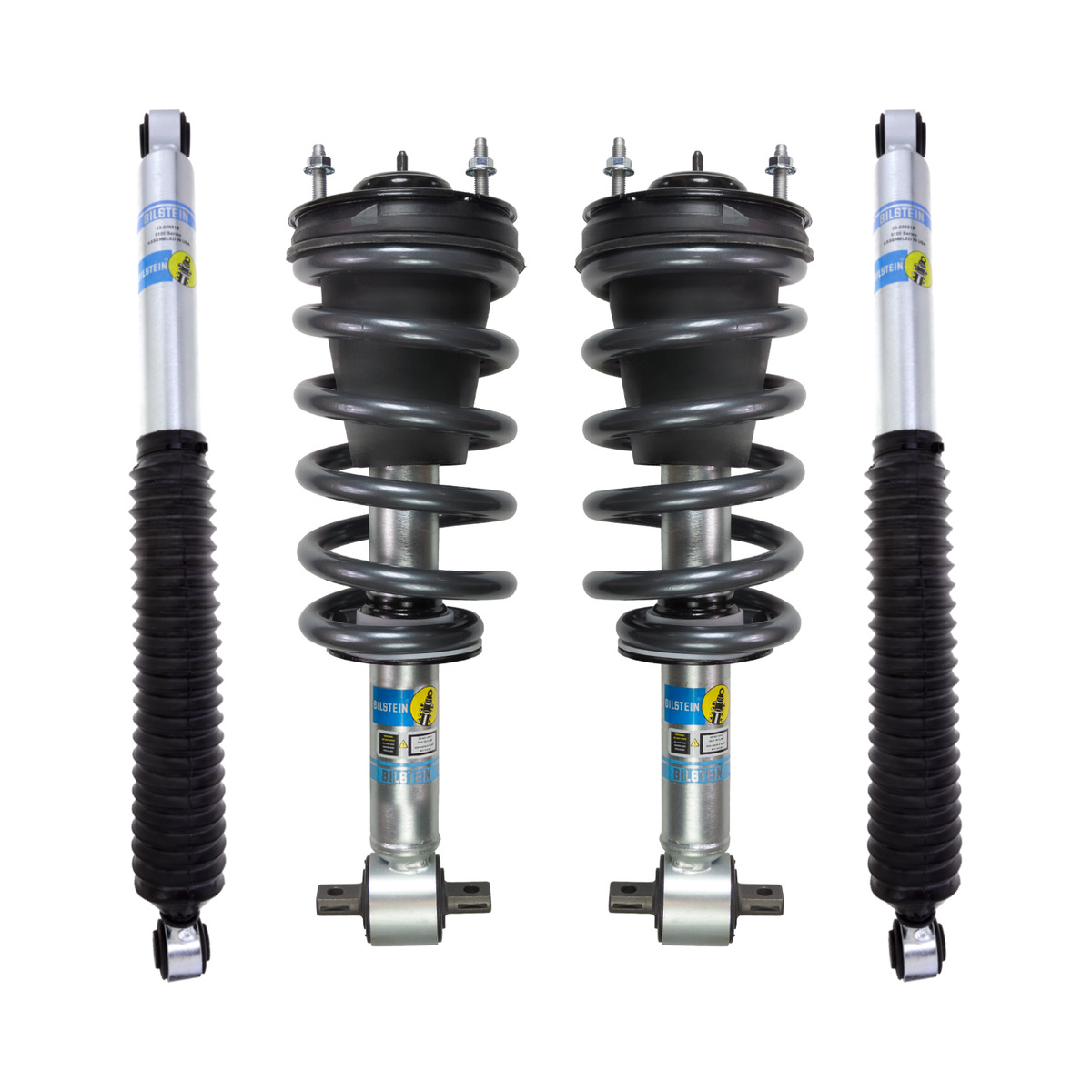

Front (pre-assembled): 2 x Bilstein 5100 ride-height-adjustable struts 24-317818 (old 24-186940) with OE/OEM-style replacement coils, new top mounts, isolators, dust covers, and hardware
Rear: 2 x Bilstein 5100 shocks 24-293082 for 0-1″ rear lift

Front perch settings (clip positions)

Clip 4: ~1.77″ lift
Clip 3: ~1.18″ lift
Clip 2: ~0.59″ lift
Clip 1: 0″ stock

Actual lift varies with bumper/winch weight, accessories, and spring condition.

Why you’ll like it

No spring compressor needed – fronts come fully assembled
Adjustable 0-1.8″ front lift – set a level stance or mild lift for tire clearance
Bilstein 5100 control – 46 mm monotube, digressive valving for consistent, fade-resistant damping
OE-style comfort – tighter body control while keeping daily ride quality

Fitment

Vehicles: Chevrolet Avalanche 1500 2007, 2008, 2009, 2010, 2011, 2012, 2013
Drivetrain: 2WD or 4WD
Heights: front adjustable 0-1.8″ rear shocks matched to 0-1″ rear lift components

Technical notes

Snap-ring grooves set front spring seat height within the stated range
Monotube, nitrogen gas-charged, 46 mm piston
Alignment is required after installation
Coilover assembly time: 3-10 business days

FAQ

Do these come assembled? Yes. New coils, mounts, and hardware are installed up front.

Which clip should I choose? Start at Clip 2 or 3 for a typical level; adjust for added front weight or preferred rake.

Will the rear shocks lift my truck? No. They are sized and valved to work with up to 1″ rear lift springs or spacers.

Additional information

Weight	52.01 lbs
Dimensions	26 × 12 × 7.5 in
4WD-2WD	2WD , 4WD
Brand	Bilstein
Front-Rear	Full Front and Rear
Lift	0 , 0.25 , 0.5 , 0.6 , 1 , 1.3 , 1.8
Make	Chevy , GMC
Model	1500
Product Type	Lift Kit , Shocks
Year	2007 , 2008 , 2009 , 2010 , 2011 , 2012 , 2013
