Do I need aftermarket upper control arms with this Bilstein 6112 kit on my 2014-2018 Silverado 1500?

Yes. At the 1.85-2.75 inch front lift range used in this 47-325753-ASBK package, aftermarket upper control arms are required to maintain proper ball joint angles and down travel. Bilstein specifically recommends their B8 control arm kits for these applications.

How much lift does the Bilstein 6112 system provide on a 2014-2018 Silverado 1500 4WD?

The Bilstein B8 6112 front coilovers can provide up to about 2.75 inches of lift. This assembled package is intended to be run in the 1.85 to 2.75 inch range depending on which snap-ring groove you choose, your trim level, and any added weight such as a bumper or winch.

What is the difference between choosing Bilstein 5100 vs 5160 rear shocks in this kit?

Bilstein 5100 rear shocks are a monotube upgrade designed for trucks with stock to mild rear lift and are ideal for daily driving, towing, and light off road use. Bilstein 5160 rear shocks add remote reservoirs for extra oil volume and cooling, making them better suited for trucks that see repeated rough roads, higher speeds off road, or heavier loads.

Do the Bilstein 6112 front coilovers come pre-assembled in this kit?

Yes. In this 47-325753-ASBK package the Bilstein B8 6112 struts are assembled with Bilstein lift springs, billet spring seats, and new top mounts and hardware. They arrive as complete coilover assemblies so you do not need to use a spring compressor.

Do I need an alignment after installing Bilstein 6112 and rear shocks on my Silverado?

Yes. Any time front ride height is changed or coilovers are replaced, a professional alignment is required. Correct camber, caster, and toe settings are critical for tyre life, straight tracking, and proper steering feel.

Bilstein 6112 0-1.85" Front Assembled Coilovers with Rear Shocks for 2014-2018 Chevy Silverado 1500 4WD

Click to enlarge

Bilstein 6112 1.85-2.75″ Front Assembled Coilovers with Rear 5100 Shocks for 2014-2018 Chevy Silverado 1500 4WD

5 out of 5 based on 1 customer rating

(1 customer review)

$1,399.99

( ! ) Deprecated: Creation of dynamic property woocommerce_gravityforms_product_form::$previous_page is deprecated in /var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/plugins/woocommerce-gravityforms-product-addons/gravityforms-product-addons-form.php on line 79
Call Stack
#	Time	Memory	Function	Location
1	0.0000	403376	{main}( )	.../index.php:0
2	0.0001	404872	require( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-blog-header.php )	.../index.php:17
3	1.1903	165632504	require_once( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-includes/template-loader.php )	.../wp-blog-header.php:19
4	1.2569	165894616	include( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/single-product.php )	.../template-loader.php:132
5	1.7781	190496936	wc_get_template_part( $slug = 'content', $name = 'single-product' )	.../single-product.php:41
6	1.7782	190497504	load_template( $_template_file = '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/content-single-product.php', $load_once = FALSE, $args = ??? )	.../wc-core-functions.php:285
7	1.7786	190526840	require( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/content-single-product.php )	.../template.php:816
8	1.8360	191038088	do_action( $hook_name = 'woocommerce_single_product_summary' )	.../content-single-product.php:220
9	1.8360	191038304	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
10	1.8360	191038304	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
11	1.8450	191237368	woocommerce_template_single_add_to_cart( '' )	.../class-wp-hook.php:341
12	1.8450	191237424	do_action( $hook_name = 'woocommerce_simple_add_to_cart' )	.../wc-template-functions.php:1923
13	1.8450	191237640	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
14	1.8450	191237640	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
15	1.8450	191238072	woocommerce_simple_add_to_cart( '' )	.../class-wp-hook.php:341
16	1.8450	191238072	wc_get_template( $template_name = 'single-product/add-to-cart/simple.php', $args = ???, $template_path = ???, $default_path = ??? )	.../wc-template-functions.php:1933
17	1.8452	191248328	include( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/plugins/woocommerce/templates/single-product/add-to-cart/simple.php )	.../wc-core-functions.php:346
18	1.8479	191251288	do_action( $hook_name = 'woocommerce_before_add_to_cart_button' )	.../simple.php:33
19	1.8479	191251504	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
20	1.8479	191251504	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
21	1.8479	191251936	WC_GFPA_Main->woocommerce_gravityform( '' )	.../class-wp-hook.php:341
22	1.8524	191307904	woocommerce_gravityforms_product_form->get_form( $options = ['reorder_processing' => 'resubmit', 'reorder_hydrate_defaults' => 'yes', 'use_ajax' => 'no', 'is_ajax' => FALSE, 'show_wc_notices' => 'yes', 'validation_message' => 'There was a problem with your submission. Please review the fields below.', 'id' => '2378', 'bulk_id' => 0, 'display_title' => FALSE, 'display_description' => FALSE, 'disable_woocommerce_price' => 'no', 'price_before' => '', 'price_after' => '', 'disable_calculations' => 'no', 'disable_label_subtotal' => 'yes', 'disable_label_options' => 'yes', 'disable_label_total' => 'no', 'disable_anchor' => 'no', 'label_subtotal' => 'Subtotal', 'label_options' => 'Options', 'label_total' => 'Total', 'enable_cart_edit' => 'no', 'enable_cart_edit_remove' => 'yes', 'keep_cart_entries' => 'no', 'send_notifications' => 'no', 'enable_cart_quantity_management' => 'no', 'cart_quantity_field' => '', 'update_payment_details' => 'no', 'display_totals_location' => 'after', 'structured_data_override' => 'no', 'structured_data_low_price' => '', 'structured_data_high_price' => '', 'structured_data_override_type' => 'append'] )	.../gravityforms-product-addons-main.php:178

Coilover Assembly

Coilover Assembly may take extra 2-7 days. Assembled with new top mounts.

Rear Shocks

Aftermarket Control Arms

Subtotal
Options
Total

Add to compare

Add to wishlist

SKU: 47-325753-ASBK Categories: 1500, 2007-2018, Lift Kits

Description

Bilstein 6112 1.85-2.75″ Front Assembled Coilovers with Rear Shocks Bilstein 5100 – 2014-2018 Chevy Silverado 1500 4WD

Part: 47-325753-ASBK

Give your 2014-2018 Silverado 1500 4WD a proper leveling and front suspension upgrade with Bilstein B8 6112 big body assembled coilovers and your choice of Bilstein 5100 or 5160 rear shocks.
The 6112s use a massive 60 mm body and matched lift coils to deliver more control, more travel, and a true 1.85-2.75″ front lift when paired with the correct upper control arms.

What The Bilstein 6112 System Does

Bilstein B8 6112 leveling kits are designed to increase ground clearance, allow larger tires, and improve wheel travel.

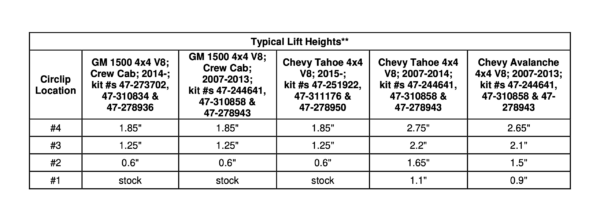

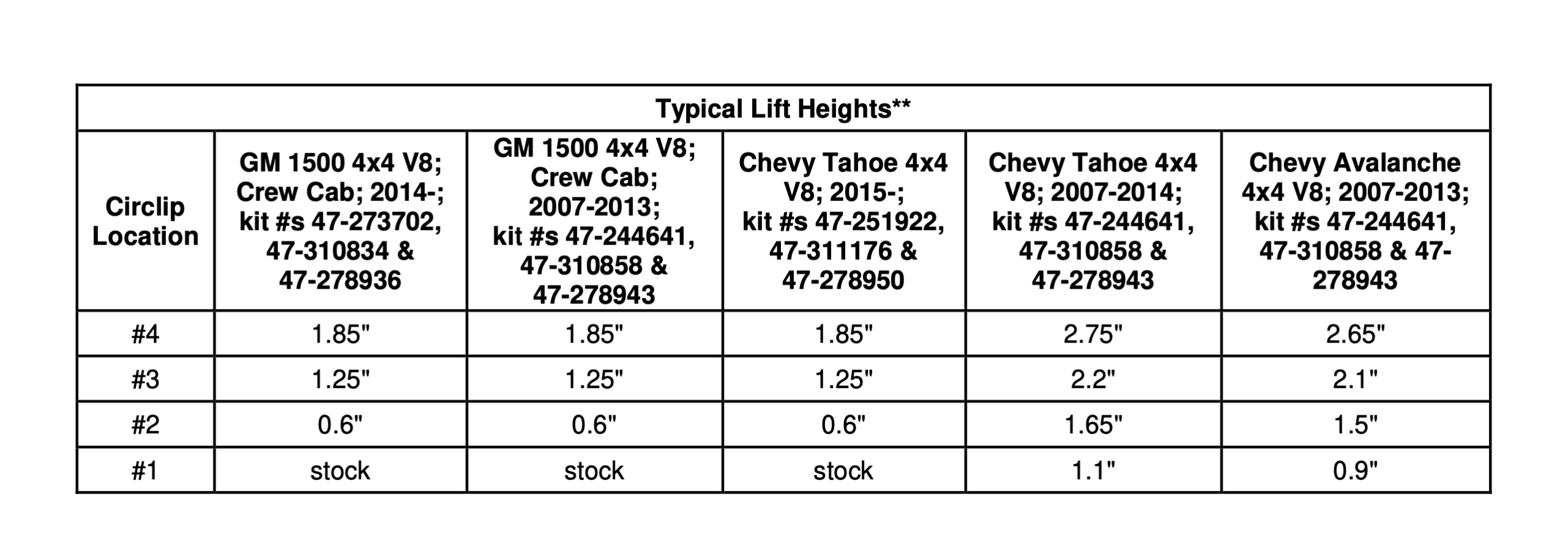

Multiple snap-ring grooves on the shock body let you move the spring seat and fine tune ride height. The system uses:

(2) 60 mm monotube shock absorbers with large digressive pistons
(2) custom matched cold wound coil springs
(2) billet aluminum spring seats

The large piston and monotube construction give you strong damping control on and off road, resisting fade on washboard, towing, and longer dirt sections far better than stock struts or spacer-only kits.

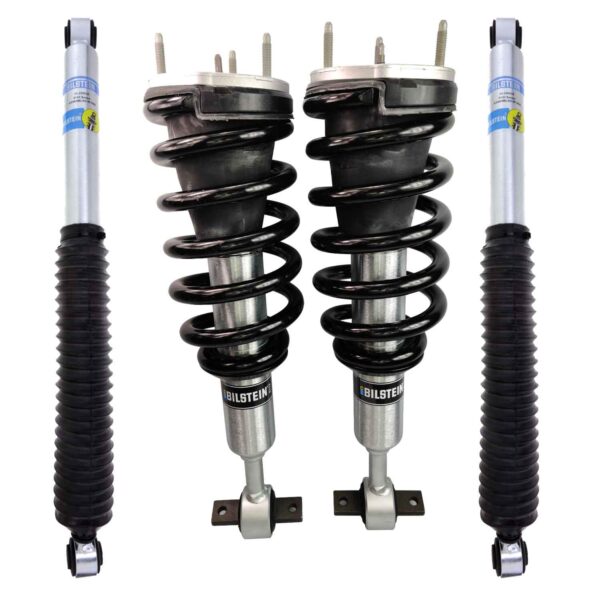

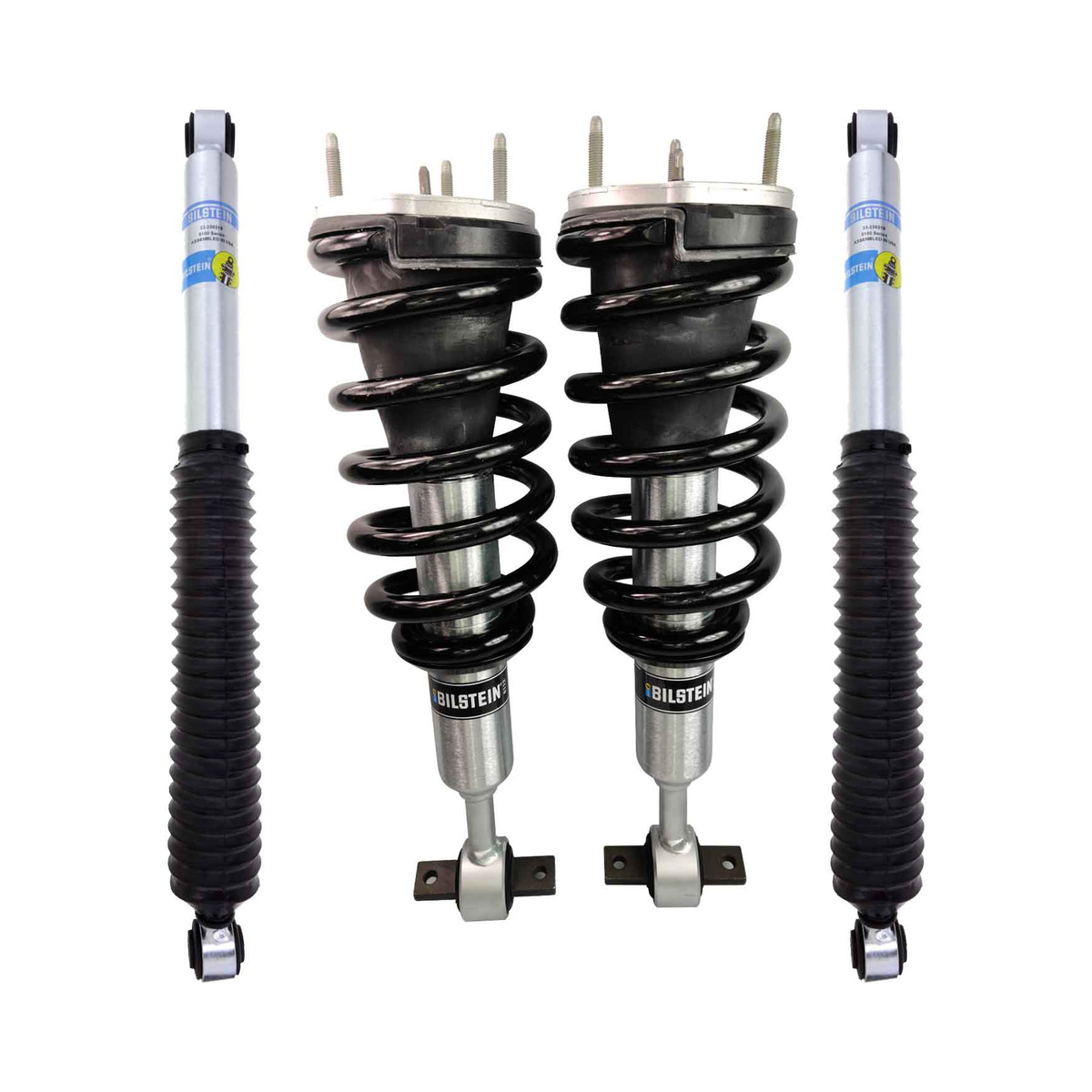

What’s Included In This Assembled Kit

Front (pre-assembled coilovers):
- Bilstein B8 6112 60 mm front struts with Bilstein lift springs and billet spring seats
- ASSEMBLED with new top mounts, bushings, isolators, and hardware
- Snap-ring adjustable spring perch, set up for approximately 1.85-2.75″ front lift (position and load dependent)
- No spring compressor needed – true bolt-in coilovers
Rear shocks:
- Your choice of Bilstein 5100 rear shocks for 0-1″ lift, or
- Bilstein 5160 remote reservoir rear shocks for extra cooling and control

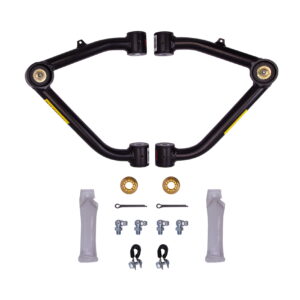

Aftermarket Upper Control Arms Required

Aftermarket upper control arms are required with this 1.85-2.75″ 6112 setup.
Bilstein recommends the B8 Control Arm Kit for correct ball joint angle and down travel:
- Bilstein B8 Upper Control Arm Kit for 2007-2016 Chevrolet Silverado 1500
- Bilstein B8 Upper Control Arm Kit for 2014-2018 Chevrolet Silverado 1500 with Aluminum or Stamped Steel UCAs

Why You’ll Like This Kit

Real performance front end – 60 mm 6112 struts with matched coils outclass spacer lifts and small body shocks
More ground clearance – 1.85-2.75″ front lift range supports larger tires and a more aggressive stance
Pre-assembled coilovers – safer, faster install with no spring compressor
Matched rear shocks – choose 5100 for a clean, simple setup or 5160 reservoirs for harder off road use
Monotube, digressive valving – consistent, fade-resistant damping on rough pavement, towing, and dirt

Fitment

Vehicle: Chevy Silverado 1500
Model years: 2014, 2015, 2016, 2017, 2018
Drivetrain: 4WD only
Front lift range: approximately 1.85-2.75″ with correct snap-ring position and upper control arms
Rear: Bilstein 5100 or 5160 shocks matched to your rear height (typically stock to mild lift, depending on option)

Install Notes

You must run aftermarket upper control arms with this 6112 lift range for proper ball joint angle and droop
Set front snap-ring position before installation based on desired ride height and weight (bumper, winch, etc.)
Professional alignment is required after installation
Verify tire clearance with your specific wheel width and offset once installed

Additional information

Weight	62 lbs
Dimensions	26 × 12 × 7.5 in
4WD-2WD	4WD
Brand	Bilstein
Front-Rear	Full Front and Rear
Lift	0.0 , 0.25 , 0.5 , 0.6 , 0.75 , 0.8 , 0.87 , 0.9 , 1 , 1.25 , 1.3 , 1.45 , 1.5 , 1.6 , 1.7 , 1.75 , 1.8 , 1.875
Make	Chevy
Model	1500
Product Type	Lift Kit , Shocks
Year	2014 , 2015 , 2016 , 2017 , 2018
