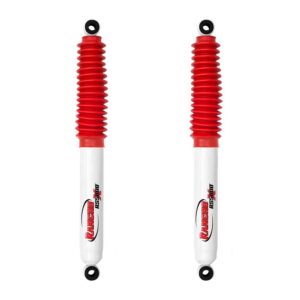

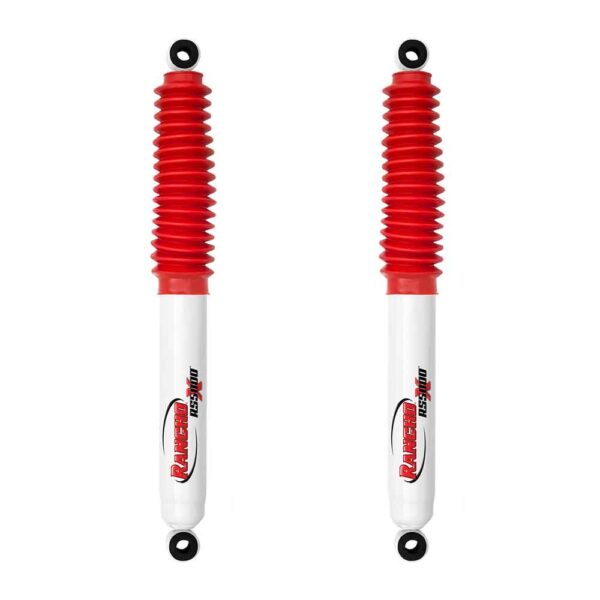

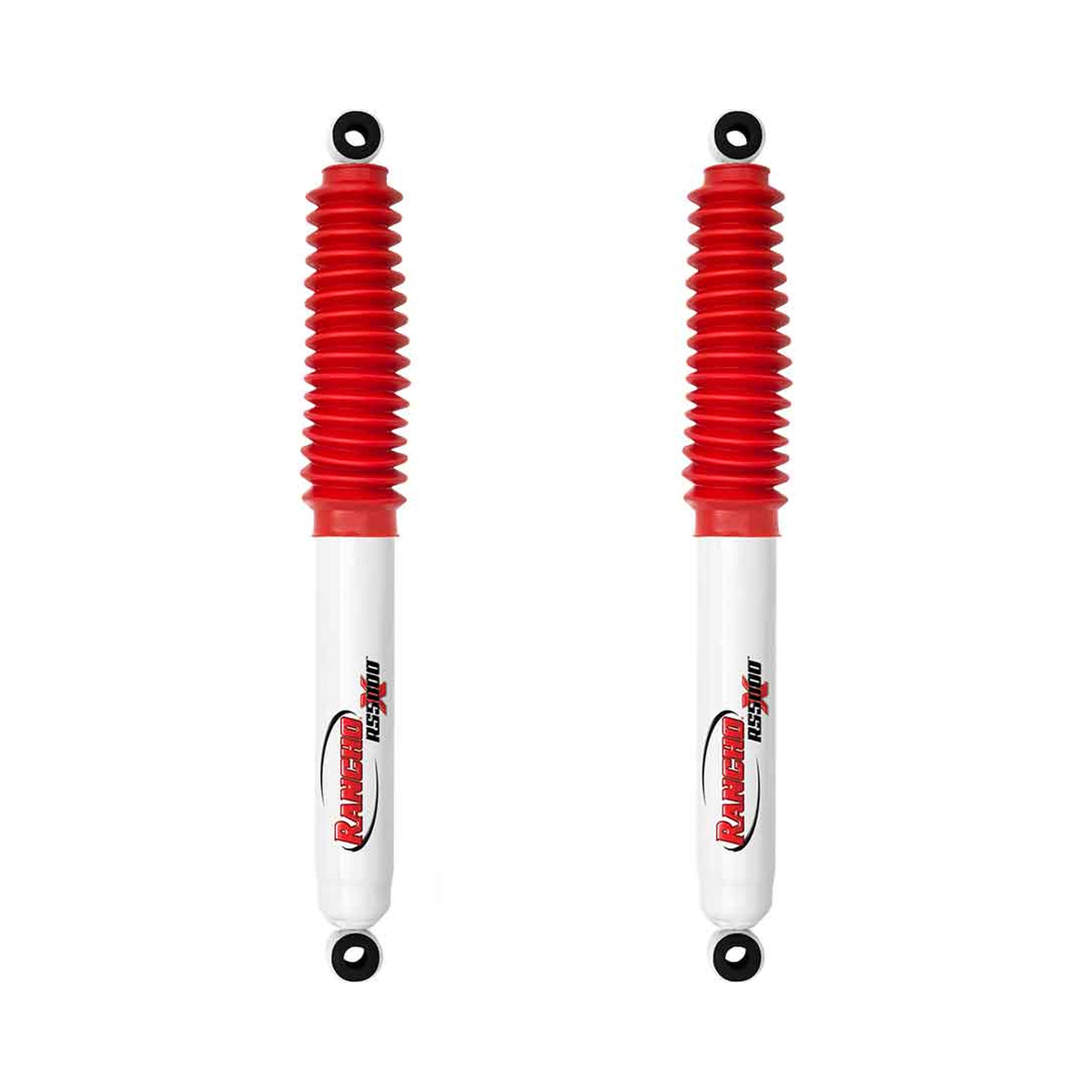

Rancho RS5000X 0-2″ Rear Lift Shocks for 1987-1991 Chevy V30, V3500 4WD
Original price was: $170.23.$154.75Current price is: $154.75.
Only 1 left in stock
Rancho RS5000X 0-2″ Rear Lift Shocks for 1987-1991 Chevy V30, V3500 4WD
Part Number: RS55132
Summary: The Rancho RS5000X series utilizes a patented progressive engagement valving system to deliver a smooth, controlled ride for your Chevy or GMC K-Series truck. Engineered for vehicles with 0-2 inches of rear lift, these gas-pressurized twin-tube shocks are designed to handle both daily commuting and rugged off-road environments. By reducing aeration and shock fade, the RS5000X ensures consistent damping performance and durability for heavy-duty 4WD applications.
Features
- Progressive Engagement Valving: Custom-tuned internal discs provide a gradual transition between damping circuits to ensure a smooth ride over small bumps while maintaining control during large impacts.
- Twin-Tube Gas Pressure: A 150-PSI nitrogen gas charge provides a consistent response and prevents oil foaming to ensure reliable performance under high-load conditions.
- Double-Welded Mounts: Reinforced loop-style end mounts provide superior structural integrity to ensure long-term durability on 1-ton 4WD chassis.
- Protective Boot: Included polyvinyl accordion boot provides a physical barrier against road debris and moisture to ensure the longevity of the polished chrome piston rod.
Technical Specifications
| Specification | Value |
|---|---|
| Series | RS5000X |
| Position | Rear |
| Extended Length | 26.39 inches |
| Compressed Length | 16.11 inches |
| Travel | 10.28 inches |
| Upper Mount | Loop (L1) |
| Lower Mount | OE-Style Mount |
| Construction | Twin-Tube Gas Pressurized |
Fitment
- 1987-1991 Chevy V30 4WD
- 1987-1991 Chevy V3500 4WD
- 1987-1991 GMC K3500 4WD
- Note: Configured for vehicles with 0-2″ of rear lift.
What’s Included
- Includes 2 Shocks (Pair)
- Protective Red Dust Boots
- Required Installation Bushings and Washers
Why Choose This Product?
- Engineering Advantage: Rancho’s cross-tuned technology optimizes the relationship between the compression and rebound phases for a truck-specific ride profile.
- Performance Benefit: The twin-tube design offers increased oil capacity and dent resistance, making it the ideal choice for work trucks and weekend explorers.
Related Products
Front Only (Same Series):
Rancho RS5000X 0-2" Front Lift Shocks for 1987-1991 Chevy V30, V3500 4WD
RS90000XL (Front):
Rancho RS90000XL 0-2" Front Lift Shocks for 1987-1991 Chevy V30, V3500 4WD
RS5000X (Kit):
Rancho RS5000X 0-2" Lift Shocks for 1987-1991 Chevy V30, V3500 4WD
Frequently Asked Questions
Will these shocks lift my truck?
No, these shocks do not create lift. They are specifically valved and length-matched for vehicles already equipped with 0-2 inches of rear lift height.
What is the benefit of the RS5000X over the original RS5000?
The RS5000X features a larger 2.25-inch body and progressive valving, which offers better heat dissipation and a more refined ride compared to the original design.
Are these shocks sold as a pair?
Yes, this SKU (2xRS55132_n141) includes a pair of two shocks for the rear of your vehicle.
