-13%

Bilstein B8 5100 0-2″ Front Lift Adjustable Coilovers with OE Replacement Coils for 2006-2008 Dodge Ram 1500 4WD

Original price was: $759.00.Current price is: $662.95.

In stock

( ! ) Deprecated: Creation of dynamic property woocommerce_gravityforms_product_form::$previous_page is deprecated in /var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/plugins/woocommerce-gravityforms-product-addons/gravityforms-product-addons-form.php on line 79
Call Stack
#	Time	Memory	Function	Location
1	0.0000	402320	{main}( )	.../index.php:0
2	0.0001	403816	require( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-blog-header.php )	.../index.php:17
3	1.6886	165618056	require_once( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-includes/template-loader.php )	.../wp-blog-header.php:19
4	1.7846	165881832	include( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/single-product.php )	.../template-loader.php:132
5	3.3076	190653472	wc_get_template_part( $slug = 'content', $name = 'single-product' )	.../single-product.php:41
6	3.3077	190654040	load_template( $_template_file = '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/content-single-product.php', $load_once = FALSE, $args = ??? )	.../wc-core-functions.php:285
7	3.3080	190683376	require( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/content-single-product.php )	.../template.php:816
8	3.3778	191170904	do_action( $hook_name = 'woocommerce_single_product_summary' )	.../content-single-product.php:220
9	3.3778	191171120	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
10	3.3778	191171120	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
11	4.1352	191385504	woocommerce_template_single_add_to_cart( '' )	.../class-wp-hook.php:341
12	4.1352	191385560	do_action( $hook_name = 'woocommerce_simple_add_to_cart' )	.../wc-template-functions.php:1923
13	4.1353	191385776	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
14	4.1353	191385776	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
15	4.1353	191386208	woocommerce_simple_add_to_cart( '' )	.../class-wp-hook.php:341
16	4.1353	191386208	wc_get_template( $template_name = 'single-product/add-to-cart/simple.php', $args = ???, $template_path = ???, $default_path = ??? )	.../wc-template-functions.php:1933
17	4.1355	191396464	include( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/plugins/woocommerce/templates/single-product/add-to-cart/simple.php )	.../wc-core-functions.php:346
18	4.1404	191403096	do_action( $hook_name = 'woocommerce_before_add_to_cart_button' )	.../simple.php:33
19	4.1404	191403312	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
20	4.1404	191403312	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
21	4.1404	191403744	WC_GFPA_Main->woocommerce_gravityform( '' )	.../class-wp-hook.php:341
22	4.1602	191459344	woocommerce_gravityforms_product_form->get_form( $options = ['reorder_processing' => 'resubmit', 'reorder_hydrate_defaults' => 'yes', 'use_ajax' => 'no', 'is_ajax' => FALSE, 'show_wc_notices' => 'yes', 'validation_message' => 'There was a problem with your submission. Please review the fields below.', 'id' => '2209', 'bulk_id' => 0, 'display_title' => FALSE, 'display_description' => FALSE, 'disable_woocommerce_price' => 'no', 'price_before' => '', 'price_after' => '', 'disable_calculations' => 'no', 'disable_label_subtotal' => 'yes', 'disable_label_options' => 'yes', 'disable_label_total' => 'no', 'disable_anchor' => 'no', 'label_subtotal' => 'Subtotal', 'label_options' => 'Options', 'label_total' => 'Total', 'enable_cart_edit' => 'no', 'enable_cart_edit_remove' => 'yes', 'keep_cart_entries' => 'no', 'send_notifications' => 'no', 'enable_cart_quantity_management' => 'no', 'cart_quantity_field' => '', 'update_payment_details' => 'no', 'display_totals_location' => 'after', 'structured_data_override' => 'no', 'structured_data_low_price' => '', 'structured_data_high_price' => '', 'structured_data_override_type' => 'append'] )	.../gravityforms-product-addons-main.php:178

Subtotal
Options
Total

Add to wishlist

SKU: 06Ram5100ASB Categories: 2006-2008, Dodge, Ram 1500, Shocks

Description

Bilstein B8 5100 0-2″ Front Lift Adjustable Pre-Assembled Coilovers – 2006-2008 Dodge Ram 1500 4WD

Part #: 06Ram5100ASB

Need a kit with rear shocks? Bilstein B8 5100 0-2" Front Lift Adjustable Coilovers and Rear Bilstein 5100 Shocks for 2006-2008 Dodge Ram 1500 4WD

What’s Included

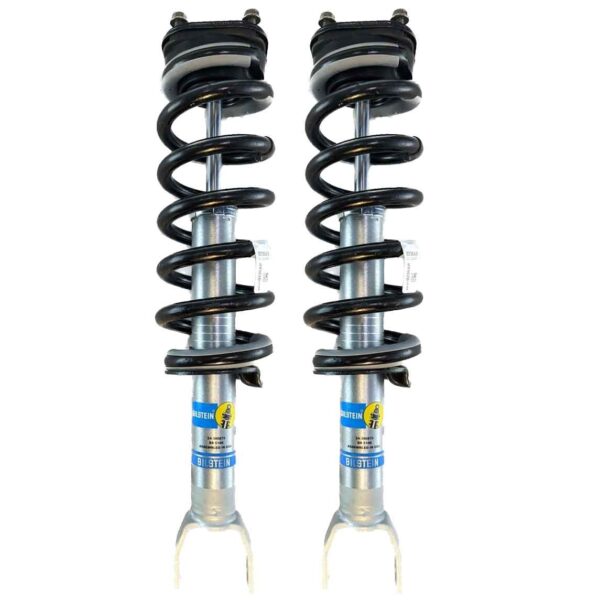

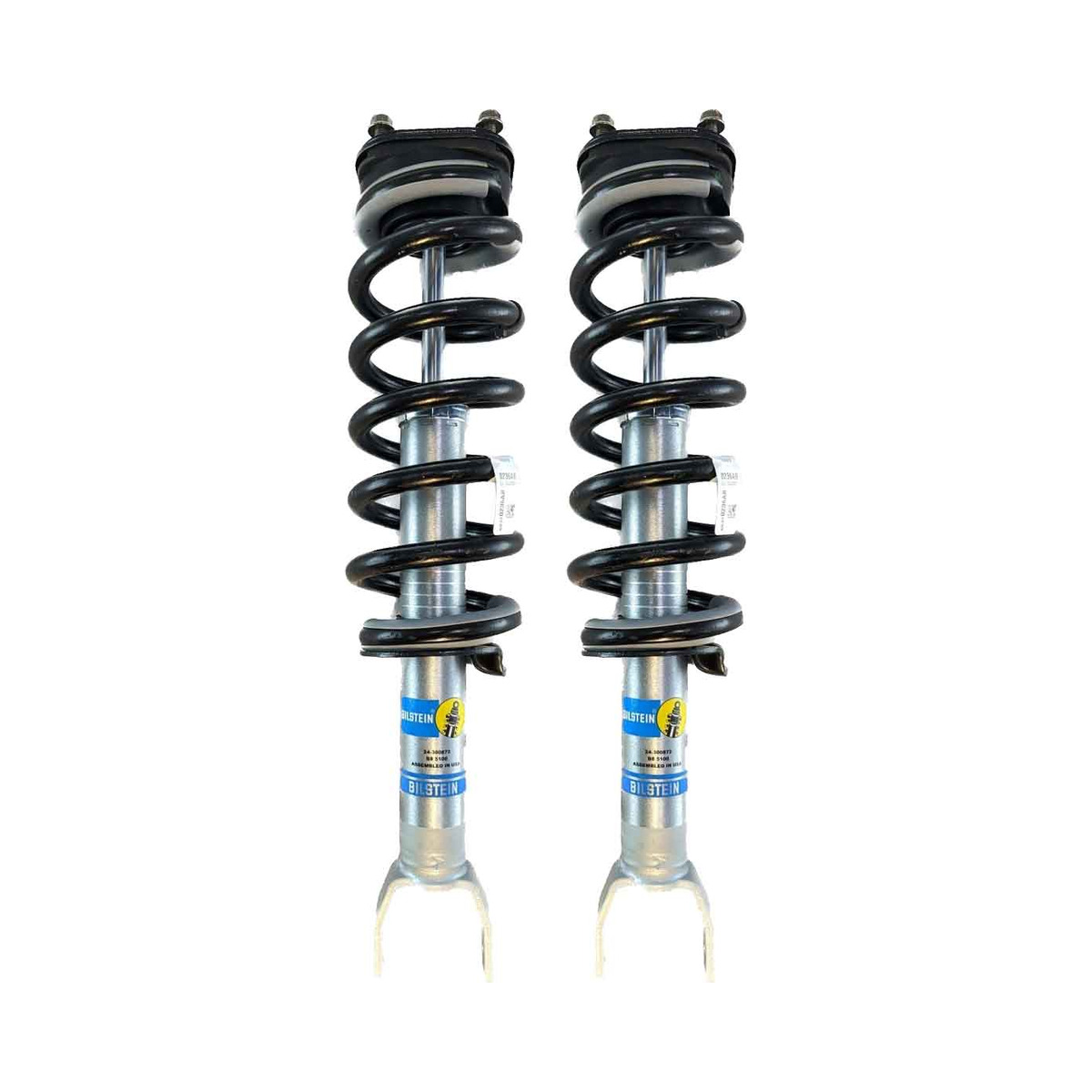

2 x Bilstein B8 5100 ride-height-adjustable front struts 24-317795 (old: 24-186988)
2 x OE replacement front coil springs
New top mounts (OEM quality or better), bushings, isolators, and hardware
Pre-assembled coilover units – no spring compressor required

Lift Range

Front adjustable lift: 0-2″ via snap-ring spring perch positions

Why This Kit

Bolt-in convenience – ships assembled to save time and avoid compressor risk
5100 performance – 46 mm monotube with digressive valving for consistent, fade-free control
Customizable stance – level the truck or add mild lift for tire clearance
OE-style coils – durable replacements that maintain proper geometry and ride quality

How It Works

Bilstein B8 5100 shocks use multiple snap-ring grooves to reposition the spring seat, delivering your chosen lift height with OE-rate coils. The monotube, gas-pressurized design with a self-adjusting deflective disc piston improves wheel travel and on-road stability while remaining comfortable for daily driving.

Fitment

Dodge Ram 1500 4WD: 2006, 2007, 2008
Front assemblies only – rear height unchanged unless paired with a rear kit

Technical Notes

Series: Bilstein B8 5100 (ride height adjustable)
Design: monotube, gas charged, snap-ring adjustable perch
Piston diameter: 46 mm
Reservoir: no
Alignment required after installation

FAQ

Will this lift the rear? No. Add the rear kit 06Ram5100ASBK if you want matching rear shocks or rear lift components.
Which perch setting should I use? Many trucks level near the middle settings. Choose based on desired rake and added front weight.

Additional information

Weight	38.21 lbs
Dimensions	27.01 × 10.01 × 5.51 in
4WD-2WD	4WD
Brand	Bilstein
Front-Rear	Front
Lift	0 , 0.0 , 0.25 , 0.5 , 0.6 , 0.75 , 0.8 , 0.87 , 0.9 , 1 , 1.25 , 1.3 , 1.45 , 1.5 , 1.6 , 1.7 , 1.75 , 1.8 , 1.875 , 2
Make	Dodge
Model	Ram 1500
Product Type	Coilovers
Year	2006 , 2007 , 2008
