Camburg Ford F-150 4wd 15-20 FOX 2.0 Performance S/R Kit

Camburg Ford F-150 4wd 2015, 2016, 2017, 2018, 2019, 2020 FOX 2.0 Performance S/R Kit

Part: CAM-110241-UC

Description

With FOX’s new Performance Series 2.0 S/R coilovers, we’re able to put together a budget friendly kit for someone looking to lift their truck and get their feet wet in the off-road world. This is a cost effective way to correctly lift your truck compared to spacer lifts and mixing and matching of the wrong parts.

FOX’s Performance Series 2.0 S/R shock is loaded with a long list of features that set it apart. This includes a new custom-molded spring seat, allowing you to reuse your stock spring and mounting hardware, while providing excellent on- and off-road performance. The precision, impact-extruded aluminum body is lightweight and rust resistant. Inside the shock is an internal nitrogen-charged gas reservoir, contained by an internal floating piston (IFP) which separates the charged gas from the shock oil. Three predetermined preload settings allow a choice of 0”, 1” or 2” of lift.

After lifting your truck, the stock upper arms become the limiting factor and hold back your suspensions performance. Our uniball upper arms address these issues and more.  Replacing the arms increase wheel travel with a part that is considerably stronger and will last longer under extreme conditions. We also engineered the arms with more caster and changed the camber curve to correct geometry so the vehicle aligns correctly and improves driving characteristics and handling.

In the rear we go with a pair of FOX’s Performance Series 2.0 IFP shocks. These shocks have a larger aluminum shock body which holds more oil for better shock performance off-road, offer an increase in wheel travel/articulation and have a more controlled ride for better bottoming resistance. You can select to not include them to lower the cost and decide to add them at a later time.

For more detailed information, see the individual product pages.

Note: factory 20″ wheels will not clear the upper arm and may require a wheel spacer. We highly recommend aftermarket wheels with the correct offset with all our Ford kits for optimum performance and fit.

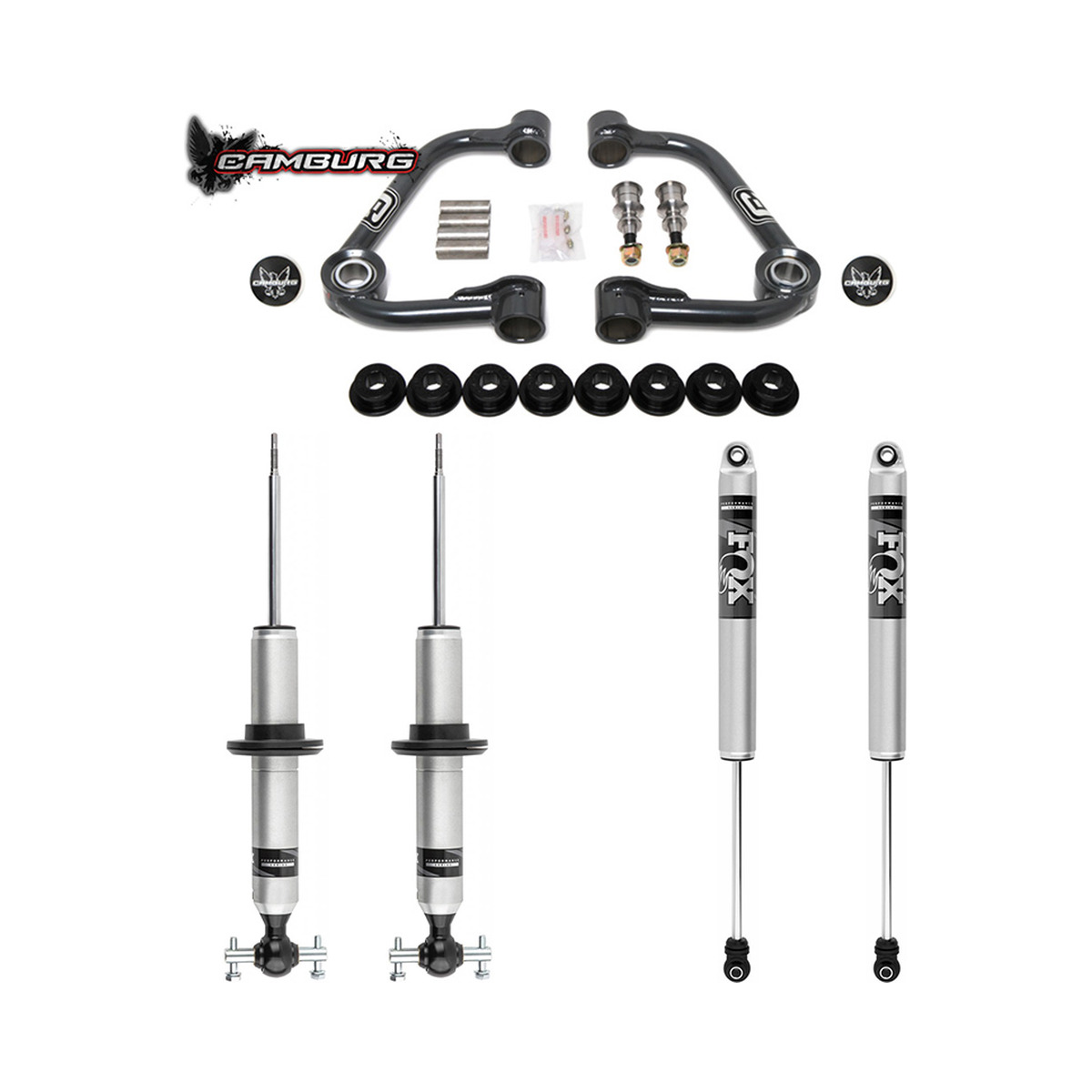

Tech Specs:

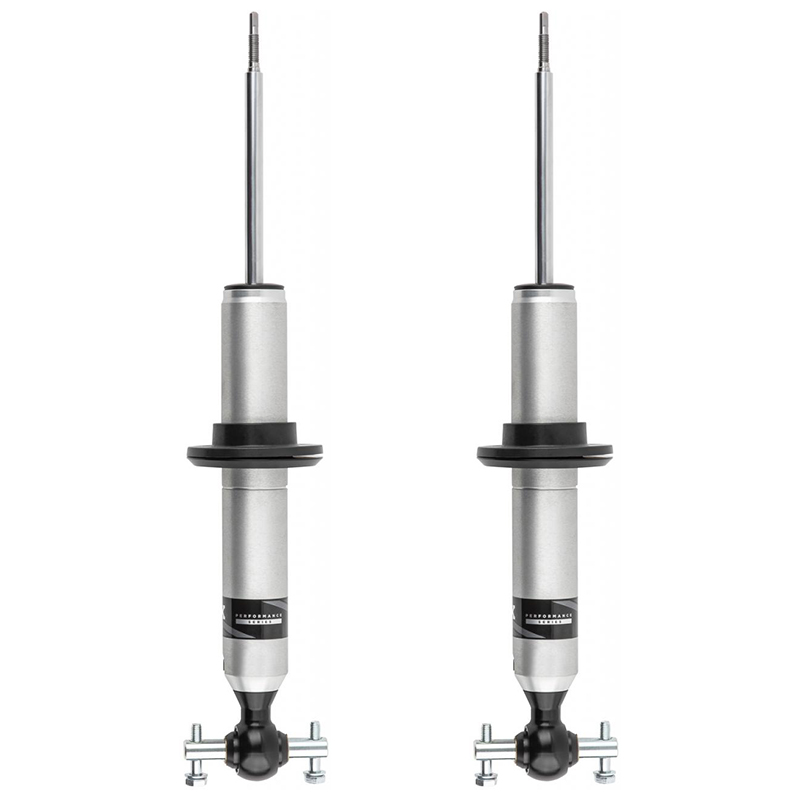

• FOX Performance Series 2.0 S/R Coilovers (# 985-62-009)

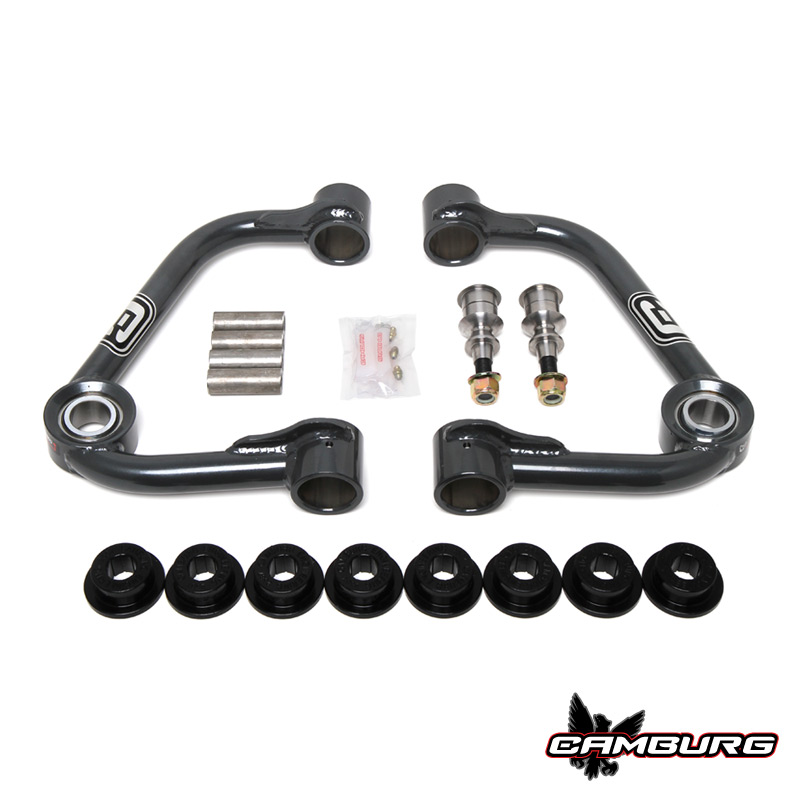

• Camburg 1.25 Uniball Upper Arms (CAM-110187)

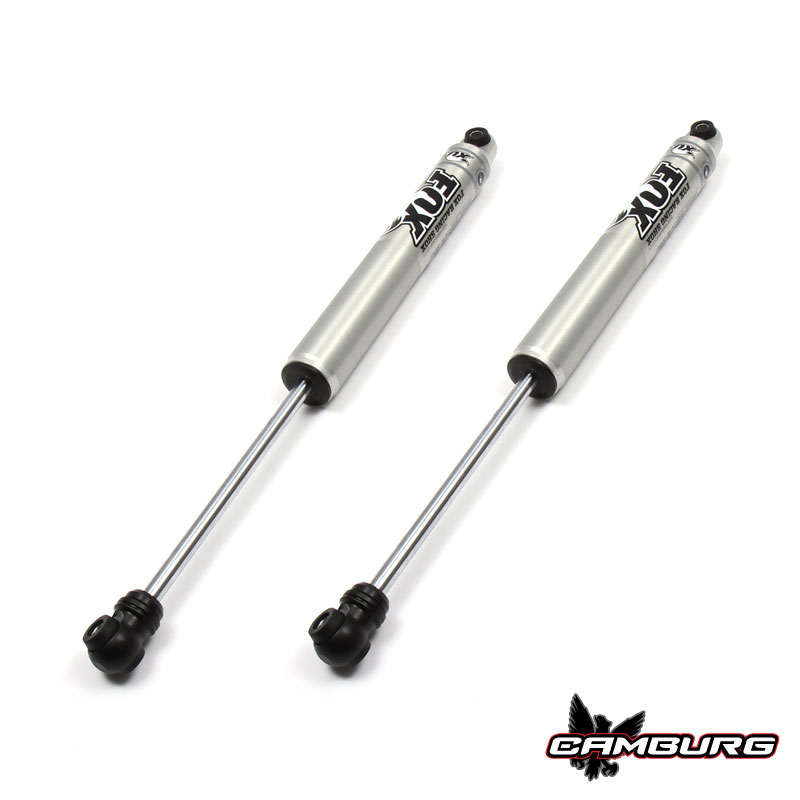

• FOX Performance Series 2.0 IFP Rear Shocks (985-24-029)

Notes:

• Springs not included (re-use factory)
• Spring mounting hardware not included (re-use factory)
• Use of a spring compressor required to install
• Note: factory 20″ wheels will not clear the upper arm and may require a wheel spacer. We highly recommend aftermarket wheels with the correct offset with all our Ford kits for optimum performance and fit.

Application:
