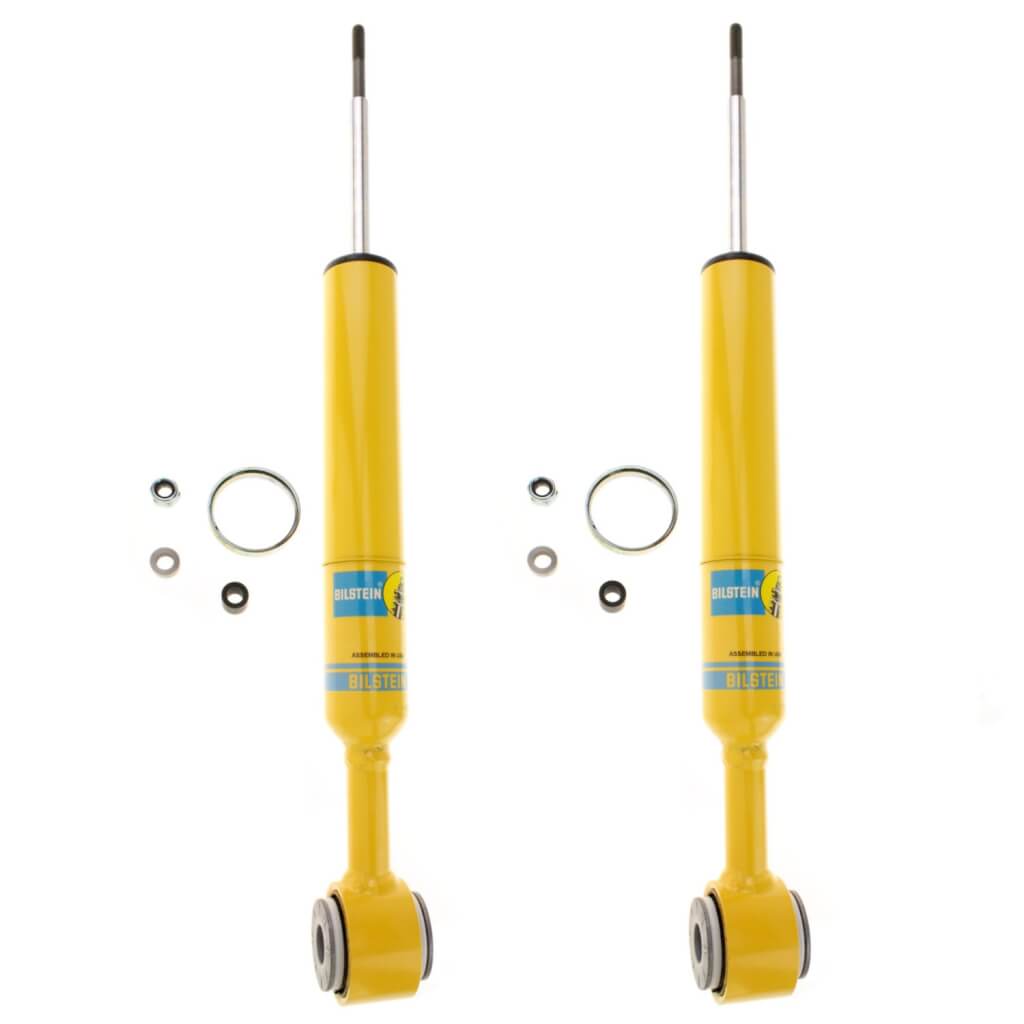

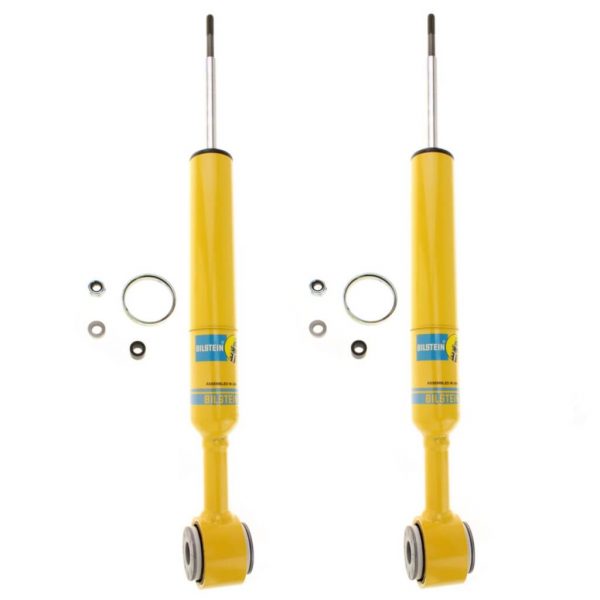

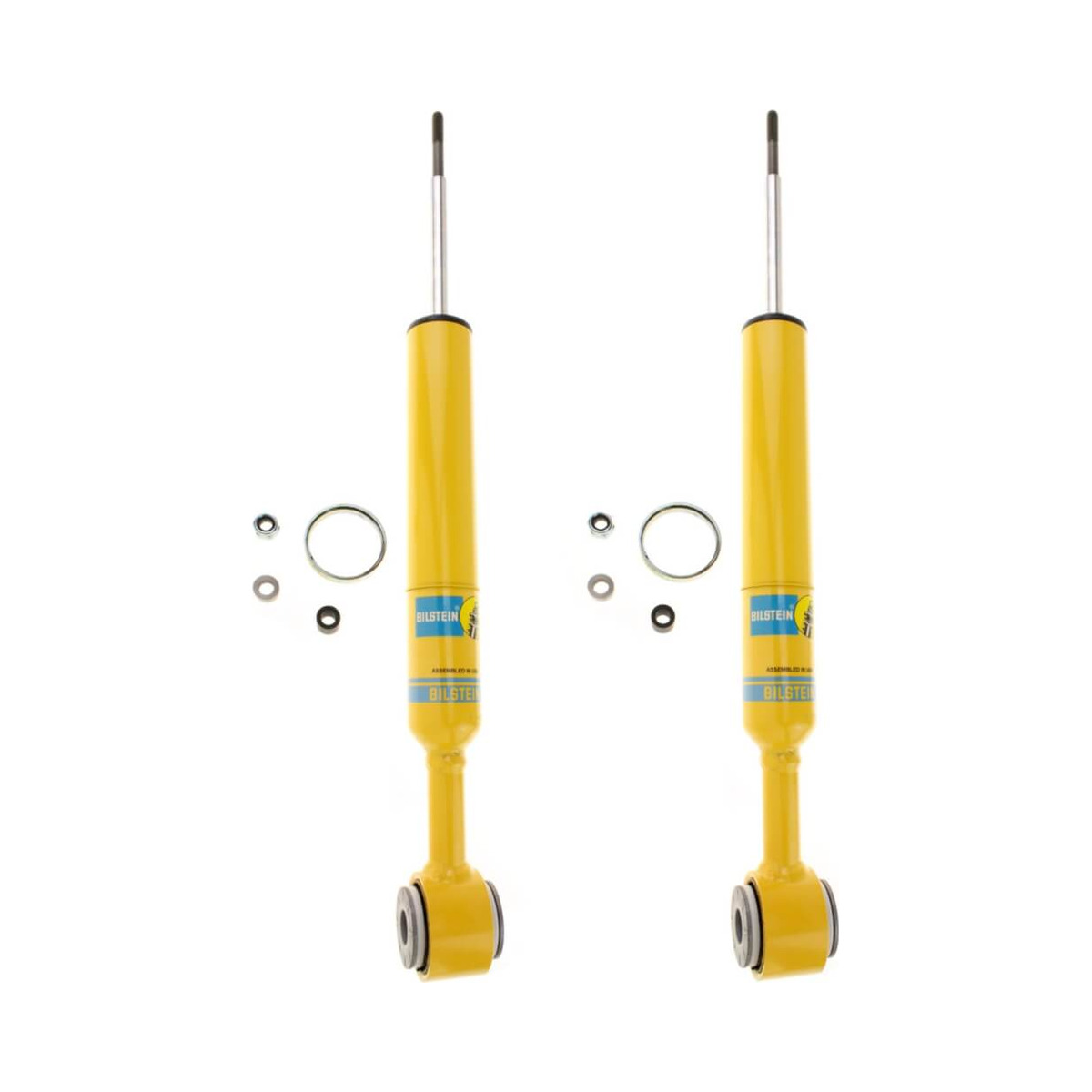

Bilstein 4600 Front Shocks for 04-’08 FORD F-150 4WD
Original price was: $256.60.$233.27Current price is: $233.27.
Only 4 left in stock
Bilstein 4600 Front Shocks for 04-’08 FORD F-150 4WD
Part Number(s): 24-317788
Summary: Bilstein B6 4600 shock absorbers are designed as a direct fit OE replacement upgrade for stock height 2004-2008 Ford F-150 4WD trucks. Featuring a sophisticated monotube design, these shocks provide consistent, fade-free performance by managing heat more effectively than traditional twin-tube shocks. Engineered specifically for light trucks and SUVs, the B6 4600 series ensures a significant improvement in ride quality, handling, and comfort for your Ford F-150.
Features
- Monotube Design: 46mm large-bore piston construction provides consistent fade-free performance to ensure reliable damping under changing road conditions.
- Velocity-Sensitive Digressive Piston: Specialized valving reacts to road inputs in real-time to ensure optimal handling and comfort for specific vehicle applications.
- Direct OE Replacement: Bolt-on installation for stock height vehicles provides an easy upgrade path to ensure improved stability without the need for suspension modifications.
Technical Specifications
| Specification | Value |
|---|---|
| Series | B6 4600 |
| Position | Front |
| Collapsed Length (mm) | 415.5 |
| Extended Length (mm) | 547.2 |
| Lower Mount Type | Eye 20.3mm |
| Upper Mount Type | Stem |
| Internal Design | Monotube |
| Finish | Yellow Paint |
| Reservoir | No |
| Body Diameter | 2.0 in. |
| Boot Included | No |
| Adjustable Damping | Non-Adjustable |
| Country of Origin | MX |
| Quantity per Vehicle | 2 |
| Warranty | Limited Lifetime Warranty |
Fitment
- 2004-2008 Ford F-150 4WD
- Note: Requires the use of the OE spring seat.
- Note: Bilstein does not include spring seats with these shocks; you must re-use your existing ones or source replacements.
What’s Included
- Includes 2 Shocks
- Part Number: 24-317788
Interchange Numbers
This product is compatible with the following part numbers:
- Bilstein 24-109345
- Bilstein 24-185882
- Bilstein BE5-A934
- Bilstein F4-BE5-A934-H1
- Ford 4L3Z 18124-DA
- Ford 4L3Z 18124-EA
- Ford 4L3Z 18124-FA
- Ford 4L3Z 18124-GA
- Ford 4L3Z 18124-HA
- Ford 5L3Z 18124-FA
- Ford 5L3Z 18124-GA
- Ford 5L3Z 18124-HA
- Ford 6L3Z 18124-DF
- Ford 6L3Z 18124-DG
- Ford 6L3Z 18124-DH
- Ford 6L3Z 18124-FF
- Ford 6L3Z 18124-FG
- Ford 6L3Z 18124-FH
- Ford 6L3Z 18124-KA
- Ford 6L3Z 18124-KG
- Ford 6L3Z 18124-KH
- Ford 6L3Z 18124-LC
- Ford 6L3Z 18124-LD
- Ford 6L3Z 18124-N
- Ford 6L3Z 18124-NC
- Ford 6L3Z 18124-ND
- Lincoln 5L3Z 18124-DA
- Lincoln 6L3Z 18124-L
- Lincoln 6L3Z 18124-LD
- Pro Comp Suspension 621553
- Pro Comp Suspension ZX2076
- Rancho RS5804
Why Choose This Product?
- OE Replacement: Direct fit replacement for stock OE shocks, ensuring easy installation and perfect compatibility.
- Monotube Advantage: Monotube design provides consistent damping and fade resistance compared to twin-tube OE shocks.
- Performance Upgrade: Improved ride quality, handling, and comfort over factory shocks without modification required.
- Bilstein Quality: German engineering and manufacturing standards ensure long-lasting performance and reliability.
Frequently Asked Questions
Are these shocks compatible with my stock height F-150?
Yes, the Bilstein B6 4600 is designed specifically as a direct fit upgrade for stock height light trucks and SUVs.
Do I need to purchase additional parts for installation?
These shocks require the use of your original equipment (OE) spring seats, as Bilstein does not include new spring seats with this part number.
What is the benefit of the Monotube design?
The monotube design allows for more efficient heat dissipation and consistent damping, which prevents the “fade” often experienced with standard twin-tube shocks during extended use.
Will these shocks lift my truck?
No, these are designed for stock height vehicles and do not create lift; they are intended to improve ride quality and handling at the factory height.
