Smittybilt XRC10 Comp Series 10,000 lb. Winch with Synthetic Rope

Smittybilt XRC10 Comp Series 10,000 lb. Winch with Synthetic Rope

Part: S/B97210

Features:

• Rated Line Pull: = 10000 lbs.
• Voltage: =12V
• Motor: =5.5 HP Series Wound Motor
• Remote Control: = 12 Ft. Lead
• 3 Stage planetary gear system
• 218:1 gear ratio
• Comes with a automatic load-holding brake

The XRC 10 is the next generation in winch features and technology. The all new 10,000 lb winch has a state of the art 5.5 HP Series Wound Motor that offers unmatched durability, overheat recovery, and a 3 Stage planetary gear sysem with a 218:1 gear ratio to deliver you the power to get you and your buddies out of any situation. All Smittybilt winches come complete with the roller fairlead, remote control, hook, and solenoid box. When winching is a part of your everyday wheeling experience, then look to the all new XRC 10 by Smittybilt to be there when you need it most. The revolutionary planetary gear system boasts an 10,000 lb. line rating and 218:1 gear ratio

Some more features:

• 5.5 hp, 12-volt, Series Wound Motor
• 23/64 x 94′ galvanized aircraft cable with replaceable hook included
• Intuitive design ensures a simple, hassle-free installation of the Smittybilt XRC-10 Winch
• A heavy duty winching system with great features at an incredible overall value
• Drum size: Diameter/Length: 2.5 (64 mm) x 8.8′ (224 mm)
• Mounting bolt pattern: 10 x 4.5 (4 bolts, 3/8) (254 mm x 114.3 mm)
• Overall Dimension (LxWxH): 21.15 x 6.3 x 8.6 (537 mm x 160 mm x 218 mm)
• Total shipping weight: 94 lbs (42.5 kgs)

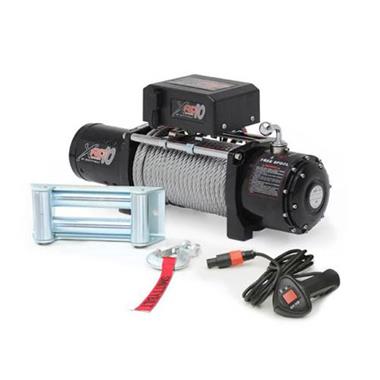

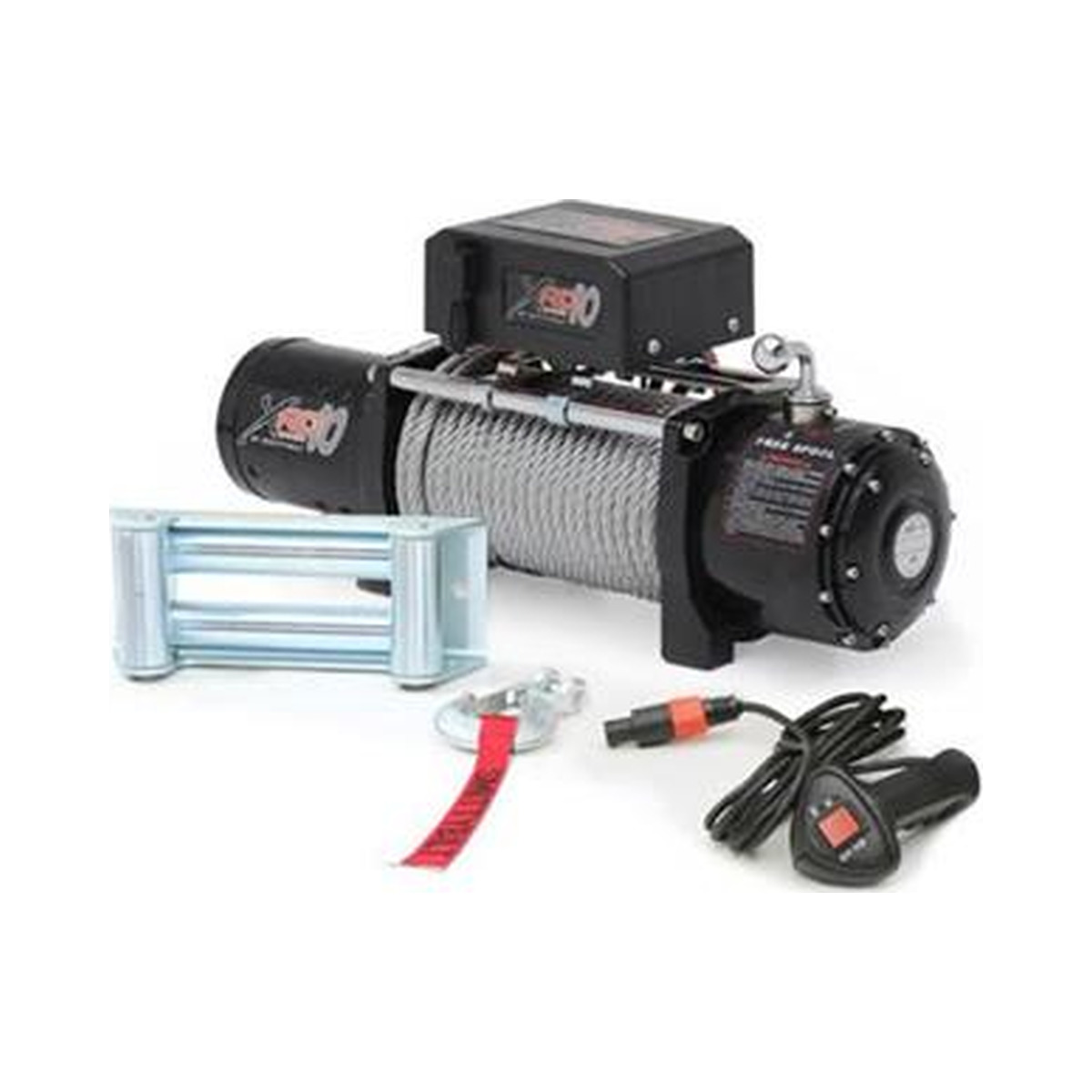

• Includes Wired Remote Control, Roller Fairlead, and Hook
• **Roller Fairlead Does Not Mount To Winch**

Download Installation Instructions Smittybilt XRC10 Comp Series 10,000 lb. Winch with Synthetic Rope
