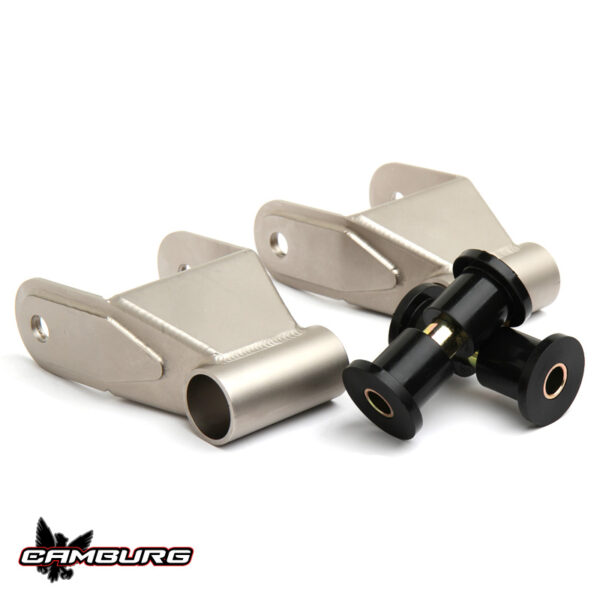

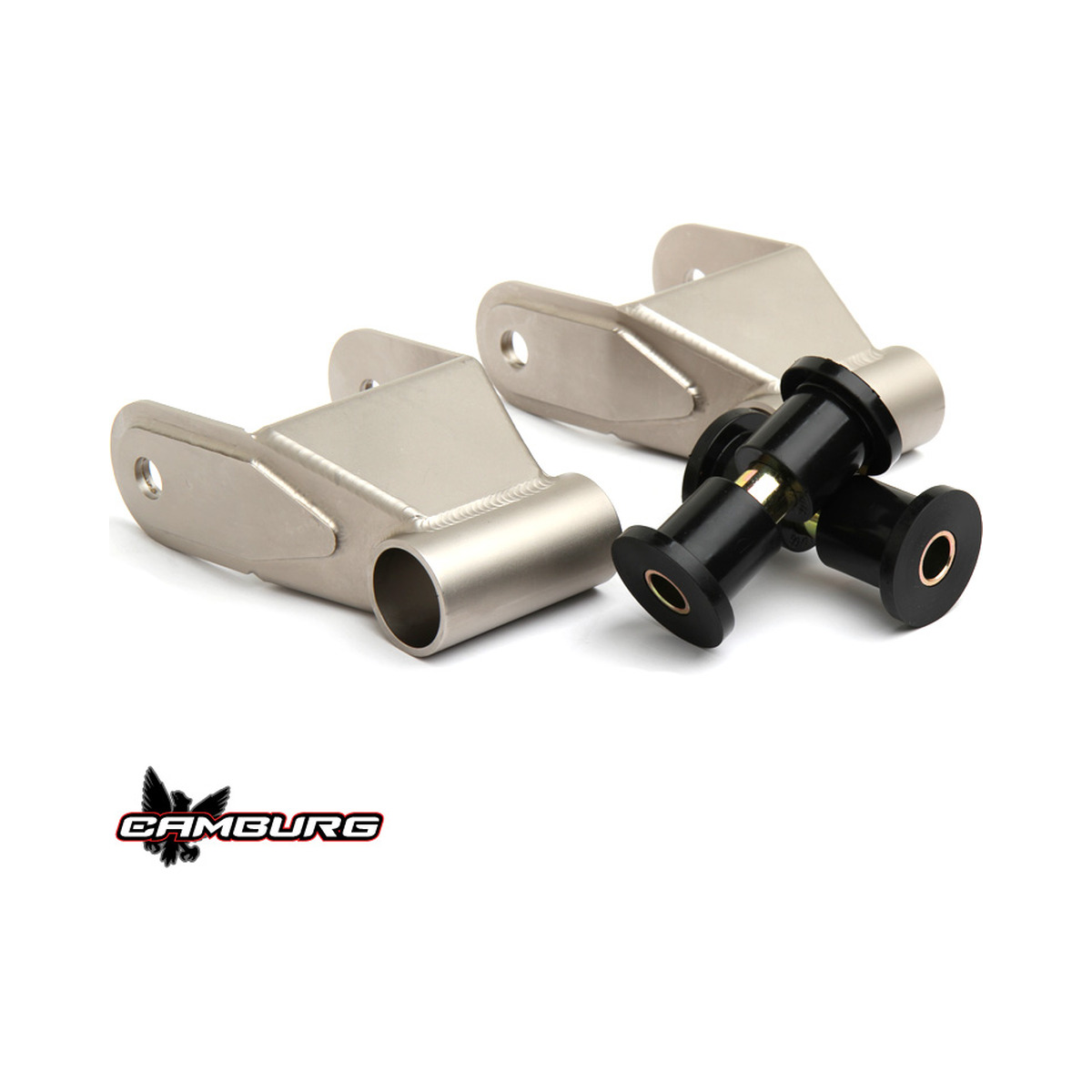

Camburg Ford F-150 2wd/4wd 04-14 Rear TIG 4130 Extended Length Shackles
$299.00
Out of stock
Camburg Ford F-150 2wd/4wd 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2021, 2013, 2014, Rear TIG 4130 Extended Length Shackles
Part: CAM-120027
Description
Our extended shackle is designed around using Deaver leaf springs but can also be used with stock springs. We’ve updated the design to a fully boxed/sealed version so they don’t have the dimple dies.
These are longer length than the stock shackles and allow for maximum wheel travel. Using polyurethane bushings keeps them from deflecting under articulation like the stock ones and also allows them to pivot smoother and unrestricted. The stock shackles are too short and limit droop. These are 1.5″ longer than stock. Since the shackles are longer, they will lower the ride height compared to the stock shackles. These fit the OEM 3″ wide leaf springs (3.50″ w/ bushings).
On Bronco’s you need to clearance the body seam behind the shackle to it doesn’t hit it on compression unless you use a drop hanger which will raise the ride height back up.
These are laser cut from 4130 chromoly, CNC formed, TIG welded then bead blasted and powdercoated Camburg steel gray.
These shackles are 6″ eye to eye in length.
Tech Specs:
- 1 pair shackles

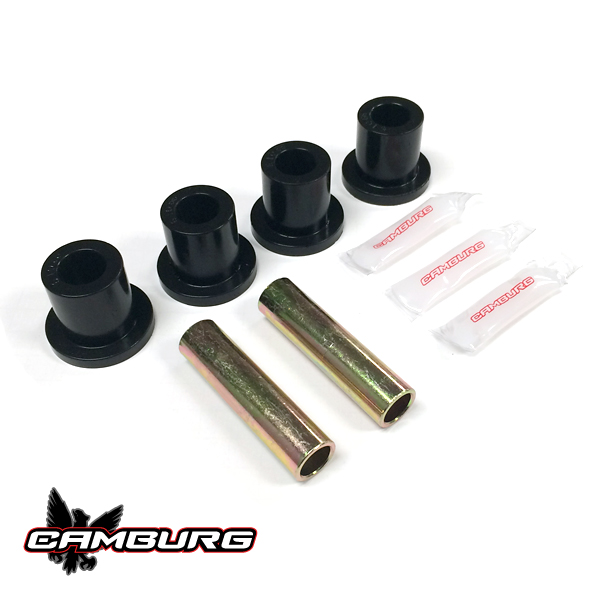

- Polyurethane Bushings & Sleeves
- Grease
Notes:
Application:
| Make | Model | Year |
|---|---|---|
| Ford | Bronco | 1986-1996 |
| Ford | F-150 | 1986-2014 |
| Ford | Raptor | 2010-2014 |
