FOX 2.0 Performance Res 0-1 Rear Lift Shocks 1999-2004 Ford F350 4WD

FOX 2.0 Performance Res 0-1 Rear Lift Shocks 1999-2004 Ford F350 4WD

Part Number: 985-24-104

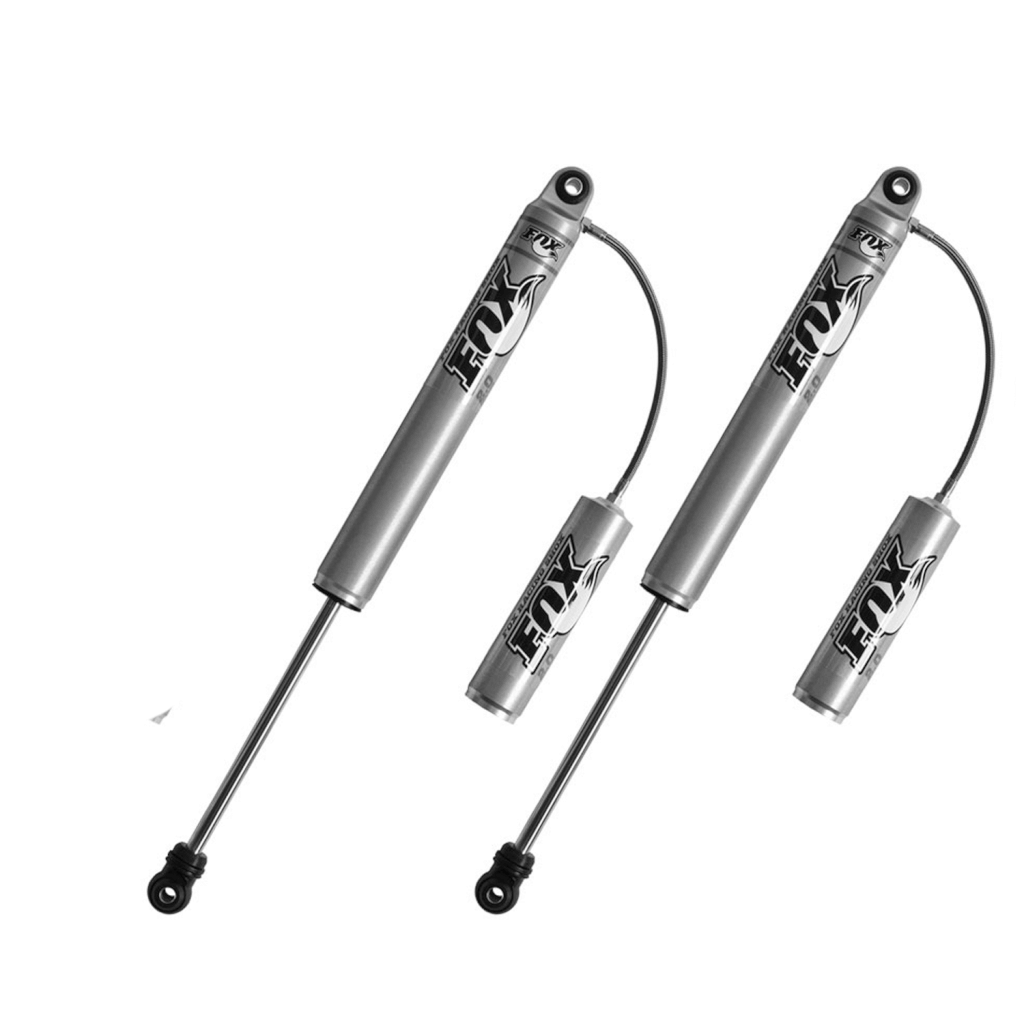

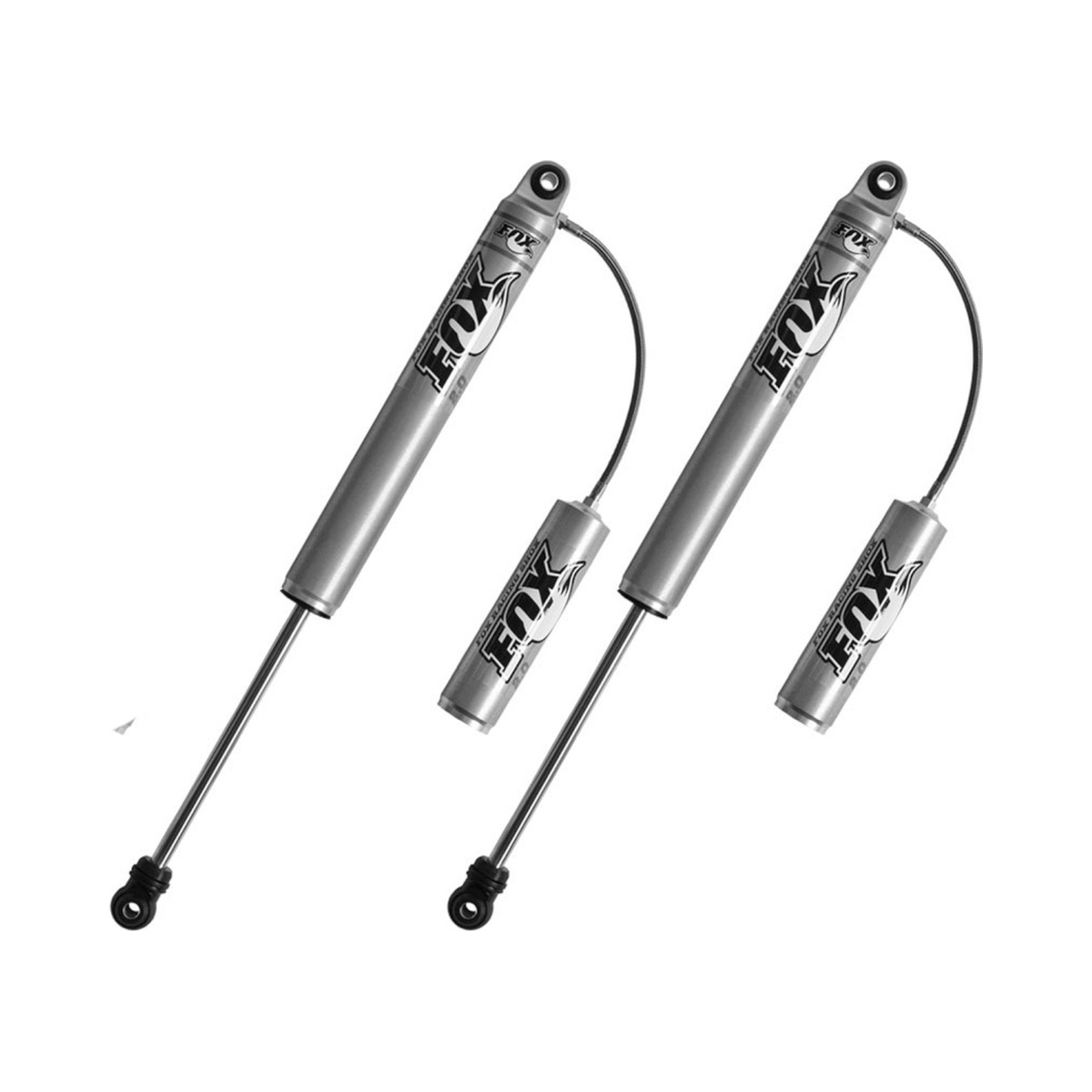

Summary: The FOX 2.0 Performance Series Reservoir smooth body shocks are engineered for the 1999-2004 Ford F350 4WD to deliver race-dominating performance in a bolt-on package. Utilizing an External Reservoir, these shocks are designed to increase oil and nitrogen capacity, significantly reducing heat build-up during operation. The metal-impacted 6061-T6 aluminum body dissipates heat faster than conventional steel, providing a predictable ride quality even when handling the roughest road conditions.

Features

• External Reservoir: 2.0-inch hard-anodized 6061-T6 aluminum construction provides increased oil and nitrogen capacity to ensure enhanced cooling and fade resistance.
• Aluminum Shock Body: 2.0-inch metal-impacted 6061-T6 aluminum provides superior heat dissipation and rust resistance to ensure long-term durability in harsh environments.
• High-Flow Piston: Race-developed high-flow design provides application-specific valving to ensure maximized performance and predictable damping.
• Alloy Steel Shaft: 5/8-inch hard chrome plated, heat-treated alloy steel provides high tensile strength to ensure structural integrity under heavy loads.
• Advanced Suspension Fluid: JM92 fluid provides consistent damping properties across variable temperatures to ensure stable performance in various climates.

Technical Specifications

Fitment

• 1999-2004 Ford F350
• Note: Will not work on Chassis Cab/Utility. Configured for 0-1 inch rear lift.

What’s Included

• Includes 2 Shocks
• Billet Reservoir Mounting Clamps
• CNC-machined 6061-T6 aluminum components

Why Choose This Product?

• Engineering Advantage: The use of 6061-T6 aluminum for both the body and the external reservoir allows for much faster thermal transfer compared to traditional steel shocks, keeping the internal valving within its optimal temperature range.
• Performance Benefit: Drivers will experience a more controlled and predictable ride on rough terrain due to the increased fluid capacity and application-specific tuning.

Frequently Asked Questions

What is the benefit of the external reservoir on these shocks?
The external reservoir increases the total oil and nitrogen capacity of the shock, which improves heat dissipation and prevents performance fade during sustained use.

Will these shocks fit a Ford F350 Chassis Cab model?
No, these shocks are specifically noted to not work on Chassis Cab or Utility models.

Are the mounting clamps included with this part number?
Yes, this package includes black-anodized, CNC-machined billet aluminum reservoir mounting clamps.
