Bilstein 6112 Series 1.7-3.2" Leveling Kit For 2003-2009 Lexus GX470 4WD (150-200 lbs)

Bilstein 6112 Assembled 1.7-3.2″ Coilovers for 2003-2009 Lexus GX470 4WD (150-200 lbs)

Base Price: Original price was: $991.00.Current price is: $949.00.

In stock

( ! ) Deprecated: Creation of dynamic property woocommerce_gravityforms_product_form::$previous_page is deprecated in /var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/plugins/woocommerce-gravityforms-product-addons/gravityforms-product-addons-form.php on line 79
Call Stack
#	Time	Memory	Function	Location
1	0.0001	402064	{main}( )	.../index.php:0
2	0.0001	403560	require( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-blog-header.php )	.../index.php:17
3	1.1888	165614048	require_once( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-includes/template-loader.php )	.../wp-blog-header.php:19
4	1.2702	165882752	include( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/single-product.php )	.../template-loader.php:132
5	1.6612	190525736	wc_get_template_part( $slug = 'content', $name = 'single-product' )	.../single-product.php:41
6	1.6613	190526304	load_template( $_template_file = '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/content-single-product.php', $load_once = FALSE, $args = ??? )	.../wc-core-functions.php:285
7	1.6614	190555640	require( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/content-single-product.php )	.../template.php:816
8	1.7114	191071224	do_action( $hook_name = 'woocommerce_single_product_summary' )	.../content-single-product.php:220
9	1.7114	191071440	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
10	1.7114	191071440	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
11	1.7204	191229992	woocommerce_template_single_add_to_cart( '' )	.../class-wp-hook.php:341
12	1.7204	191230048	do_action( $hook_name = 'woocommerce_simple_add_to_cart' )	.../wc-template-functions.php:1923
13	1.7204	191230264	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
14	1.7204	191230264	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
15	1.7204	191230696	woocommerce_simple_add_to_cart( '' )	.../class-wp-hook.php:341
16	1.7204	191230696	wc_get_template( $template_name = 'single-product/add-to-cart/simple.php', $args = ???, $template_path = ???, $default_path = ??? )	.../wc-template-functions.php:1933
17	1.7205	191240952	include( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/plugins/woocommerce/templates/single-product/add-to-cart/simple.php )	.../wc-core-functions.php:346
18	1.7231	191247584	do_action( $hook_name = 'woocommerce_before_add_to_cart_button' )	.../simple.php:33
19	1.7231	191247800	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
20	1.7231	191247800	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
21	1.7231	191248232	WC_GFPA_Main->woocommerce_gravityform( '' )	.../class-wp-hook.php:341
22	1.7265	191303960	woocommerce_gravityforms_product_form->get_form( $options = ['reorder_processing' => 'resubmit', 'reorder_hydrate_defaults' => 'yes', 'use_ajax' => 'no', 'is_ajax' => FALSE, 'show_wc_notices' => 'yes', 'validation_message' => 'There was a problem with your submission. Please review the fields below.', 'id' => '2154', 'bulk_id' => 0, 'display_title' => FALSE, 'display_description' => FALSE, 'disable_woocommerce_price' => 'no', 'price_before' => 'Base Price:', 'price_after' => '', 'disable_calculations' => 'no', 'disable_label_subtotal' => 'yes', 'disable_label_options' => 'yes', 'disable_label_total' => 'no', 'disable_anchor' => 'no', 'label_subtotal' => 'Subtotal', 'label_options' => 'Options', 'label_total' => 'Total', 'enable_cart_edit' => 'no', 'enable_cart_edit_remove' => 'yes', 'keep_cart_entries' => 'no', 'send_notifications' => 'no', 'enable_cart_quantity_management' => 'no', 'cart_quantity_field' => '', 'update_payment_details' => 'no', 'display_totals_location' => 'after', 'structured_data_override' => 'no', 'structured_data_low_price' => '', 'structured_data_high_price' => '', 'structured_data_override_type' => 'append'] )	.../gravityforms-product-addons-main.php:178

Coilover Assembly

Subtotal
Options
Total

Add to wishlist

SKU: 47-311190-GX-ASB Categories: Front Lifts, GX470

Description

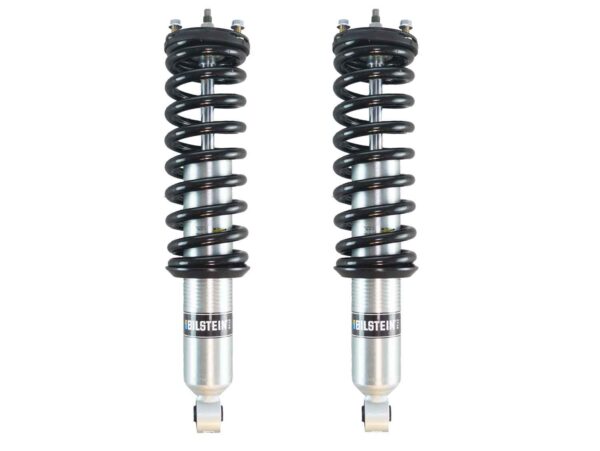

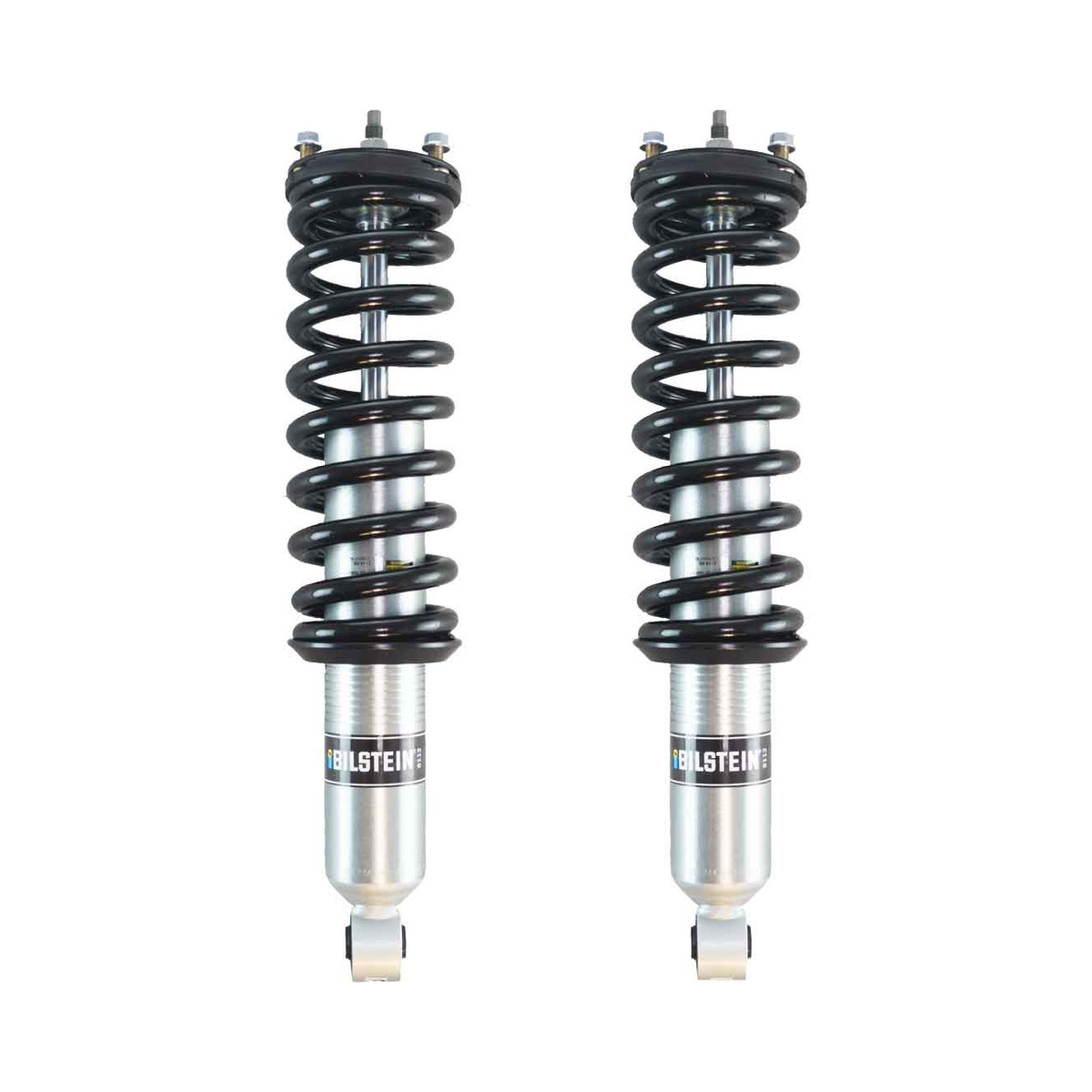

Bilstein 6112 Assembled 1.7-3.2″ Coilovers for 2003, 2004, 2005, 2006, 2007, 2008, 2009 Lexus GX470 4WD (150-200 lbs)

Part: 47-311190-GX-ASB (old:47-284142-GX-ASB)

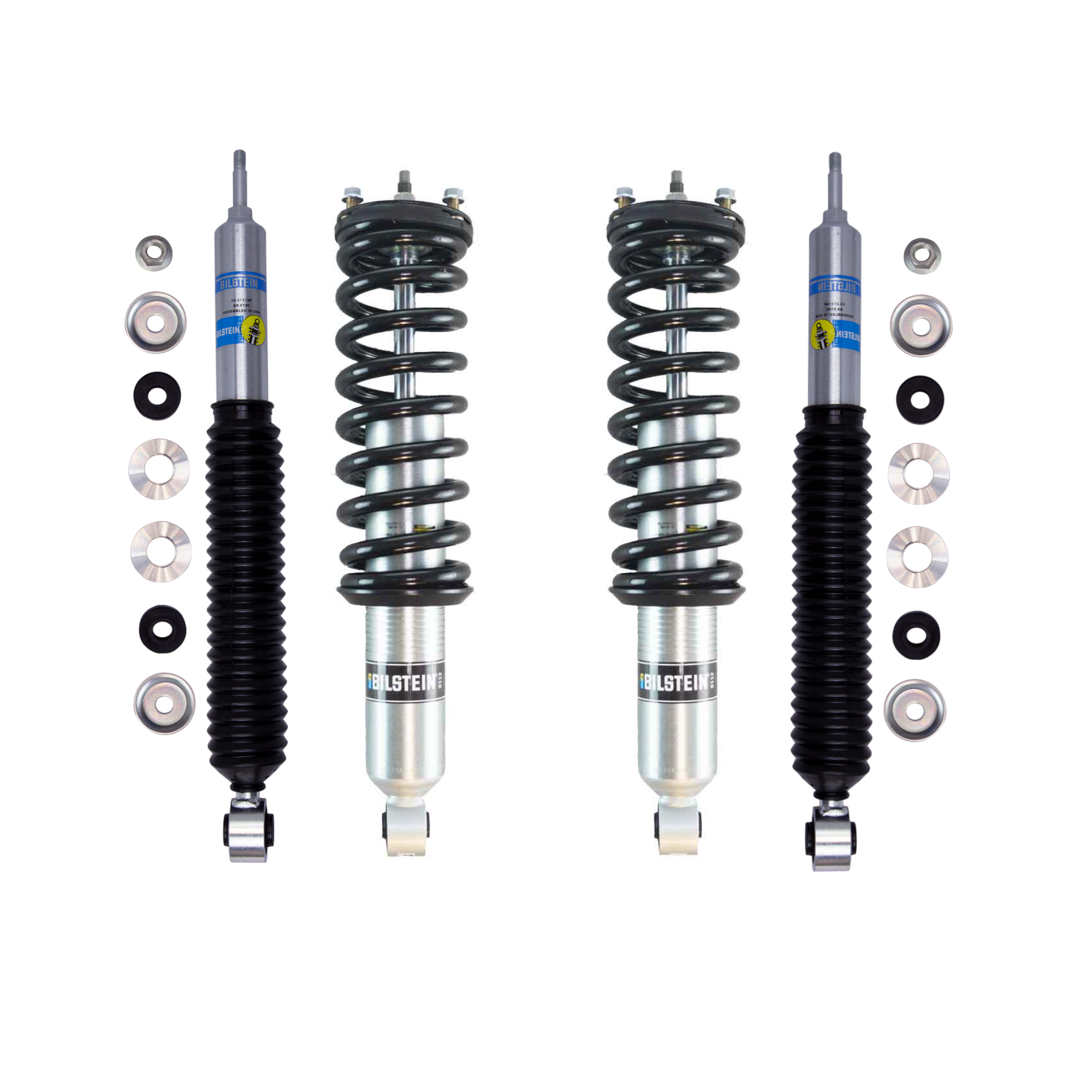

Need the full kit? Bilstein 6112 Assembled 1.7-3.2" Coilovers and B8 5100 0-2" Rear Lift Shocks for 2003-2009 Lexus GX470 4WD (150-200 lbs)

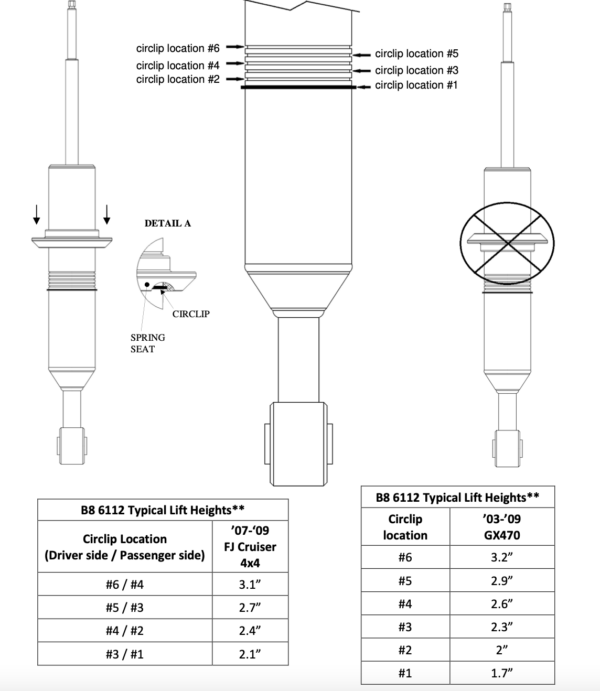

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

Download 47-284142 installation instructions

Finish: Dampers: Zinc Plated/Springs: Black
Reservoir: No
Body Design: Snap Ring Grooved Body (Coilover)
Body Diameter: 60mm

Notes:

For 150-200 lbs additional front weight
Requires use of 2X Toyota Upper Shock Mount Assy 48609-60100

Additional information

Weight	45 lbs
Dimensions	28 × 12.75 × 4.65 in
4WD-2WD	4WD
Brand	Bilstein
Front-Rear	Front
Lift	1.7 , 1.75 , 1.8 , 1.875 , 2 , 2.2 , 2.25 , 2.28 , 2.3 , 2.4 , 2.5 , 2.6 , 2.625 , 2.63 , 2.75 , 2.8 , 3 , 3.2
Make	Lexus
Model	GX470
Product Type	Coilovers
Year	2003 , 2004 , 2005 , 2006 , 2007 , 2008 , 2009
