Bilstein 5100 0-2″ Front Lift Assembled Coilovers for 2004-2015 Nissan Titan 4WD

Q: How much front lift can I set?

These 5100s provide approximately 0–2 inches of front lift on 4WD Titans (exact height depends on perch setting and vehicle weight).

Q: Do I need a spring compressor?

No. The coilovers ship pre-assembled with new top mounts and hardware.

5 out of 5 based on 2 customer ratings

(2 customer reviews)

Original price was: $709.48.Current price is: $649.99.

In stock

( ! ) Deprecated: Creation of dynamic property woocommerce_gravityforms_product_form::$previous_page is deprecated in /var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/plugins/woocommerce-gravityforms-product-addons/gravityforms-product-addons-form.php on line 79
Call Stack
#	Time	Memory	Function	Location
1	0.0000	402064	{main}( )	.../index.php:0
2	0.0000	403560	require( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-blog-header.php )	.../index.php:17
3	0.9921	165617008	require_once( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-includes/template-loader.php )	.../wp-blog-header.php:19
4	1.0793	165878416	include( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/single-product.php )	.../template-loader.php:132
5	1.5147	188549152	wc_get_template_part( $slug = 'content', $name = 'single-product' )	.../single-product.php:41
6	1.5148	188549720	load_template( $_template_file = '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/content-single-product.php', $load_once = FALSE, $args = ??? )	.../wc-core-functions.php:285
7	1.5150	188579056	require( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/content-single-product.php )	.../template.php:816
8	1.5584	189019056	do_action( $hook_name = 'woocommerce_single_product_summary' )	.../content-single-product.php:220
9	1.5584	189019272	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
10	1.5584	189019272	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
11	1.5725	189190544	woocommerce_template_single_add_to_cart( '' )	.../class-wp-hook.php:341
12	1.5725	189190600	do_action( $hook_name = 'woocommerce_simple_add_to_cart' )	.../wc-template-functions.php:1923
13	1.5725	189190816	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
14	1.5725	189190816	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
15	1.5725	189191248	woocommerce_simple_add_to_cart( '' )	.../class-wp-hook.php:341
16	1.5725	189191248	wc_get_template( $template_name = 'single-product/add-to-cart/simple.php', $args = ???, $template_path = ???, $default_path = ??? )	.../wc-template-functions.php:1933
17	1.5727	189201504	include( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/plugins/woocommerce/templates/single-product/add-to-cart/simple.php )	.../wc-core-functions.php:346
18	1.5771	189208136	do_action( $hook_name = 'woocommerce_before_add_to_cart_button' )	.../simple.php:33
19	1.5771	189208352	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
20	1.5771	189208352	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
21	1.5771	189208784	WC_GFPA_Main->woocommerce_gravityform( '' )	.../class-wp-hook.php:341
22	1.5833	189264344	woocommerce_gravityforms_product_form->get_form( $options = ['reorder_processing' => 'resubmit', 'reorder_hydrate_defaults' => 'yes', 'use_ajax' => 'no', 'is_ajax' => FALSE, 'show_wc_notices' => 'yes', 'validation_message' => 'There was a problem with your submission. Please review the fields below.', 'id' => '2345', 'bulk_id' => 0, 'display_title' => FALSE, 'display_description' => FALSE, 'disable_woocommerce_price' => 'no', 'price_before' => '', 'price_after' => '', 'disable_calculations' => 'no', 'disable_label_subtotal' => 'yes', 'disable_label_options' => 'yes', 'disable_label_total' => 'no', 'disable_anchor' => 'no', 'label_subtotal' => 'Subtotal', 'label_options' => 'Options', 'label_total' => 'Total', 'enable_cart_edit' => 'no', 'enable_cart_edit_remove' => 'yes', 'keep_cart_entries' => 'no', 'send_notifications' => 'no', 'enable_cart_quantity_management' => 'no', 'cart_quantity_field' => '', 'update_payment_details' => 'no', 'display_totals_location' => 'after', 'structured_data_override' => 'no', 'structured_data_low_price' => '', 'structured_data_high_price' => '', 'structured_data_override_type' => 'append'] )	.../gravityforms-product-addons-main.php:178

Subtotal
Options
Total

Add to compare

Add to wishlist

SKU: 5100BILNT04C Categories: Nissan, Nissan Titan, Suspension

Description

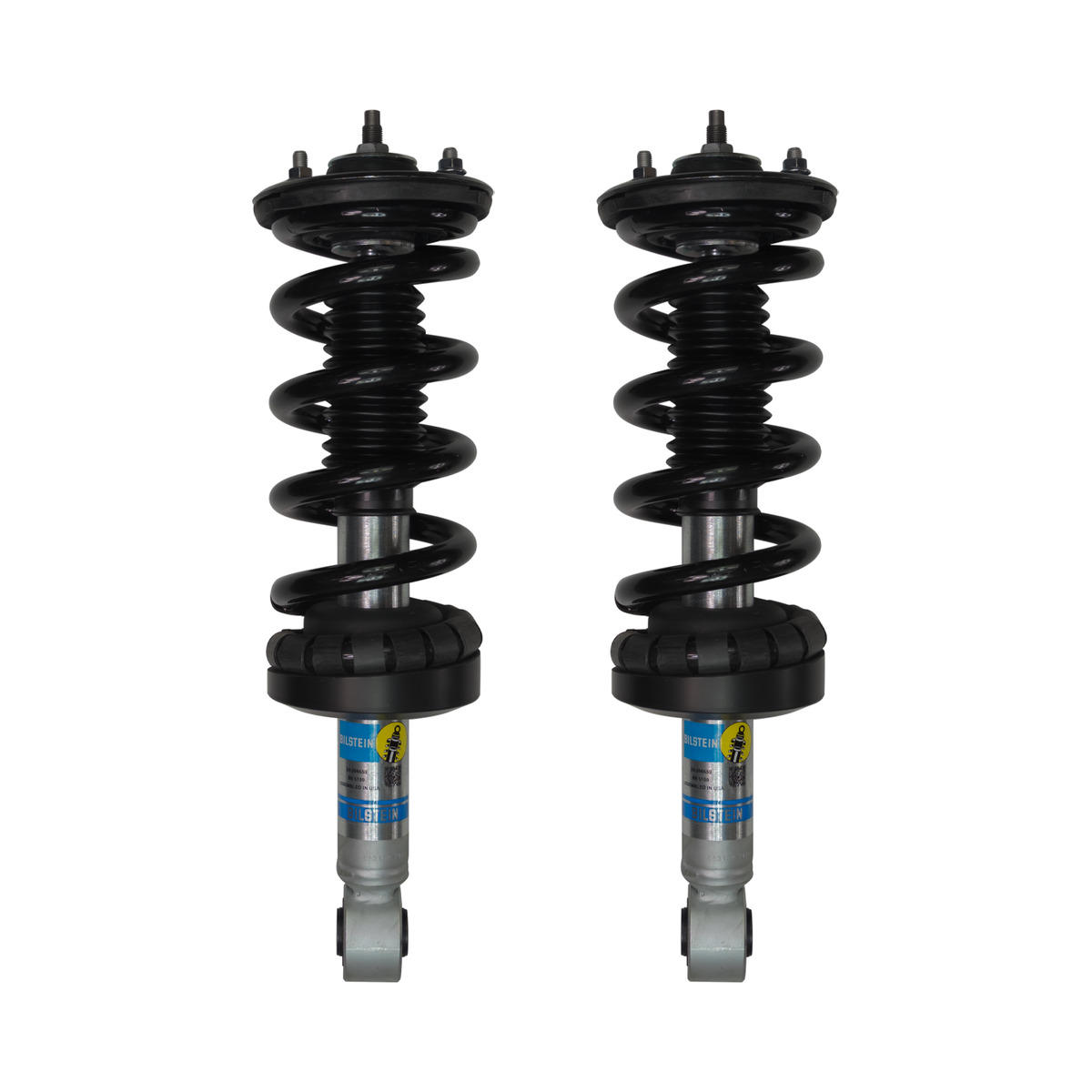

Bilstein 5100 0-2″ Front Lift Assembled Coilovers – 2004-2015 Nissan Titan 4WD

Part #: 5100BILNT04C

Wake up your Titan’s front end with pre-assembled Bilstein B8 5100 coilovers designed for confident control on-road and composed performance off-road. Multiple snap-ring grooves let you set 0-2″ of front lift for a level stance and added tyre clearance, while Bilstein’s 46 mm monotube architecture keeps damping consistent over washboards, potholes, and mountain passes.

Ride-height tuning: Snap-ring adjustable spring perch for precise 0-2″ front lift on 4WD Titans.
Monotube control: 46 mm digressive piston with self-adjusting deflective discs = crisp turn-in and stable braking without harshness.
Fade-resistant: High-pressure nitrogen and large oil volume resist heat build-up on long, rough stretches.
Ready to bolt on: Ships pre-assembled with new top mounts, bushings, and hardware-no spring compressor needed.
Durable finish: Zinc-plated bodies for corrosion resistance in real-world weather.

Need matching rears? Add the paired rear shocks here: Bilstein 5100 0-2″ Front Lift Assembled Coilovers and 0-1″ Rear Lift Shocks for 2004-2015 Nissan Titan

What’s Included

(2) Bilstein B8 5100 front height-adjustable shocks – 24-197649
(2) Coil springs (assembled on shocks)
(2) New top mounts (OEM quality or better) plus all required bushings and hardware

Assembly lead time: Coilover assembly typically ships in 3-7 business days.

Fitment

Vehicle: Nissan Titan 4WD – 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
Front lift range: ~0-2″ (configuration-dependent)
Notes: Designed for OE front coilover-style suspension

Key Specs (24-197649)

Extended length: 15.61″ (396.5 mm)
Collapsed length: 11.37″ (288.7 mm)
Body diameter: 46 mm
Body design: Snap-ring grooved body (coilover)
Finish: Zinc plated
Reservoir: No
Damping: Non-adjustable (digressive valving)
Spring seat included: Yes
Replacement mounting kit: B4-KT1-Z361A00

Ride, Handling & Tyre Notes

Expect a firmer, more controlled feel than stock with reduced nose-dive and body roll. With ~1-2″ front lift, many Titans fit larger all-terrains on factory wheels; exact tyre clearance depends on tyre model and wheel offset.

Installation Notes

No spring compressor required-units arrive pre-assembled.
Alignment required after changing ride height.
Tighten control-arm and link bushings at ride height to avoid preload and squeaks.

FAQs

How much front lift can I set?

These 5100s provide approximately 0-2″ of front lift on 4WD Titans (exact height depends on perch setting and vehicle weight).

Do I need a spring compressor?

No. The coilovers ship pre-assembled with new top mounts and hardware.

Will this kit level my truck?

Yes-set the snap-ring to achieve the nose-up height you prefer. Most owners use ~1.5-2″ to reduce factory rake.

Are the shocks rebuildable or revalvable?

Bilstein 5100s are designed for long service life without routine rebuilds. If you need different damping or service after high mileage, contact us for options.

Additional information

Weight	50.31 lbs
Dimensions	24.01 × 10.01 × 5.51 in
4WD-2WD	4WD
Front-Rear	Front
Brand	Bilstein
Make	Nissan
Model	Titan
Product Type	Coilovers
Year	2004 , 2005 , 2006 , 2007 , 2008 , 2009 , 2010 , 2011 , 2012 , 2013 , 2014 , 2015
Lift	0 , 0.5 , 1 , 1.5 , 2
