Bilstein 5100 Assembled Front 0-2.2 Lift Coilovers with 0-1 Rear Lift Shocks for 2017-2023 Nissan Titan Non-XD

Bilstein 5100 Assembled Front 0-2.2″ Lift Coilovers with 0-1″ Rear Lift Shocks for 2017-2024 Nissan Titan Non-XD

Name: Bilstein 5100 Assembled Front 0-2.2" Lift Coilovers with 0-1" Rear Lift Shocks for 2017-2024 Nissan Titan Non-XD
Brand: Bilstein
SKU: 5100BILNT17
Availability: InStock
Rating: 5.00 (1 reviews)

5 out of 5 based on 1 customer rating

(1 customer review)

$977.49

In stock

( ! ) Deprecated: Creation of dynamic property woocommerce_gravityforms_product_form::$previous_page is deprecated in /var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/plugins/woocommerce-gravityforms-product-addons/gravityforms-product-addons-form.php on line 79
Call Stack
#	Time	Memory	Function	Location
1	0.0000	402048	{main}( )	.../index.php:0
2	0.0001	403544	require( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-blog-header.php )	.../index.php:17
3	1.6604	165627632	require_once( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-includes/template-loader.php )	.../wp-blog-header.php:19
4	1.7580	165890448	include( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/single-product.php )	.../template-loader.php:132
5	2.3317	188486592	wc_get_template_part( $slug = 'content', $name = 'single-product' )	.../single-product.php:41
6	2.3318	188487160	load_template( $_template_file = '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/content-single-product.php', $load_once = FALSE, $args = ??? )	.../wc-core-functions.php:285
7	2.3321	188516496	require( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/content-single-product.php )	.../template.php:816
8	2.4173	188995432	do_action( $hook_name = 'woocommerce_single_product_summary' )	.../content-single-product.php:220
9	2.4173	188995648	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
10	2.4173	188995648	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
11	2.4299	189054288	woocommerce_template_single_add_to_cart( '' )	.../class-wp-hook.php:341
12	2.4299	189054344	do_action( $hook_name = 'woocommerce_simple_add_to_cart' )	.../wc-template-functions.php:1923
13	2.4299	189054560	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
14	2.4299	189054560	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
15	2.4299	189054992	woocommerce_simple_add_to_cart( '' )	.../class-wp-hook.php:341
16	2.4299	189054992	wc_get_template( $template_name = 'single-product/add-to-cart/simple.php', $args = ???, $template_path = ???, $default_path = ??? )	.../wc-template-functions.php:1933
17	2.4301	189065248	include( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/plugins/woocommerce/templates/single-product/add-to-cart/simple.php )	.../wc-core-functions.php:346
18	2.4351	189071880	do_action( $hook_name = 'woocommerce_before_add_to_cart_button' )	.../simple.php:33
19	2.4351	189072096	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
20	2.4351	189072096	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
21	2.4351	189072528	WC_GFPA_Main->woocommerce_gravityform( '' )	.../class-wp-hook.php:341
22	2.4522	189128312	woocommerce_gravityforms_product_form->get_form( $options = ['reorder_processing' => 'resubmit', 'reorder_hydrate_defaults' => 'yes', 'use_ajax' => 'no', 'is_ajax' => FALSE, 'show_wc_notices' => 'yes', 'validation_message' => 'There was a problem with your submission. Please review the fields below.', 'id' => '2338', 'bulk_id' => 0, 'display_title' => FALSE, 'display_description' => FALSE, 'disable_woocommerce_price' => 'no', 'price_before' => '', 'price_after' => '', 'disable_calculations' => 'no', 'disable_label_subtotal' => 'no', 'disable_label_options' => 'no', 'disable_label_total' => 'no', 'disable_anchor' => 'no', 'label_subtotal' => 'Subtotal', 'label_options' => 'Options', 'label_total' => 'Total', 'enable_cart_edit' => 'no', 'enable_cart_edit_remove' => 'yes', 'keep_cart_entries' => 'no', 'send_notifications' => 'no', 'enable_cart_quantity_management' => 'no', 'cart_quantity_field' => '', 'update_payment_details' => 'no', 'display_totals_location' => 'after', 'structured_data_override' => 'no', 'structured_data_low_price' => '', 'structured_data_high_price' => '', 'structured_data_override_type' => 'append'] )	.../gravityforms-product-addons-main.php:178

Subtotal
Options
Total

Add to compare

Add to wishlist

SKU: 5100BILNT17 Categories: Nissan Titan, Suspension

Description

Bilstein 5100 0-2.2″ Front Lift Pre-Assembled Coilovers + 0-1″ Rear 5100 Shocks – 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 Nissan Titan (Non-XD)

Part #: 5100BILNT17

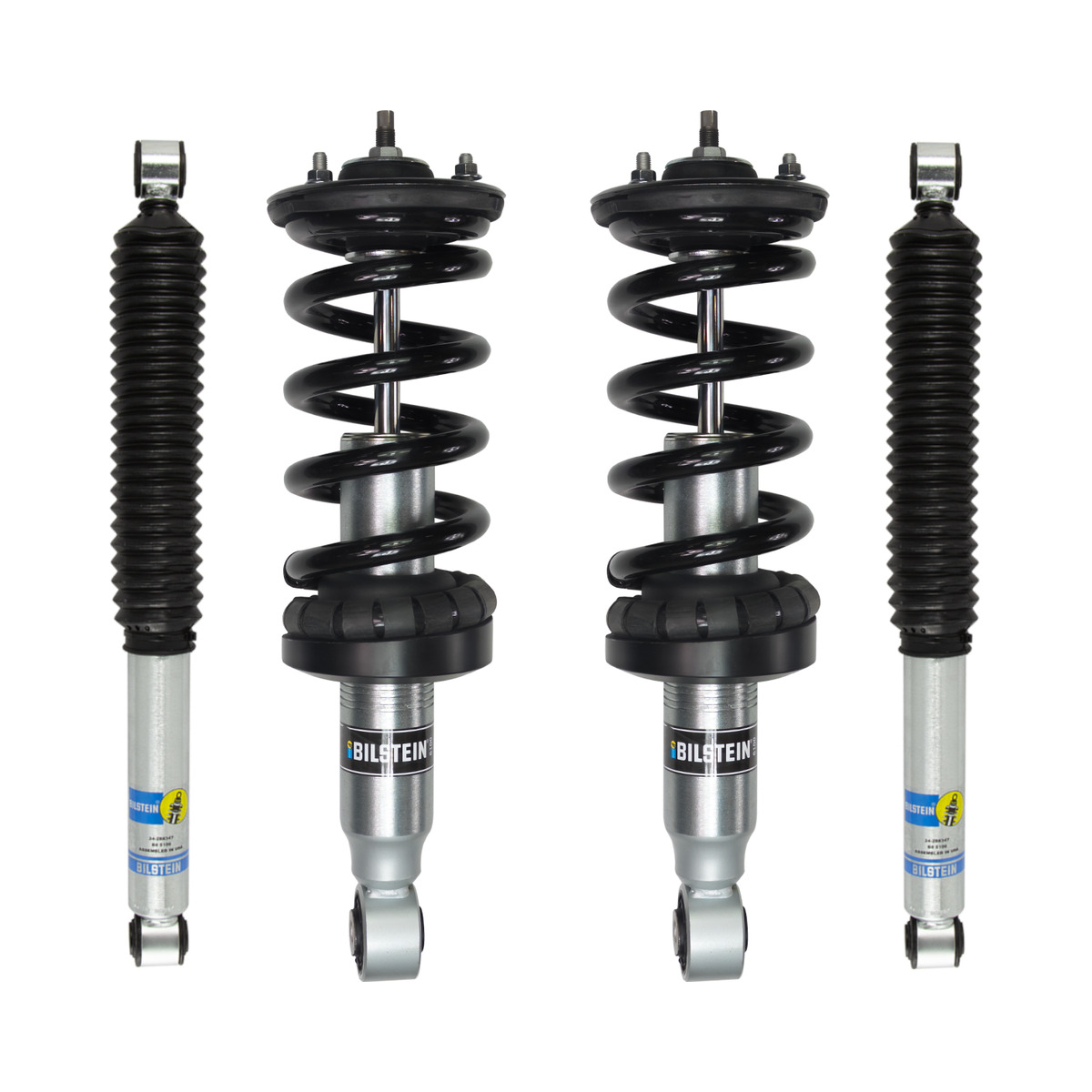

What’s Included

Front: Pre-assembled Bilstein B8 5100 coilovers with new top mounts, bushings, hardwareAssembly lead time: 3-7 business days
Rear: 2 x Bilstein 5100 shocks 24-288347

Front Coilover Details

Adjustable lift: ~0 to 2.2″ target range (5100 hardware supports up to ~2.75″ depending on application)
Design: monotube, gas charged, 46 mm digressive piston, snap-ring adjustable spring perch
Mounts: upper stem – lower eye
Lengths: extended 15.31″, compressed 10.94″
Finish: zinc plated, includes dust boots, no external reservoir

Rear Shock Specs – 24-288347

Lift range: for 0-1″ rear lift
Lengths: collapsed 15.94″ – extended 24.61″ (405.0 mm – 625.2 mm)
Body: smooth body, 46 mm ID, zinc plated
Reservoir: no – Damping: non-adjustable
Spring seat included: no

Why You’ll Like It

No spring compressor needed – fronts arrive pre-assembled for a clean, bolt-on install
Consistent control – 46 mm monotube design delivers fade-free damping on and off road
More travel – adjustable perch increases usable suspension travel and helps level stance
OE-style integration – designed to work with OE-format coils and factory hardware interfaces

Fitment

Vehicle: Nissan Titan 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024
Chassis: Non-XD only
Drivetrain: 2WD or 4WD
Heights: front adjustable 0-2.2″; rear shocks sized for 0-1″ rear lift components

Notes

Actual front lift varies with accessories, bumper weight, and spring condition
Alignment required after installation

Feature Summary

46 mm monotube design ensures consistent, fade-free performance
Increases suspension travel and improves handling
Adjustable spring perch design for lifting and leveling
Durable, zinc coated, weather resistant shock bodies
Made in USA – limited lifetime warranty on dampers

Additional information

Weight	50.61 lbs
Dimensions	26 × 12 × 7.5 in
4WD-2WD	2WD , 4WD
Brand	Bilstein
Front-Rear	Full Front and Rear
Make	Nissan
Model	Titan
Product Type	Lift Kit , Shocks
Year	2024 , 2017 , 2018 , 2019 , 2020 , 2021 , 2022 , 2023
Lift	0.25 , 0.5 , 0.6 , 0.75 , 0.87 , 0.9 , 1 , 1.25 , 1.3 , 1.45 , 1.5 , 1.6 , 1.7 , 1.75 , 1.8 , 1.875 , 2 , 2.2
