Bilstein 2.5" 5100 Assembled Coilover Lift Kit for 2010-2022 Toyota 4Runner

Bilstein/OME 2.5″ 5100 Assembled Coilover Lift Kit for 2010-2024 Toyota 4Runner

Q: Will this kit work with X-REAS?

No. This package is not compatible with factory X-REAS systems.

Q: How much lift should I expect?

Front: up to ~2.5 inches depending on coil choice and vehicle weight. Rear: select 0-2 inches via the Bilstein rear spring options.

Q: Do I need an alignment?

Yes—always get a professional alignment after installing suspension components.

Q: Can I move the front snap-ring higher?

Not with lift coils. The shocks ship on the lowest clip because OME coils already add height. Raising the clip with lift coils can over-lift the front and cause issues.

5 out of 5 based on 4 customer ratings

(4 customer reviews)

Original price was: $1,186.99.Current price is: $965.95.

In stock

( ! ) Deprecated: Creation of dynamic property woocommerce_gravityforms_product_form::$previous_page is deprecated in /var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/plugins/woocommerce-gravityforms-product-addons/gravityforms-product-addons-form.php on line 79
Call Stack
#	Time	Memory	Function	Location
1	0.0000	402064	{main}( )	.../index.php:0
2	0.0001	403560	require( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-blog-header.php )	.../index.php:17
3	1.0822	165617944	require_once( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-includes/template-loader.php )	.../wp-blog-header.php:19
4	1.1746	165883400	include( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/single-product.php )	.../template-loader.php:132
5	1.5816	188532344	wc_get_template_part( $slug = 'content', $name = 'single-product' )	.../single-product.php:41
6	1.5817	188532912	load_template( $_template_file = '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/content-single-product.php', $load_once = FALSE, $args = ??? )	.../wc-core-functions.php:285
7	1.5820	188562248	require( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/content-single-product.php )	.../template.php:816
8	1.6433	189019664	do_action( $hook_name = 'woocommerce_single_product_summary' )	.../content-single-product.php:220
9	1.6433	189019880	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
10	1.6433	189019880	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
11	1.6543	189189944	woocommerce_template_single_add_to_cart( '' )	.../class-wp-hook.php:341
12	1.6543	189190000	do_action( $hook_name = 'woocommerce_simple_add_to_cart' )	.../wc-template-functions.php:1923
13	1.6543	189190216	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
14	1.6543	189190216	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
15	1.6543	189190648	woocommerce_simple_add_to_cart( '' )	.../class-wp-hook.php:341
16	1.6543	189190648	wc_get_template( $template_name = 'single-product/add-to-cart/simple.php', $args = ???, $template_path = ???, $default_path = ??? )	.../wc-template-functions.php:1933
17	1.6545	189200904	include( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/plugins/woocommerce/templates/single-product/add-to-cart/simple.php )	.../wc-core-functions.php:346
18	1.6587	189207536	do_action( $hook_name = 'woocommerce_before_add_to_cart_button' )	.../simple.php:33
19	1.6587	189207752	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
20	1.6587	189207752	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
21	1.6587	189208184	WC_GFPA_Main->woocommerce_gravityform( '' )	.../class-wp-hook.php:341
22	1.6626	189263712	woocommerce_gravityforms_product_form->get_form( $options = ['reorder_processing' => 'resubmit', 'reorder_hydrate_defaults' => 'yes', 'use_ajax' => 'no', 'is_ajax' => FALSE, 'show_wc_notices' => 'yes', 'validation_message' => 'There was a problem with your submission. Please review the fields below.', 'id' => '2113', 'bulk_id' => 0, 'display_title' => FALSE, 'display_description' => FALSE, 'disable_woocommerce_price' => 'no', 'price_before' => '', 'price_after' => '', 'disable_calculations' => 'no', 'disable_label_subtotal' => 'yes', 'disable_label_options' => 'yes', 'disable_label_total' => 'no', 'disable_anchor' => 'no', 'label_subtotal' => 'Subtotal', 'label_options' => 'Options', 'label_total' => 'Total', 'enable_cart_edit' => 'no', 'enable_cart_edit_remove' => 'yes', 'keep_cart_entries' => 'no', 'send_notifications' => 'no', 'enable_cart_quantity_management' => 'no', 'cart_quantity_field' => '', 'update_payment_details' => 'no', 'display_totals_location' => 'after', 'structured_data_override' => 'no', 'structured_data_low_price' => '', 'structured_data_high_price' => '', 'structured_data_override_type' => 'append'] )	.../gravityforms-product-addons-main.php:178

Subtotal
Options
Total

Add to compare

Add to wishlist

SKU: BIL4R10K Category: Lift Kits

Description

Bilstein 5100 2.5″ Coilover Lift Kit — 2010-2024 Toyota 4Runner (5th Gen)

Part #: BIL4R10K

Unlock confident control on-road and composed performance off-road with the legendary Bilstein 5100 series. This kit pairs height-adjustable Bilstein 5100 front shocks (assembled with your choice of Old Man Emu (OME) coils) and matched 5100 rears to deliver up to ~2.5″ of front lift, improved body control, and that planted, predictable Bilstein feel your 4Runner deserves.

Monotube performance: 46 mm digressive piston keeps damping consistent over washboards, potholes, and highway expansion joints.
Ride height tuning: Front 5100 shocks feature snap-ring grooves for lift adjustment (pre-set on the lowest clip to work correctly with OME lift coils).
Fade-free control: High-pressure nitrogen and large oil volume resist heat buildup under repeated hits.
Durable finish: Corrosion-resistant zinc plating stands up to real-world weather.
Daily-driver friendly: Taut, controlled handling without the harshness—ideal for commuting, camping, towing, and trail days.

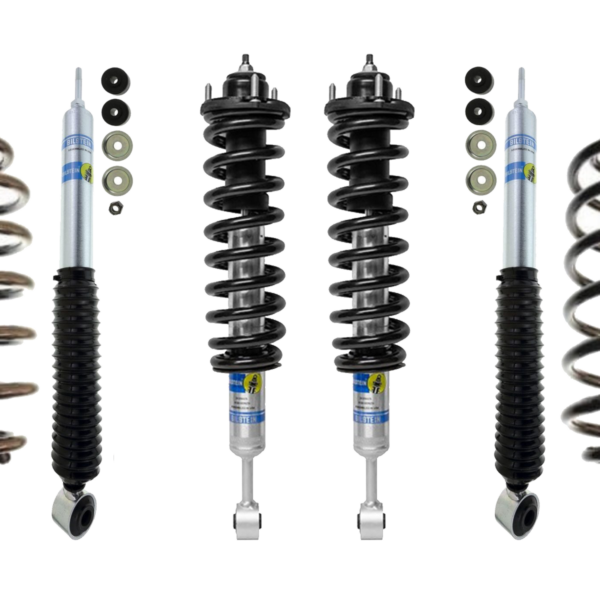

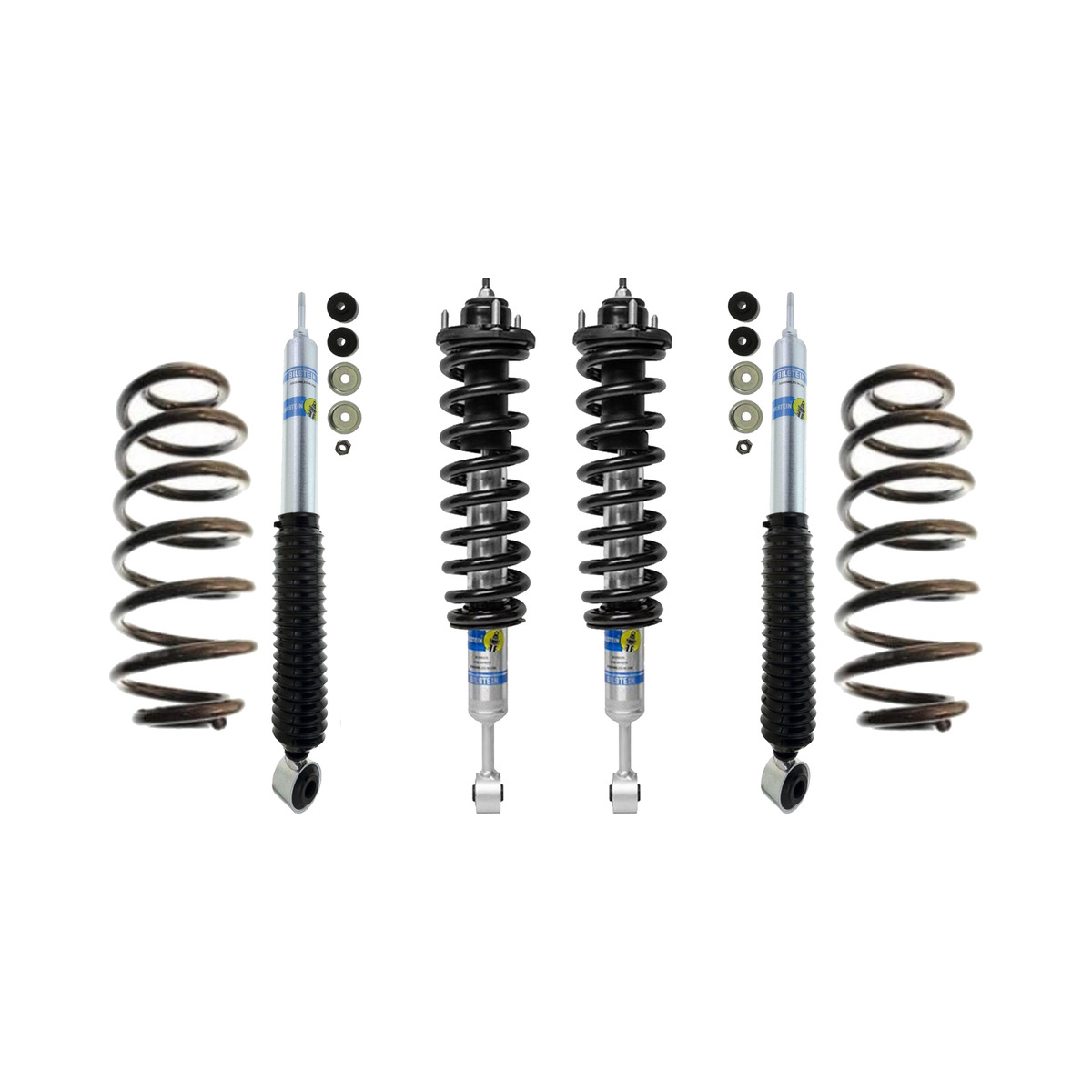

What’s Included

Front: (2) Bilstein 5100 height-adjustable shocks 24-328258 (supersedes 24-196499), assembled with OME front coils (select spring option from the dropdown).
Rear: (2) Bilstein 5100 shocks 33-313146, compatible with 0-2″ rear lift. Set of rear lifted coil springs.
All components as shown in product photos.

Assembly note: We ship the front shocks on the lowest snap-ring setting because the OME coils already add lift. Raising the clip with lift coils can over-lift the front and may cause suspension issues.

Fitment

Vehicle: Toyota 4Runner 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 (5th Gen)
Excludes: Vehicles equipped with X-REAS suspension

Rear Coil Spring Options (Bilstein Brand)

36-281817

4Runner 2WD: ~1.5″ rear lift
4Runner 4WD: ~1″ rear lift
Best for: light load / daily use

36-281824

4Runner 2WD: ~2″ rear lift
4Runner 4WD: ~1.5″ rear lift
Best for: mild added gear / occasional towing

36-281831 — Heavy Load (≈400 lb constant)

4Runner 2WD: ~2″ rear lift
4Runner 4WD: ~1.5″ rear lift
Best for: drawer systems, steel bumpers, tire carriers

Key Specs

Front 5100 — 24-328258 (old: 24-196499)

Extended length: 22.48″
Compressed length: 17.58″
Height adjustable via snap-ring grooves (pre-set to lowest)

Rear 5100 — 33-313146 (0-2″ lift)

Extended length: 23.50″
Compressed length: 14.91″
Monotube piston diameter: ≈46 mm (1.81″)
Upper mount: Stem | Lower mount: Eyelet

Choosing Your Front OME Coils

Pick the front spring rate from the dropdown to match your build. As a rule of thumb:

Stock weight / light accessories: standard-rate OME coils for best ride height and comfort.
Medium load (aluminium skids, occasional gear): medium-rate coils maintain height without harshness.
Heavy load (steel bumper, winch, constant gear): heavy-rate coils keep proper rake and prevent sagging.

Ride, Handling & Tire Fitment

The 5100’s digressive valving firms up initial body motion for flatter cornering and better braking stability, while opening on big hits to avoid harshness. With ~2-2.5″ front lift and 0-2″ rear, many 5th-gen 4Runners run up to 275/70R17 with proper wheel specs; trimming and caster settings vary by wheel offset and tire brand.

Installation Notes

Alignment required after any suspension lift.
Torque all hardware at ride height.
Do not raise the front snap-ring when using lift coils; over-lifting can harm suspension geometry and CVs.

Why Bilstein 5100?

Proven worldwide: A go-to upgrade for trucks and SUVs for two decades.
Confidence in the rough: Controlled damping keeps the truck composed on washboard and fire roads.
OEM-grade durability: Long service life with readily available replacements.

FAQs

Will this kit work with X-REAS?

No. This package is not compatible with factory X-REAS systems. You can probably still install it, but XREAS will be removed.

How much lift should I expect?

Front: up to ~2.5″ depending on coil choice and vehicle weight. Rear: select 0-2″ via the Bilstein rear spring options above.

Do I need an alignment?

Yes—always get a professional alignment after installing suspension components.

Can I move the front snap-ring higher?

Not with lift coils. The shocks ship on the lowest clip because OME coils already add height. Raising the clip with lift coils can over-lift the front and cause issues.

Additional information

Weight	41.8 lbs
Dimensions	24 × 10.01 × 5.5 in
4WD-2WD	2WD , 4WD
Brand	Bilstein
Front-Rear	Full Front and Rear
Lift	2.5
Make	Toyota
Model	4Runner
Product Type	Lift Kit
Year	2024 , 2010 , 2011 , 2012 , 2013 , 2014 , 2015 , 2016 , 2017 , 2018 , 2019 , 2020 , 2021 , 2022 , 2023
