Bilstein 0-2.5" Lift Kit With Rear Coils For 2010-2014 Toyota FJ Cruiser

Bilstein 0-2.5" Lift Kit With Rear Coils For 2010-2014 Toyota FJ Cruiser - Image 2

Click to enlarge

Bilstein 0-2.5″ Lift Kit With Rear Coils For 2010-2014 Toyota FJ Cruiser

Name: Bilstein 0-2.5" Lift Kit With Rear Coils For 2010-2014 Toyota FJ Cruiser
Brand: Bilstein
SKU: 24-328258_33-187174+Rr-Coils_Fj
Availability: InStock
Rating: 5.00 (1 reviews)

5 out of 5 based on 1 customer rating

(1 customer review)

Original price was: $760.00.Current price is: $679.99.

In stock

( ! ) Deprecated: Creation of dynamic property woocommerce_gravityforms_product_form::$previous_page is deprecated in /var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/plugins/woocommerce-gravityforms-product-addons/gravityforms-product-addons-form.php on line 79
Call Stack
#	Time	Memory	Function	Location
1	0.0001	402192	{main}( )	.../index.php:0
2	0.0001	403688	require( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-blog-header.php )	.../index.php:17
3	1.4743	165626312	require_once( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-includes/template-loader.php )	.../wp-blog-header.php:19
4	1.5535	165898536	include( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/single-product.php )	.../template-loader.php:132
5	2.0879	188494248	wc_get_template_part( $slug = 'content', $name = 'single-product' )	.../single-product.php:41
6	2.0880	188494816	load_template( $_template_file = '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/content-single-product.php', $load_once = FALSE, $args = ??? )	.../wc-core-functions.php:285
7	2.0882	188524152	require( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/content-single-product.php )	.../template.php:816
8	2.1868	189052808	do_action( $hook_name = 'woocommerce_single_product_summary' )	.../content-single-product.php:220
9	2.1868	189053024	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
10	2.1868	189053024	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
11	2.2016	189232144	woocommerce_template_single_add_to_cart( '' )	.../class-wp-hook.php:341
12	2.2016	189232200	do_action( $hook_name = 'woocommerce_simple_add_to_cart' )	.../wc-template-functions.php:1923
13	2.2016	189232416	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
14	2.2016	189232416	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
15	2.2016	189232848	woocommerce_simple_add_to_cart( '' )	.../class-wp-hook.php:341
16	2.2016	189232848	wc_get_template( $template_name = 'single-product/add-to-cart/simple.php', $args = ???, $template_path = ???, $default_path = ??? )	.../wc-template-functions.php:1933
17	2.2019	189243104	include( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/plugins/woocommerce/templates/single-product/add-to-cart/simple.php )	.../wc-core-functions.php:346
18	2.2064	189249736	do_action( $hook_name = 'woocommerce_before_add_to_cart_button' )	.../simple.php:33
19	2.2064	189249952	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
20	2.2065	189249952	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
21	2.2065	189250384	WC_GFPA_Main->woocommerce_gravityform( '' )	.../class-wp-hook.php:341
22	2.2128	189306320	woocommerce_gravityforms_product_form->get_form( $options = ['reorder_processing' => 'resubmit', 'reorder_hydrate_defaults' => 'yes', 'use_ajax' => 'no', 'is_ajax' => FALSE, 'show_wc_notices' => 'yes', 'validation_message' => 'There was a problem with your submission. Please review the fields below.', 'id' => '447', 'bulk_id' => 0, 'display_title' => FALSE, 'display_description' => FALSE, 'disable_woocommerce_price' => 'no', 'price_before' => '', 'price_after' => '', 'disable_calculations' => 'no', 'disable_label_subtotal' => 'yes', 'disable_label_options' => 'yes', 'disable_label_total' => 'no', 'disable_anchor' => 'no', 'label_subtotal' => 'Subtotal', 'label_options' => 'Options', 'label_total' => 'Total', 'enable_cart_edit' => 'no', 'enable_cart_edit_remove' => 'yes', 'keep_cart_entries' => 'no', 'send_notifications' => 'no', 'enable_cart_quantity_management' => 'no', 'cart_quantity_field' => '', 'update_payment_details' => 'no', 'display_totals_location' => 'after', 'structured_data_override' => 'no', 'structured_data_low_price' => '', 'structured_data_high_price' => '', 'structured_data_override_type' => 'append'] )	.../gravityforms-product-addons-main.php:178

Rear Coil Springs:*

Subtotal
Options
Total

Add to compare

Add to wishlist

SKU: 24-328258_33-187174+Rr-Coils_Fj Categories: Lift Kits, Shocks, Toyota FJ Cruiser 2010-2014

Description

Bilstein 0-2.5″ Lift Kit With Rear Coils For 2010, 2011, 2012, 2013, 2014 Toyota FJ Cruiser

Part: 24-328258_33-187174+Rr-Coils_Fj

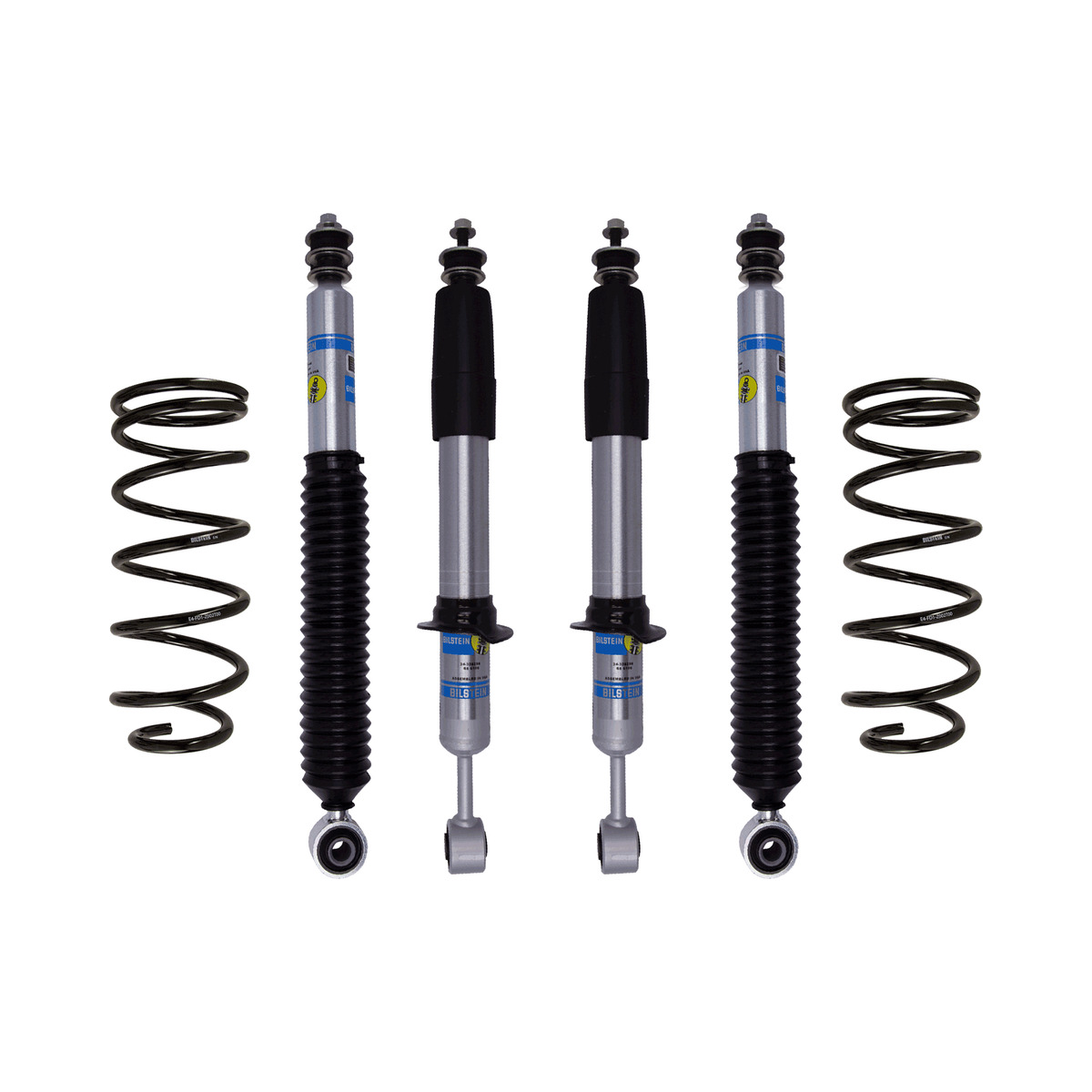

The Bilstein 0-2.5″ Lift Kit with Rear Coils is the perfect solution for your 2010-2014 Toyota FJ Cruiser. This kit includes height adjustable 5100 shocks for the front (24-328258) and rear (33-313146) of your vehicle.

Bilstein 5100 Shocks:

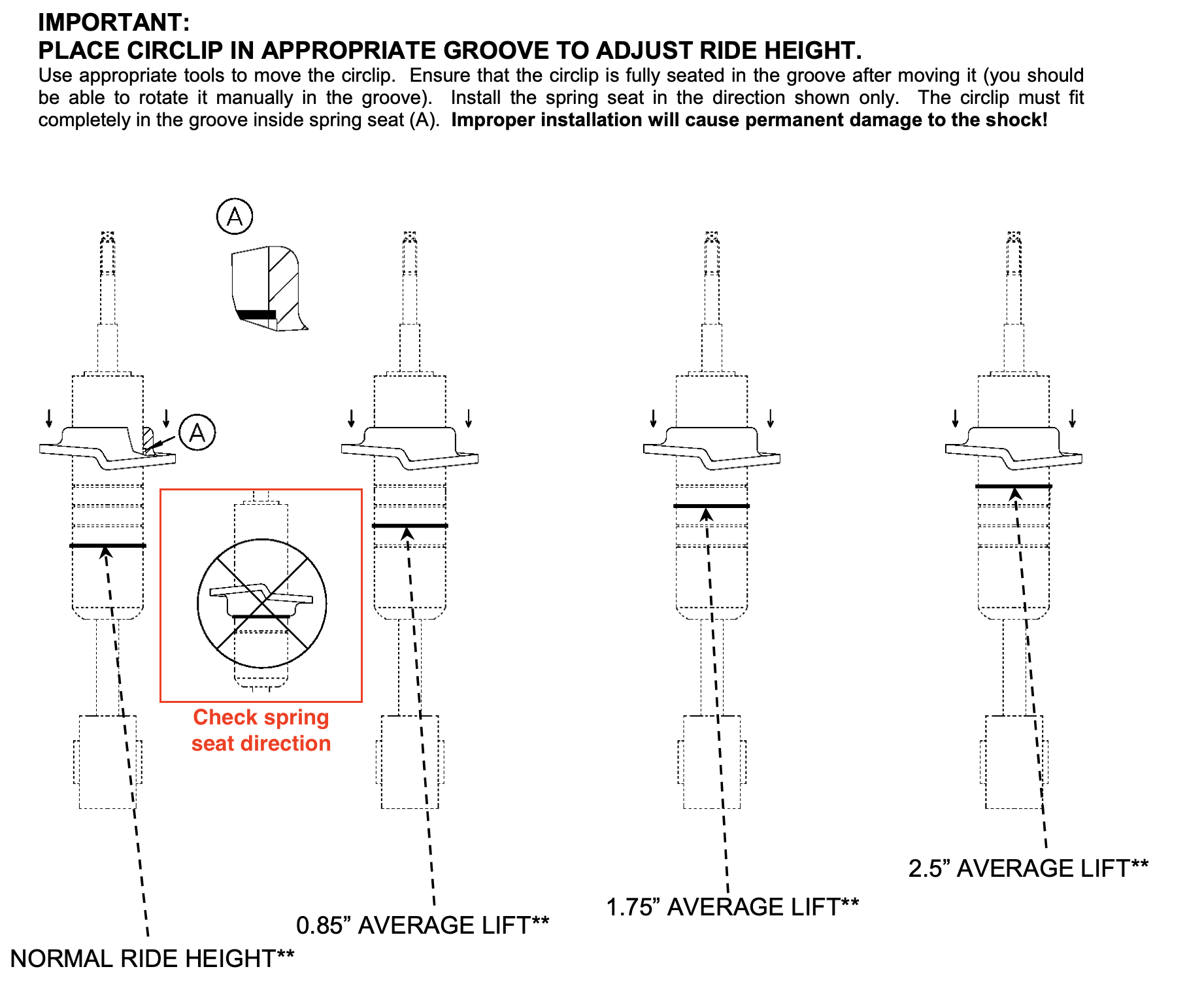

The Bilstein 5100 shocks are height adjustable and provide a lift range of 0-2.5″ for the front of your vehicle, and 0-2″ for the rear. These shocks are engineered to provide superior handling, stability, and comfort, even under heavy loads or off-road conditions. The 5100 series shocks are made with the highest quality materials and are rigorously tested to ensure durability and long-lasting performance.

Front Shocks:

Part Number: 24-328258
Height Adjustable: 0-2.5″ Lift
Extended Length: 22.48 Inch
Compressed Length: 17.58 Inch

Rear Shocks:

Part Number: 33-313146
Height Adjustable: 0-2″ Lift
Extended Length: 23-1/2 Inch
Compressed Length: 14.91 Inch
Rod Diameter: 1.81 Inch
Upper Mounting Style: Stem
Lower Mounting Style: Eyelet

Rear Coil Springs:

The rear coils are available in three options to best suit your needs:

Rear Coil Springs 36-281817:

FJ Cruiser 2WD: Rear Lift Height: 1.7″
FJ Cruiser 4WD: Rear Lift Height: 0.9″

Rear Coil Springs 36-281824:

FJ Cruiser 2WD: Rear Lift Height: 2.4″
FJ Cruiser 4WD: Rear Lift Height: 1.5″

Rear Coil Springs Heavy Load Package 400 Pound Constant Weight 36-281831:

FJ Cruiser 2WD: Rear Lift Height: 2.3″
FJ Cruiser 4WD: Rear Lift Height: 1.45″

Note: This kit does not include X-REAS Suspension and the front lift is achieved by the adjustment of the front shocks. The stock front coils must be reused. The kit includes shocks exactly as pictured.

Additional information

Weight	50 lbs
Dimensions	30 × 12 × 10 in
4WD-2WD	2WD , 4WD
Front-Rear	Full Front and Rear
Brand	Bilstein
Make	Toyota
Model	FJ Cruiser
Product Type	Lift Kit , Shocks
Year	2010 , 2011 , 2012 , 2013 , 2014
Lift	0.25 , 0.5 , 0.6 , 0.75 , 0.87 , 0.9 , 1 , 1.25 , 1.3 , 1.45 , 1.5 , 1.6 , 1.7 , 1.75 , 1.8 , 1.875 , 2 , 2.2 , 2.25 , 2.28 , 2.3 , 2.4 , 2.5
