Bilstein 6112 1-3″ Front Lift Coilovers and 5160 Rear 0-2″ Lift Kit for 2008-2021 Toyota Land Cruiser 200

Bilstein 6112 1-3″ Front Lift Coilovers + 5160 0-2″ Rear Shocks Kit – 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021 Toyota Land Cruiser 200

Part: 47-311145_25-311402_25-311419-ASB (old part 47-273146)

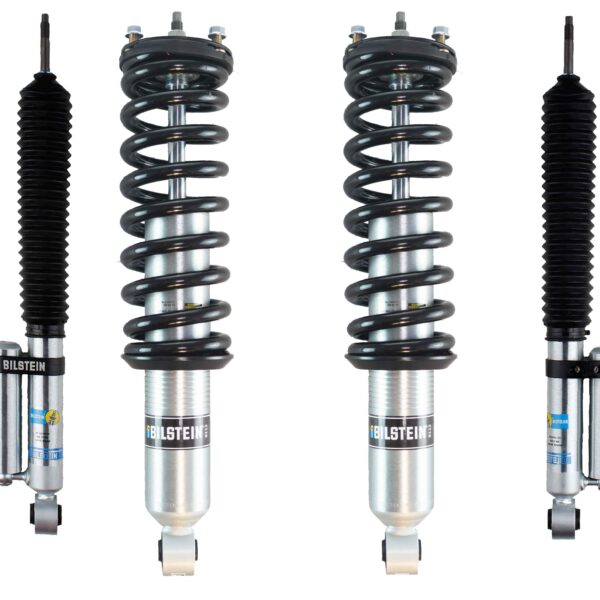

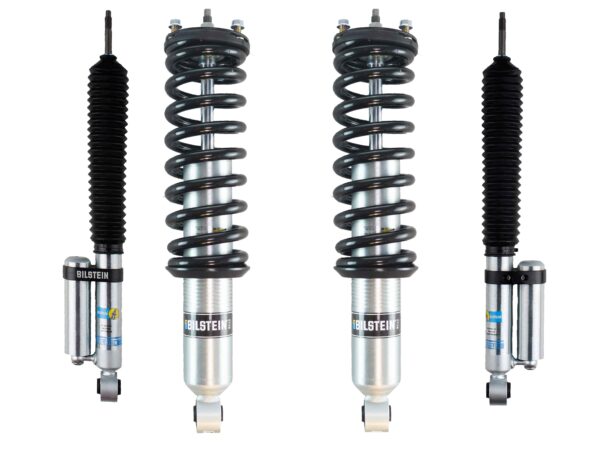

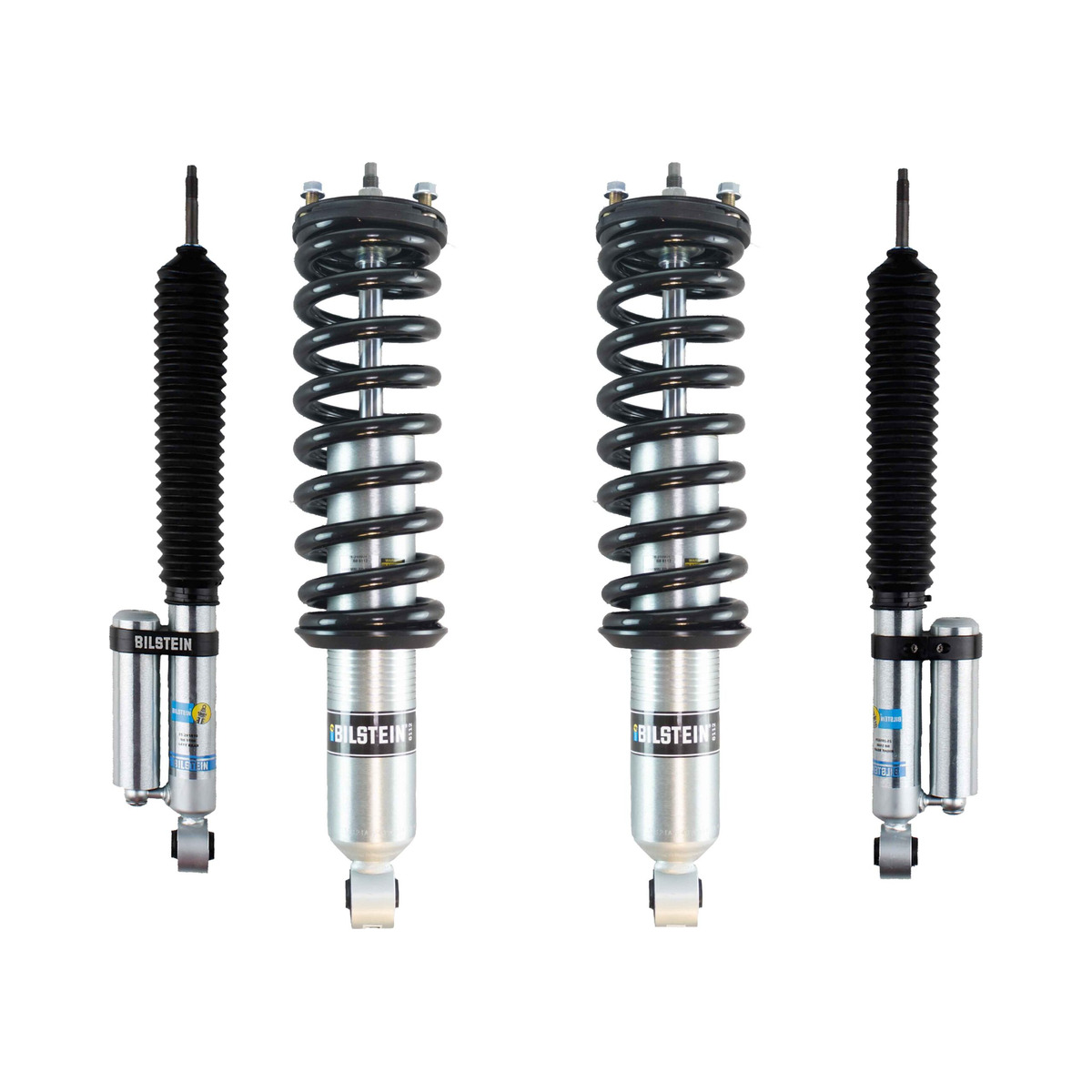

Give your LC200 a controlled, compliant ride with more front ground clearance and better heat capacity out back. This package pairs pre-assembled Bilstein 6112 front coilovers with Bilstein 5160 remote reservoir rear shocks to deliver adjustable 1-3″ front lift and support for 0-2″ rear lift components. The 6112 uses Bilstein’s large 60 mm piston and matched coil springs for on-road stability and off-road control, while the 5160’s remote reservoirs boost oil volume and cooling for consistent damping on corrugations and trails.

What’s Included

• Front 1-3″ Lift (assembled): Bilstein 6112 kit 47-311145 with 60 mm struts, matched coil springs, and billet spring seats – assembled as complete coilover units for a no spring-compressor install
• Rear 0-2″ Lift: Bilstein 5160 remote reservoir shocks 25-311402 and 25-311419
• All required perch hardware as supplied by Bilstein for the 6112 kit

Front 6112 Highlights

• Adjustable 1-3″ front lift – snap-ring grooves set spring seat height to match your target stance
• 60 mm digressive piston – increased damping control and wheel travel for mixed use
• Matched coils – custom cold-wound springs tuned for the LC200 platform
• Finish – zinc plated dampers, black springs
• Body – snap ring grooved coilover, 60 mm body diameter

Rear 5160 Highlights

• Remote reservoir – added oil volume and cooling for fade-resistant performance
• 360° swivel banjo fitting – clean hose routing and easy install
• Monotube, digressive valving – tuned specifically for LC200 ride control
• Body – 46 mm smooth-body shock, zinc plated
• Travel – collapsed 14.61 in (371.0 mm), extended 24.17 in (614.0 mm)

Fitment

• Vehicle – Toyota Land Cruiser 200 Series 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021
• Front lift range – adjustable 1-3″ via snap-ring perch positions
• Rear lift support – shocks sized and valved for 0-2″ rear lift components; rear shocks do not add lift by themselves
• Aftermarket upper arms – not required for the stated range

Why You’ll Like It

• Pre-assembled fronts – faster, safer install without a spring compressor
• Bigger piston, bigger control – 60 mm 6112 fronts soak up chop and keep steering precise
• Heat management – 5160 remote reservoirs resist fade on long, rough sections
• Daily comfort, expedition ready – tuned balance for highway, towing, and off-road travel

Technical Notes

• Front body design – snap ring grooved coilover, zinc plated
• Rear body design – smooth-body monotube with remote reservoir
• Alignment is required after installation
• Tire clearance depends on wheel specs and alignment settings – verify after install

FAQ

Do the front coilovers come assembled? Yes. We ship the 6112 fronts as complete coilover units so you can bolt them in without compressing springs.

Will the rear shocks lift the truck? No. The 5160s are matched to rear springs or lift components up to 2″. They do not add lift on their own.

Do I need aftermarket upper control arms? Not for the stated 1-3″ front range. Consider them if you plan more caster or additional front lift beyond this range.
