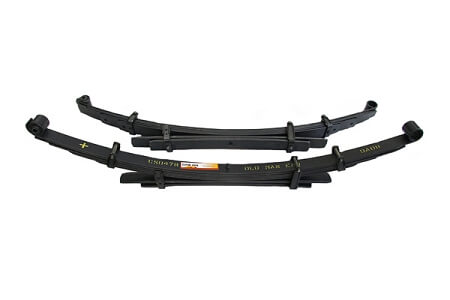

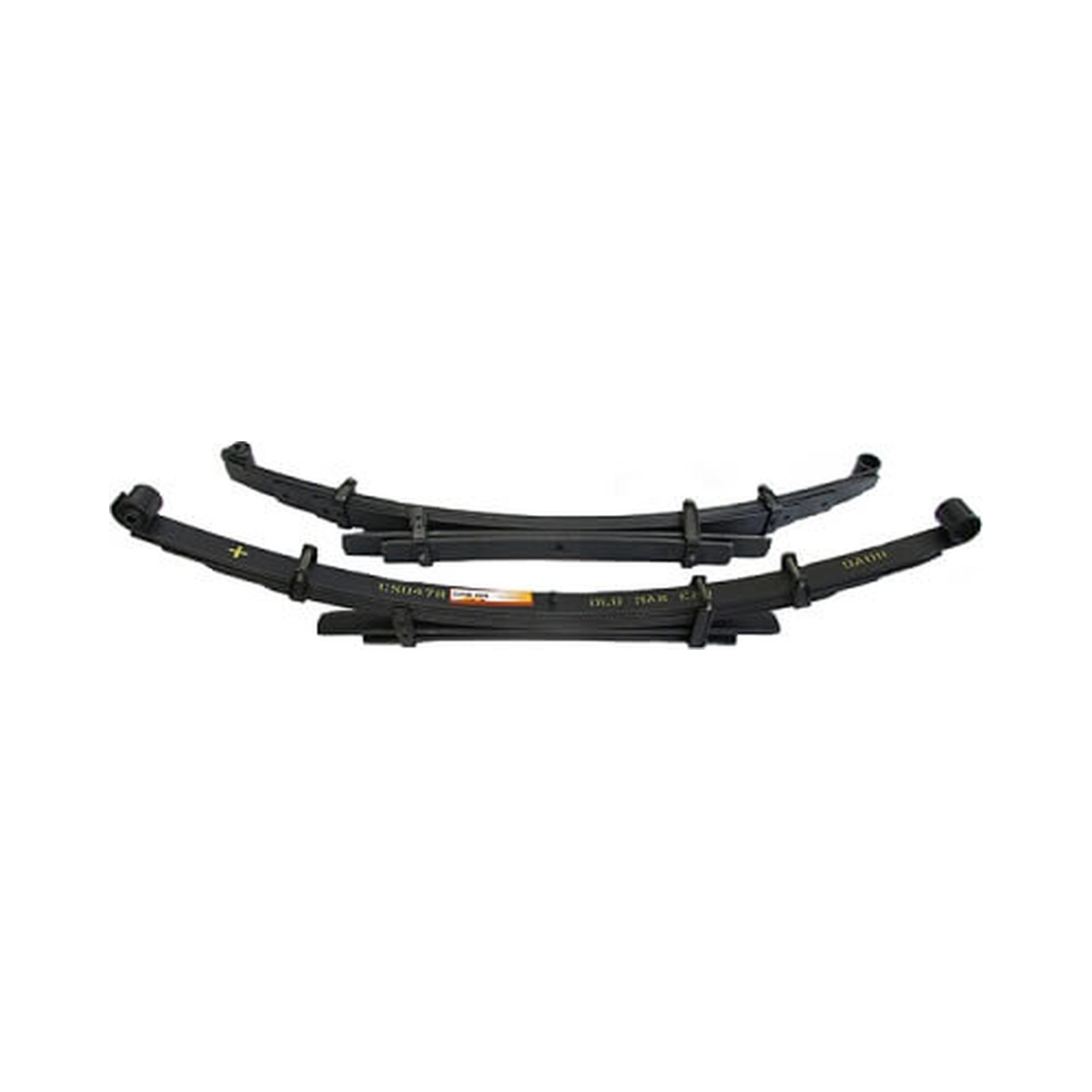

OME 2.5″ Rear Lift Dakar Springs for 2007-2021 Toyota Tundra

OME 2.5″ Rear Lift Dakar Springs for 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021 Toyota Tundra

Part: CS055R

OME Dakar leaf springs feature:

• Draw Tapered & Diamond Cut Leaves: Ensure the load is progressively distributed over a larger surface area, reducing the high stresses that develop at leaf ends. This provides increased ride quality and protection against leaf breakage, significantly increasing the spring life.
• Bolt Clamps & Liners: The leaf clamps are bolted to allow installation of anti squeak nylon liners.
• Fully Scragged & Load Tested: Scragging ensures the spring takes a permanent ‘set’ which reduces the risk of sagging. Load testing ensures the spring meets the required specification.
• Graphite Coating: To further reduce the friction between the spring leaves & friction pads.
• Military Wrap: Designed to provide added safety.
• Anti Friction Pads: Regreasable nylon interleaf liners reduce friction at the leaf tips where the load is the greatest.
• Flat Axle Seat Area: Allows a positive, safe axle mount reducing spring stress & increasing spring life.
• Shot Peening: The tension side of all leaves is shot peened to reduce spring stress. This process can double the life of a spring.
• Two-stage Leaf Pack: Featured on most rear springs for optimum comfort. When unladen the vehicle is largely riding on the primary stage, with the secondary stage providing additional support when a heavy load is added.
• Old Man Emu Dakar rear springs provide approximately 2.5″ of lift.
• Sold as a pair.
• Bushings included

• Requires longer rear U-bolts, not included.  9″ U-bolts recommended.  ARB Old Man Emu Rear U Bolts for Toyota Models (4 Ubolts)
• Recommend FK32 Brake line fit kit. OME Brake Line and ABS Wire Bracket Relocation Kit for 2007-2021 Toyota Tundra
• Recommended ARB shocks:
• TRD models with rear swaybars may require longer links to retain swaybar operation
